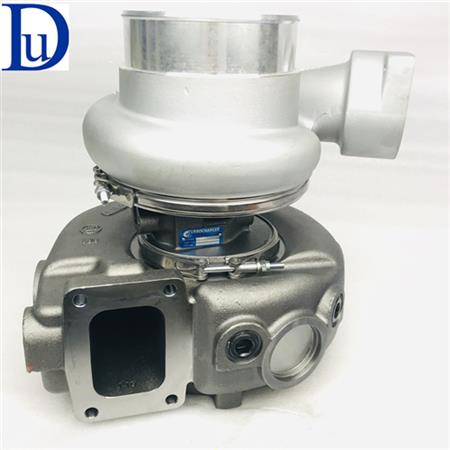

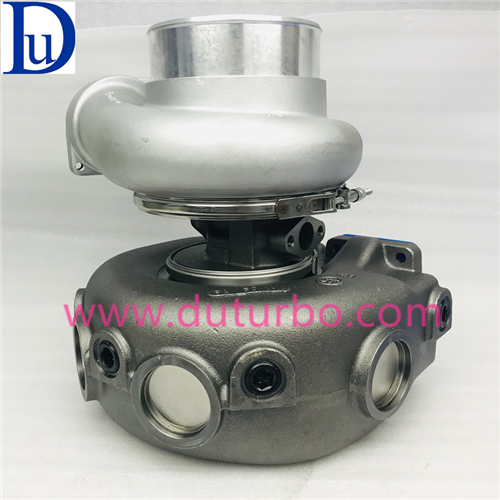

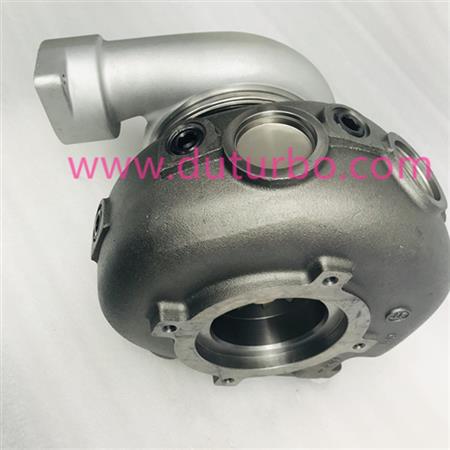

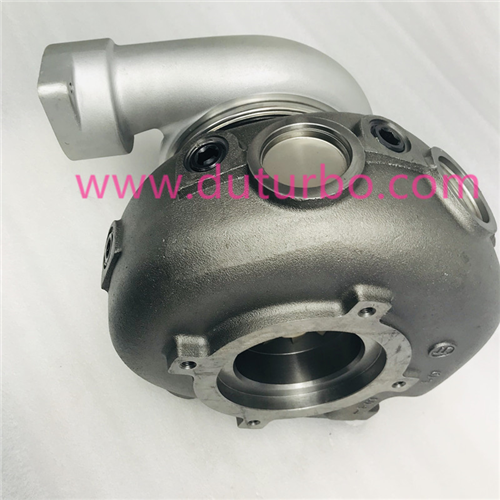

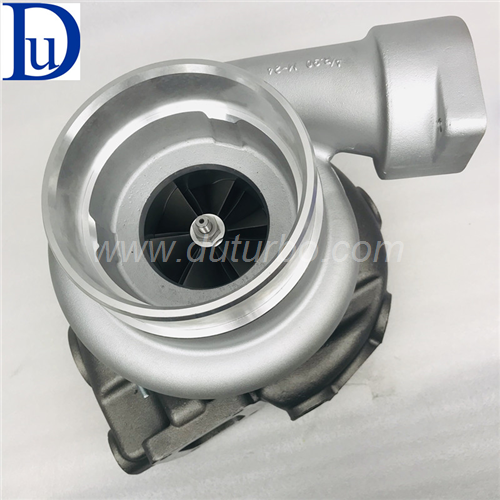

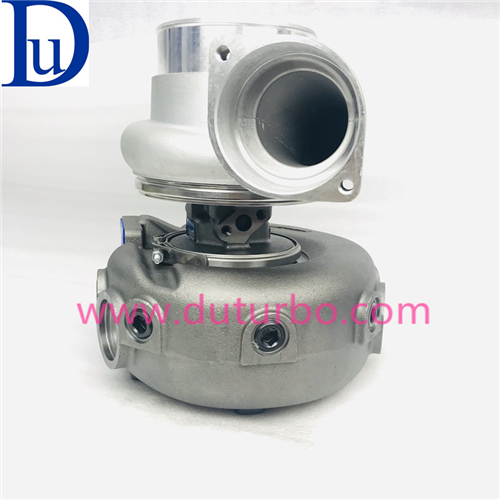

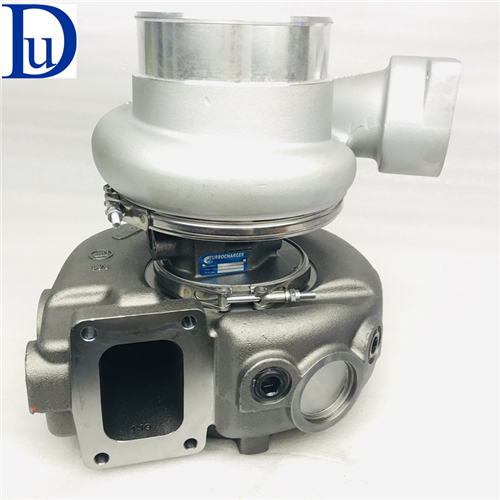

TW8107 Turbo 465052-5003S 465052-0003 7W4866 7W-4866 engine turbocharger for Caterpillar marine 3406B 3508 3412 Engine

TW8107 Turbo 465052-5003S
OE number 7W4866 7W-4866
Related numbers 100-5866 0R6601 9Y9337
Industrial Engine SR4
Application Marine Gen Set
Displacement 18.L 18000 ccm 8V Cylinders
Marine Engine 3406C 3406B 3406C
Repair Kit 468100-0000
MOQ: 1PCS
Mnaufacture: booshiwheel
package:wooden boxes

Product Detail

TW8107 Turbo 465052-0003 7W4866 7W-4866 engine turbocharger for Caterpillar marine 3406B 3508 3412 Engine

Product Description

Part Number	465052-5003S
Previous Part Number	465052-0003, 465052-9003, 465052-3
OE number	7W4866, 7W-4866
Description	Industrial Engine Earth Moving
CHRA	408742-0007 (408742-5007S, 408742-9007S, 6N8651, 0R5911, 6N7966)(1101081704) $800.00 NEW IN STOCK, MADE IN USA
Turbo Model	TW8107
Engine	3412
Displacement	27000 ccm, V12 Cylinders
Fuel	Diesel
Generator	SR4
Industrial Engine	G3412, SR4
S/N	7DB1-UP
Bearing Housing	408495-0028 (408742-9007, 6N7966, 9N2035)(408495-0010, 160025-0000)(Oil Cooled)(1101672450) $126.83 NEW IN STOCK
Turbine Wheel	408492-0017 (408492-0014, 408492-0021, 408492-0028, 180011-0000)(9N2043, 0R5395)(Ind. 111.40 mm, Exd. 97.10 mm, 11 Blades)(1101081435) $197.08 NEW IN STOCK
Comp. Wheel	409132-0002 (6N7967)(444827-0002, 180017-0000)(Ind. 85.34 mm, Exd. 107.95 mm, 6+6 Blades, Superback)(1101881400) $175.00 NEW IN STOCK
Back plate	408487-0013 (6N7962)(180043-0000)(1101680360) $135.20 NEW IN STOCK
Heat shield Number	407657-0004 (409794-0000, 180021-0000, 180121-0000)(9N2037, 9N3701)(Cast)(1101680340) $47.00 NEW IN STOCK
Repair Kit	468103-0000 (468173-0000, 312325, 3545824, 2W0715, 188400-0000)(1101280750) $97.20 NEW IN STOC
Turbine Housing (Water Cooled)	409133-0105
Compressor Cover	409168-0074 (6N7944) $453.73
Turbine Housing AR	1.19
Turbine Housing (Plugs)	400660-0010 (400660-0018, 400623-0000) $25.00
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749)(R520685) $14.02
Gasket oil inlet	210019 (409266-0004, 129119, 3819900, 9737, 1S6595, 210019-0000, 201049, 409266-0003)(1900000035) $4.38
Gasket (oil outlet)	210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
NOTE	FOR USE WITH 1500,1600,1800 RPM TA ENGINES

Application

Caterpillar Earth Moving with 3412 Engine
