  3. Scania DC12 HX55 4038616 4038613 turbo CHRA Cartridge 4031341 4031341H
  • Scania DC12 turbocharger cartridge CORE HX55 4031341

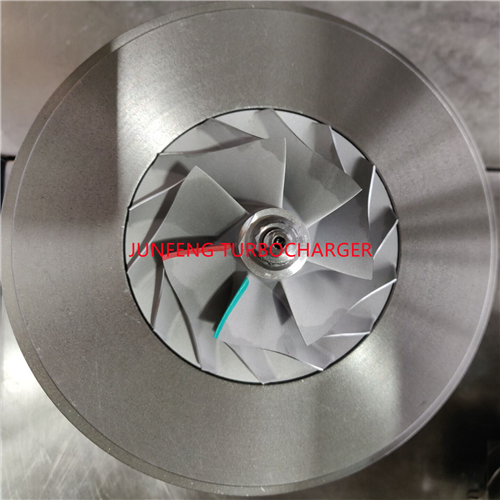

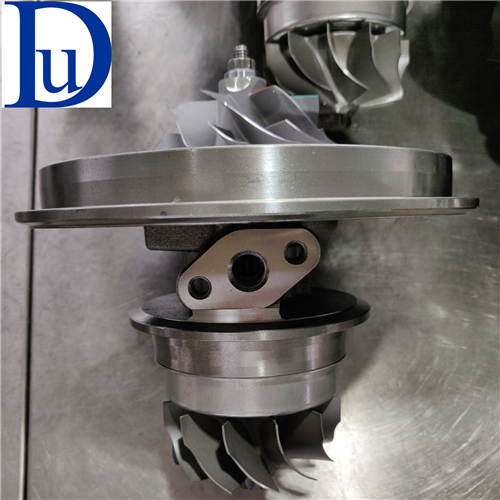

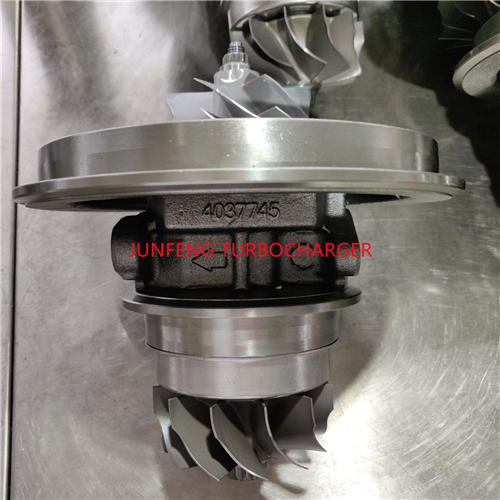

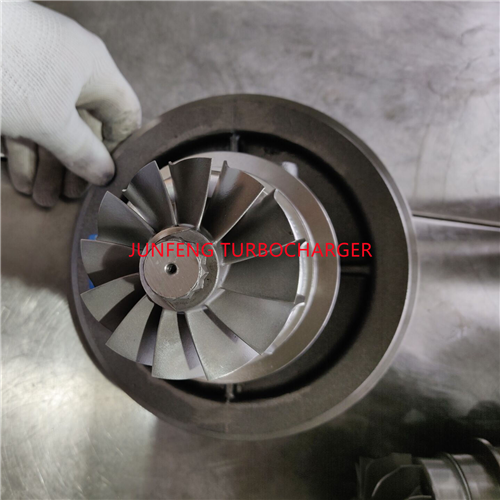

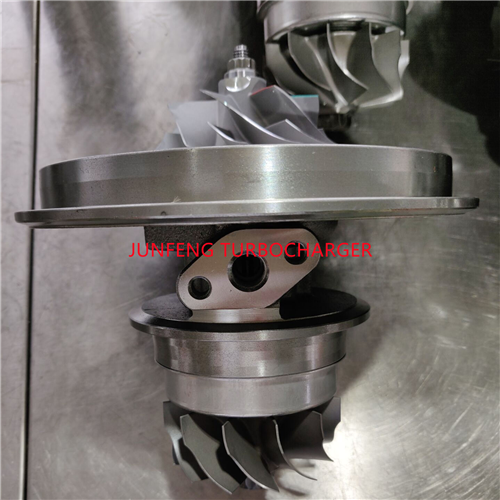

Scania DC12 HX55 4038616 4038613 turbo CHRA Cartridge 4031341 4031341H

  • 4031341
  • Model : HX55
  • part number : 4031341 (4031341H)
  • OEM: 3594236, 3594238, 3594239, 3597728, 3597729, 3597730, 4031122
  • ENGINE: DC12 01/03/06, DC12-01, DC12-03, DC12-06, DC12-09, DC12-14
  • MOQ: 10PCS
  • condition: brand new
  • Fuel: diesel
  • TURBO PART NUMBER: 4038613, 4044950D, 4044951, 4038617, 4038616D
  • Manufacturer : booshiwheel
  • Application: Turbocharger For Truck Bus, 124 Coach, Transit Bus, Truck (Class 3-8) Scania DC12

Product Detail

Product Description


Part Number 4031341
Turbo Model HX55
MOQ 10CS
Manufacturer booshiwheel
Condition NEW IN STOCK



Angle α (compressor housing) 177º
Angle β (turbine housing) 165º
Bearing Housing 4031479 (4038183)(Oil Cooled)(1900011276)
Turbine Wheel 3533543 (4038182)(Ind. 85.95 mm, Exd. 80.01 mm, Trm 12.92, 12 Blades)(1153055435, 1100016168)
Comp. Wheel 3593686 (Ind. 67. mm, Exd. 97.68 mm, Trm 6.3, 7+7 Blades, Superback)(1200016360)
Back plate 3528096 (1153055300, 1800016024)
Heat shield Number 3533038 (3529846)(1153055340, 2030016003)

Applications

Application : Various

 HX55 Turbo:

4038613, 4044950D, 4044951, 4038617, 4038616D
