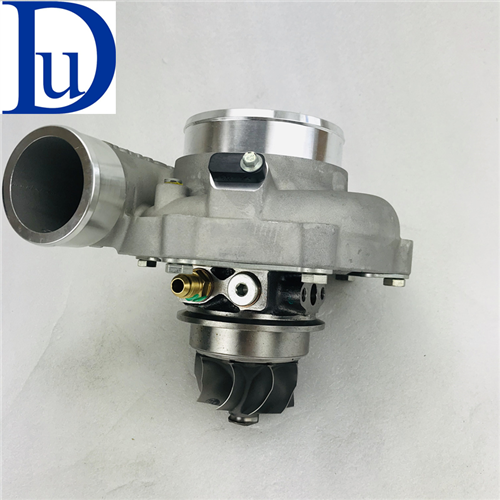

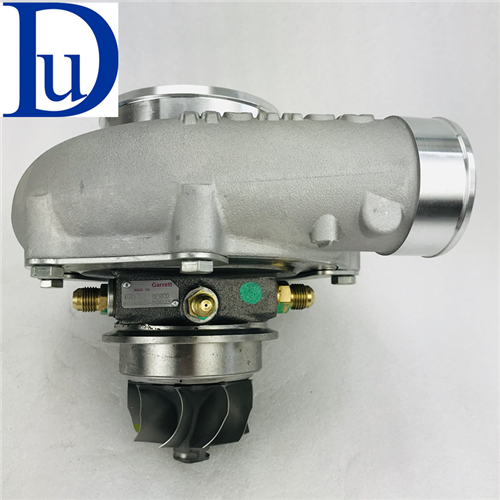

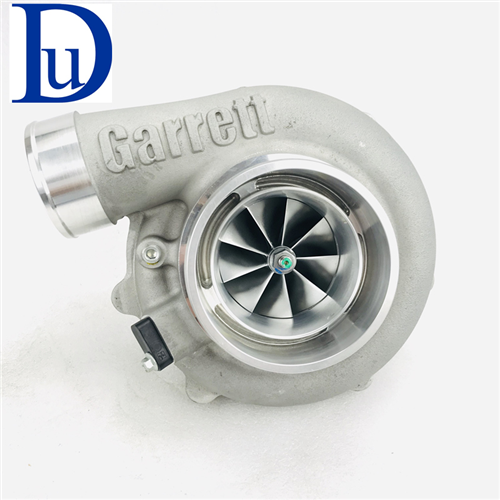

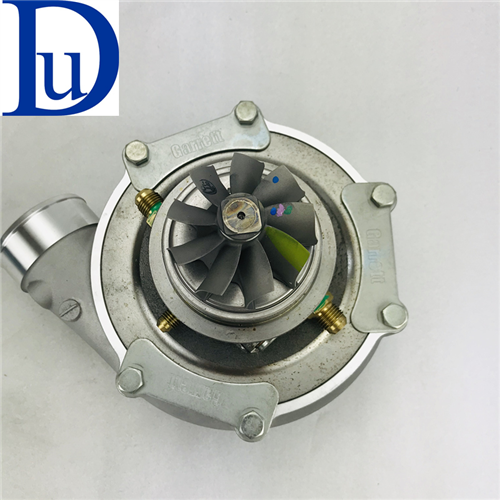

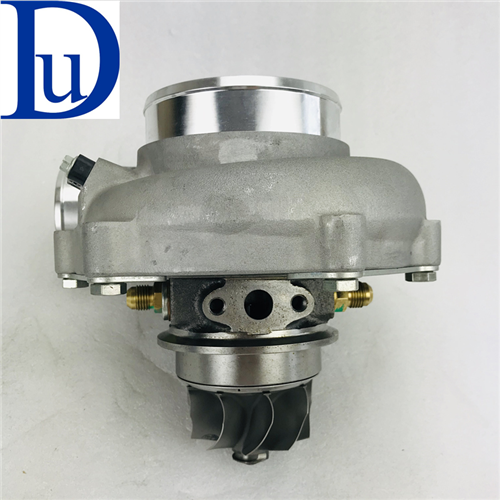

G35 Garrett 880696-5002S G35-1050 REVERSE Rotation Super core

Product Detail

Product Specifications:

• • Horsepower: 700 - 1050HP
    Displacement: 2.5 - 5.5L
  • Garrett® G Series Compressor Aerodynamics for maximum HP.
  • Fully machined Speed Sensor and pressure ports.
  • New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
  • Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
  • Oil restrictor and water fittings included.
  • Reverse rotation.
  • Compressor side: TRIM 65 A/R 0.75
  • Compressor Air Inlet: Hose 4.00" (101.60mm)
  • Compressor Air Outlet: Hose 2.00" (51.15mm)
  • Bearing housing: Water and Oil cooled system.
  • Product Description:
  • Garrett® G35-1050 REVERSE Rotation Supercore (Turbo without turbine housing).
  •


    Product Features:
  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Product Specifications:
  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed fitting with .035" restrictor: ATP-OIL-021
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • Oil drain fasteners: Product Code: MIA-FST-034
  • Boost Pressure Port Fitting: ATP-FTG-198

  NOTE: Alternate coolant and oil fittings and flanges are available.
