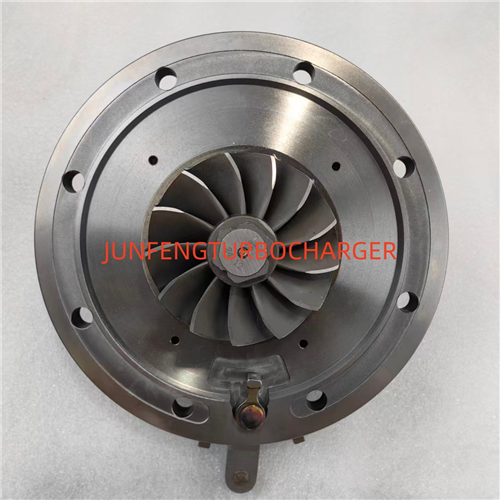

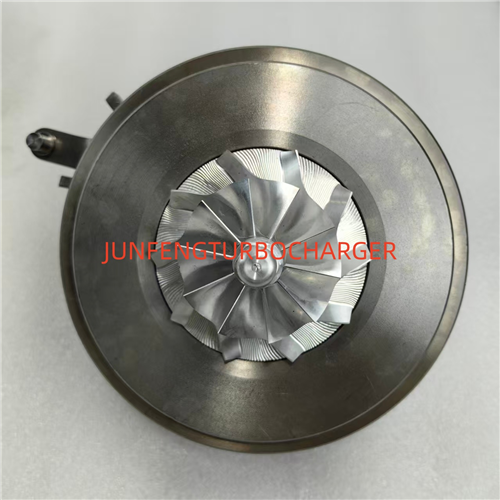

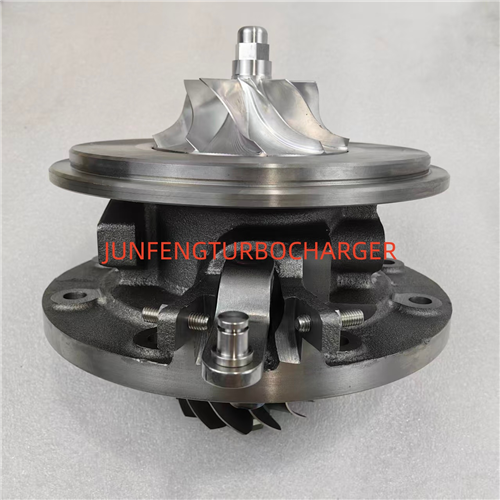

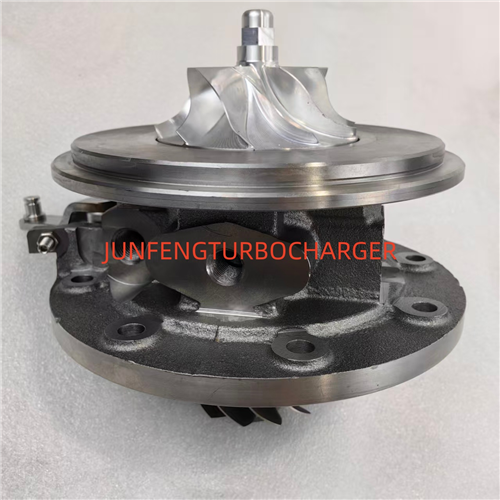

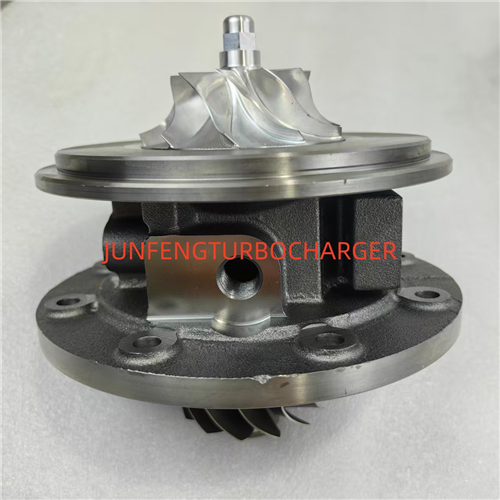

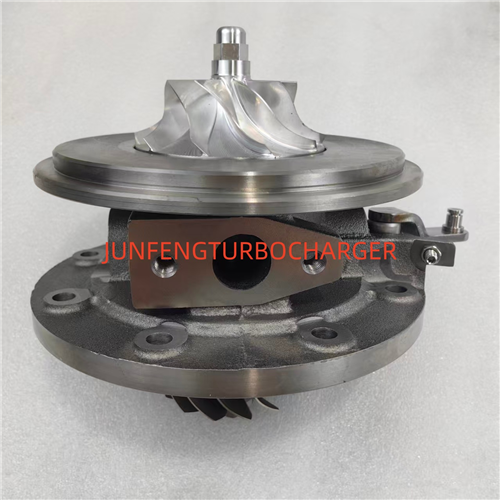

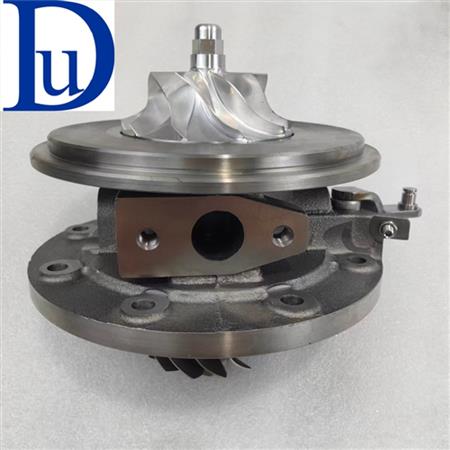

GTB3576KLNRV Turbo core 830724-5002S 17201-E0724 830724-0002 turbocharger cartridge fits for Hino Ranger JO8E 500 Series

Turbo core 830724-5002S
Model: GTB3576KLNRV
Part Number 830724-0002, 830724-5002S, 830724-0004, 830724-0008, 775806-0014, 775806-5014, 775806-5014S, 775806-0016, 775806-5016,
Previous versions 775806-5016S, 775806-0018, 775806-5018, 775806-5018S, 775806-0020, 775806-5020, 775806-5020S
OE number 17201-E0720 17201-E0721, 17201-E0722, 17201-E0723, 17201-E0724, 17201-E0724A, 17201-E0726, 17201E0721
OEM: 17201E0721A, 17201E0724, 17201E0724A, 17201E0726, 17201E0720, 17201E0721, 17201E0722, 17201E0723, 17201E0724
Year 2009-18
Description Truck, Hino Ranger JO8E 500 Series
Displacement 7.7L, 7700 ccm, 6 Cylinders
KW 267
RPM Max 2500

Product Detail

Part Number	830724-5002S
Previous Part Number	830724-0002, 830724-5002S, 830724-0004, 830724-0008, 775806-0014, 775806-5014, 775806-5014S, 775806-0016, 775806-5016, 775806-5016S, 775806-0018, 775806-5018, 775806-5018S, 775806-0020, 775806-5020, 775806-5020S
OE number	17201-E0720, 17201-E0721, 17201-E0722, 17201-E0723, 17201-E0724, 17201-E0724A, 17201-E0726, 17201E0721, 17201E0721A, 17201E0724, 17201E0724A, 17201E0726, 17201E0720, 17201E0721, 17201E0722, 17201E0723, 17201E0724
Year	2009-18
Description	Truck, Hino Ranger JO8E 500 Series
CHRA	N/A
Turbo Model	GTB3576KLNRV
Engine	J08E JNLT
Displacement	7.7L, 7700 ccm, 6 Cylinders
KW	267
RPM Max	2500
Fuel	Diesel
Bearing Housing	(water cooled)
Turbine Wheel	770308-0001 (Ind. 62.01 mm, Exd. 67.87 mm, 13 Blades, Boreless)
Comp. Wheel	(Ind. 50.38 mm, Exd. 76.32 mm, 7+7 Blades, Superback, Boreless)
