  3. G25 Garrett Turbo 877895-5006s G25-660 (A/R 0.92 V band/V band) Wastegated Standar rotation
  • 877895-5006S G25-660 (A/R 0.92 V band/V band) Wastegated Turbo

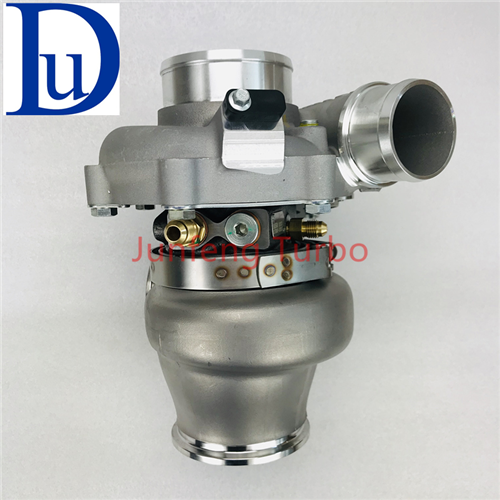

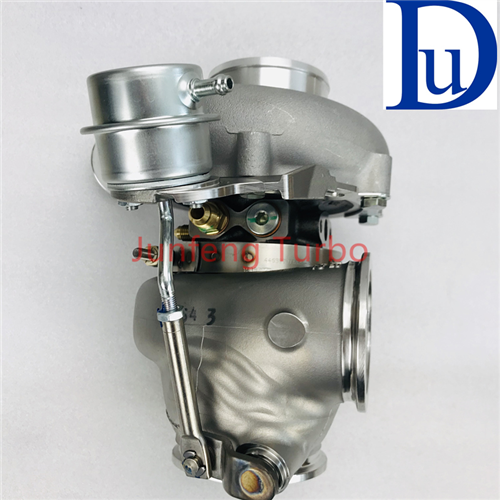

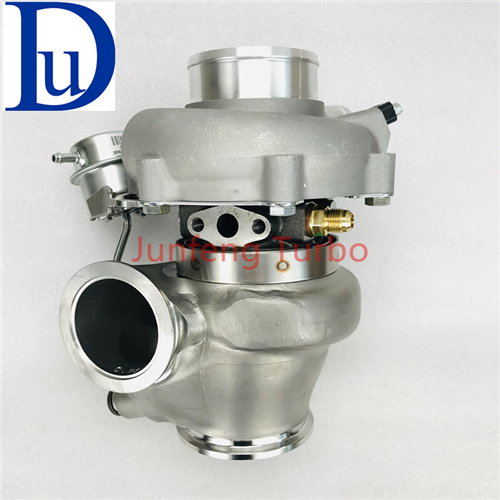

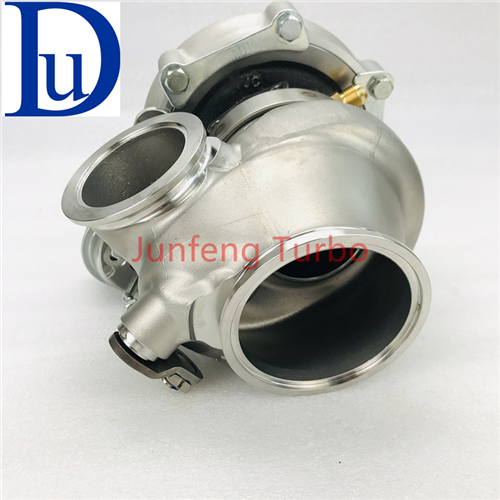

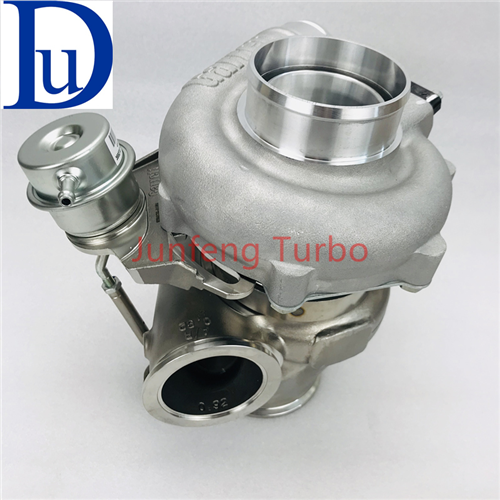

G25 Garrett Turbo 877895-5006s G25-660 (A/R 0.92 V band/V band) Wastegated Standar rotation

  • 877895-5006s G25-660
  • Calibrated by Garrett at 1.0bar (14.7PSI)
  • Compressor side: TRIM 65 A/R 0.70
  • Compressor Air Inlet: Hose 3.00" (76.20mm)
  • Compressor Air Outlet: Hose 2.00" (50.80mm)
  • Turbine side: TRIM 84 A/R 0.92 (wastegated)
  • Turbine Inlet: V-Band 3.00" (76.20mm)
  • Turbine Outlet: V-Band 3.55" (90.16mm)
  • Bearing housing: Water and Oil cooled system.
  • Horsepower: 350 - 660HP
  • Horsepower: 350 - 660HP

Product Detail

Product Descrition

New Compressor aerodynamics deliver up to 660 horsepower. High flowing Mar-M turbine wheel handles up to 1050 degrees C temperatures. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.


Technical Features:
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
Oil Fittings, Flanges, and Components Solutions:
  • Inlet V-Band Flange (For Turbo Manifold): ATP-FLS-350
  • Out V-Band Flange (For Down-pipe): ATP-FLS-351
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • Oil drain fasteners: Product Code: MIA-FST-034
  • Boost Pressure Port Fitting: ATP-FTG-198

  • Speed Sensor Kit: ATP-ACS-032


Horsepower: 350 - 660HP
Displacement: 1.4 - 3.0L

  • Garrett® G Series Compressor Aerodynamics for maximum HP.
  • Fully machined Speed Sensor and pressure ports.
  • New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
  • Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
  • Oil restrictor and water fittings included.
  • Standar rotation.
  • Wastegated turbine housings include actuator assembly.
  • Calibrated by Garrett at 1.0bar (14.7PSI)
  • Compressor side: TRIM 65 A/R 0.70
  • Compressor Air Inlet: Hose 3.00" (76.20mm)
  • Compressor Air Outlet: Hose 2.00" (50.80mm)
  • Turbine side: TRIM 84  A/R 0.92 (wastegated)
  • Turbine Inlet: V-Band 3.00" (76.20mm)
  • Turbine Outlet: V-Band 3.55" (90.16mm)
  • Bearing housing: Water and Oil cooled system.
  • ​​
