  3. Genuine Garrett 880704-5005S G30-770 (A/R 0.83 V band/V band) - Wastegated turbocharger
  • 880704-5005S G30-770 (A/R 0.83 V band/V band) - Wastegated turbine housing turbocharger

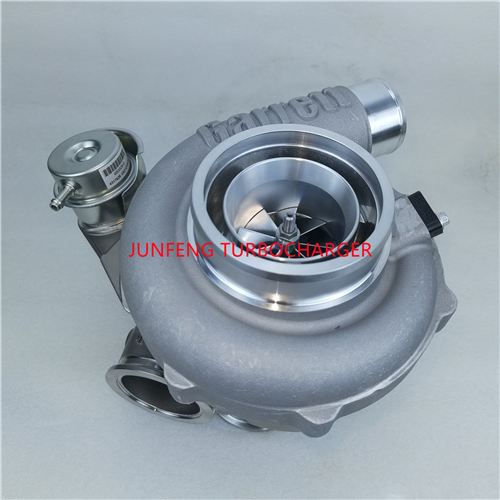

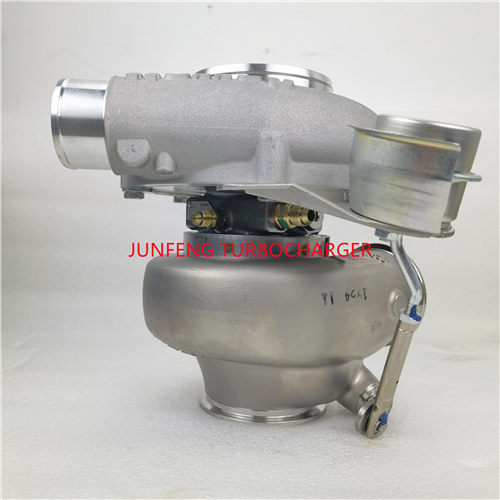

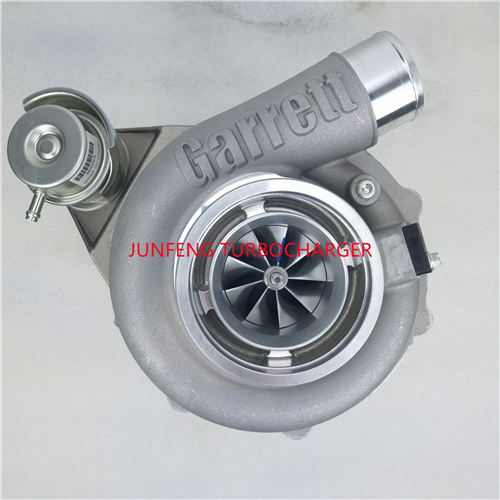

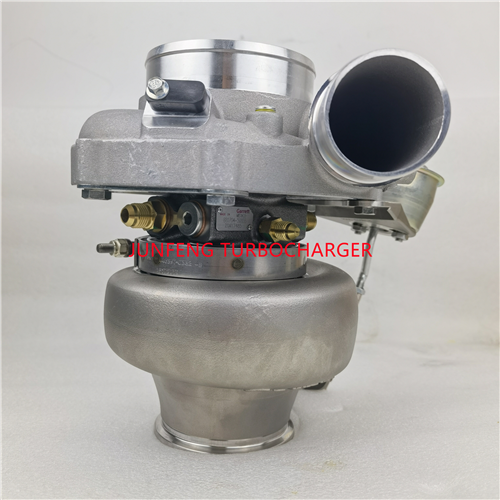

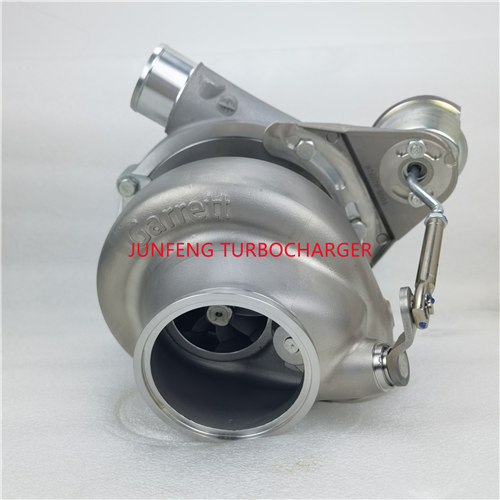

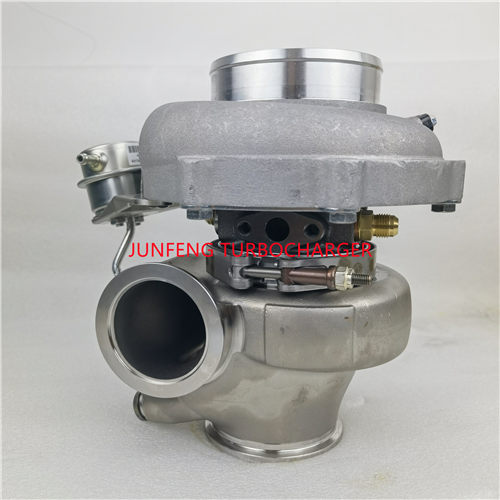

Genuine Garrett 880704-5005S G30-770 (A/R 0.83 V band/V band) - Wastegated turbocharger

  • 880704-5005S G30-770
  • part number : 880704-5005
  • Model: G30-770
  • Compressor side: TRIM 65 A/R 0.72
  • Calibrated by Garrett at 1.0bar (14.7PSI)
  • Compressor Air Inlet: Hose 4.00" (101.60mm)
  • Compressor Air Outlet: Hose 2.00" (51.15mm)
  • Turbine side: TRIM 84 A/R 0.83
  • Turbine Inlet: V-Band 3.00" (76.20mm)
  • Turbine Outlet: V-Band 3.55" (90.16mm)
  • Bearing housing: Water and Oil cooled system

Product Detail

Product Details

  • SUPER CORE PN 880704-5005S
    Model G30 G30-770
    Displacement 2.0 - 3.5L
    Rotation standard  rotation
    power 475 - 770HP
    compressor inducer 58 mm
    compressor exducer 71 mm
    compressor housing A/R 0.70
    Compressor TRIM 65
    compressor AIR INLET Hose 4" (101.6mm)
    Compressor Air Outlet: Hose 2.00" (51.15mm)
    Turbine inducer 60 mm
    turbine housing
    • Wastegated turbine housings include actuator assembly.
    Turbine Housing Inlet 3 Inch O.D. V-Band V-Band 3.00" (76.20mm)
    Condition brand new
    Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band V-Band 3.55" (90.16mm)
    Turbine exducer 55 mm
    turbine TRIM 84
    Bearing housing Water and Oil cooled system.
