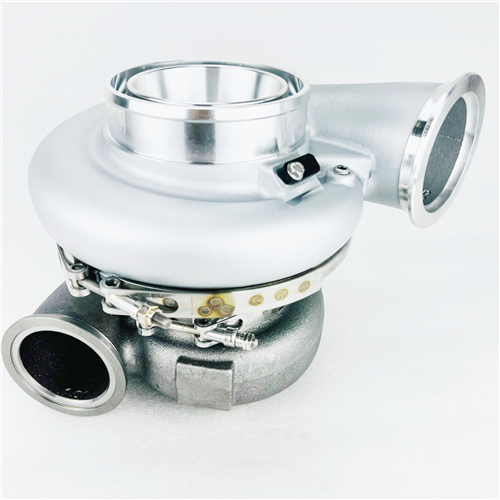

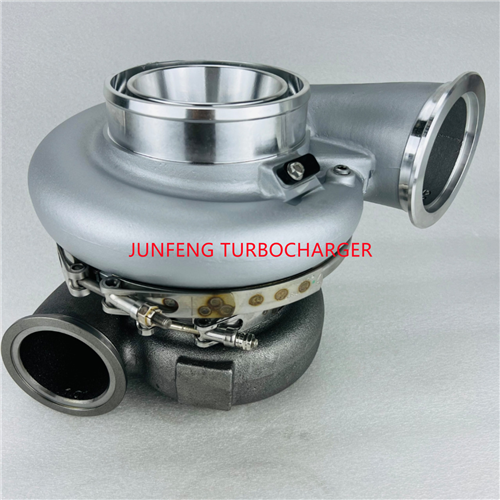

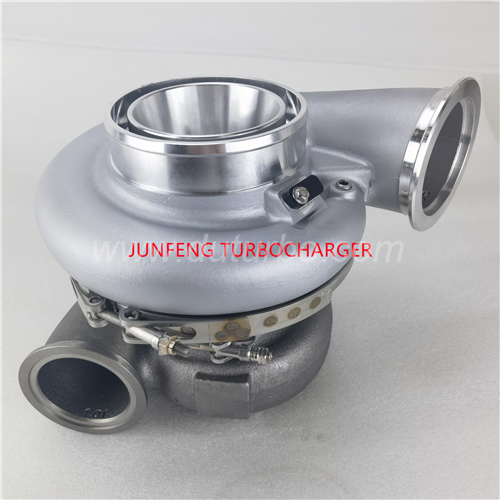

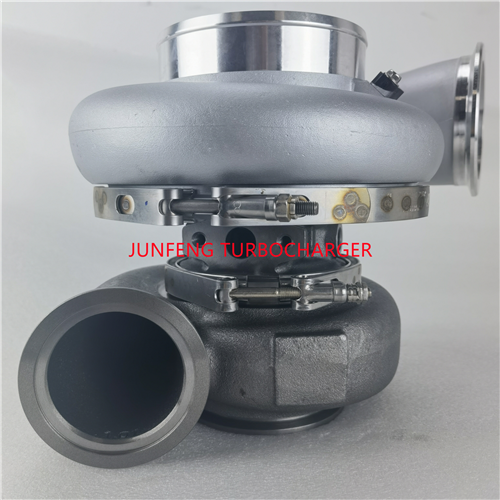

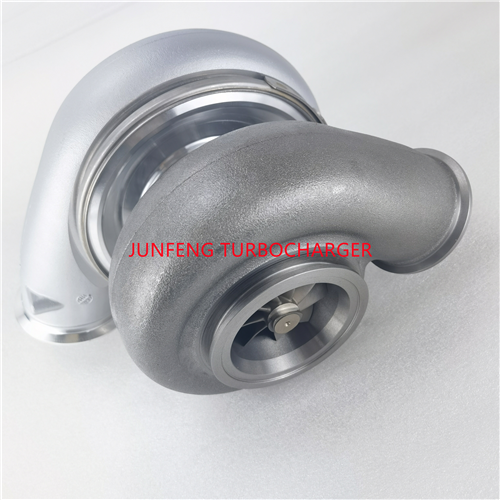

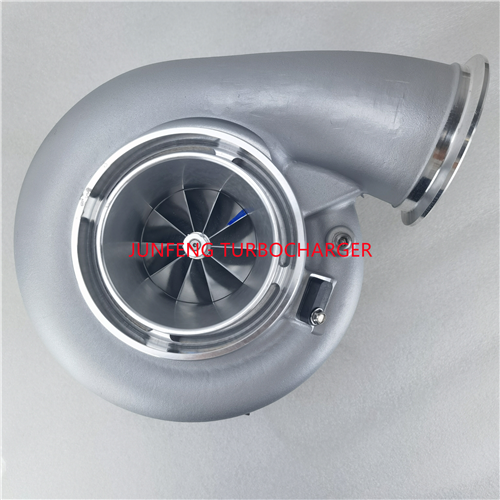

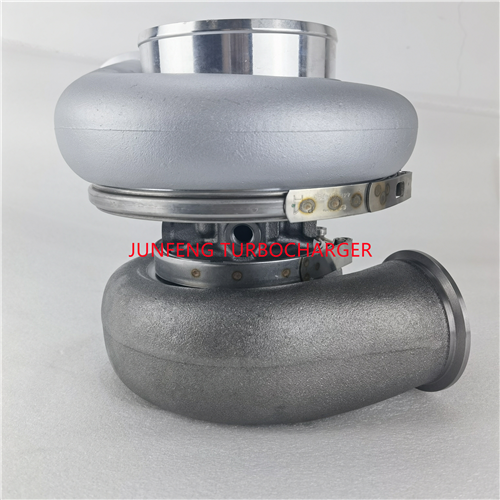

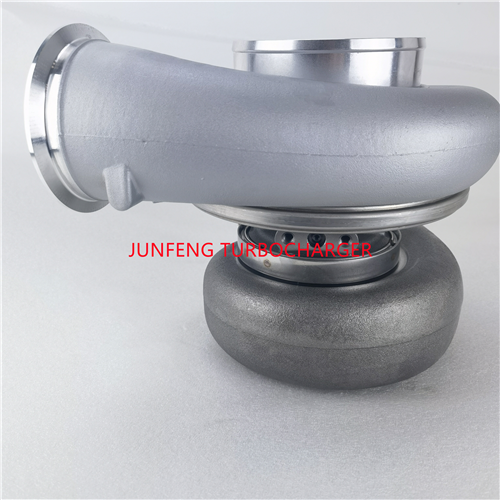

G42-1450 Standard Rotation turbo with AR 1.01 V-Band Cast iron Turbine housing

Product Detail

Product Details

•  New Compressor aerodynamics deliver up to 1450 horsepower. High flowing Inconel turbine wheel handles up to 950 degrees. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.
•
• Horsepower: 475 - 1450HP
  Displacement: 2.0 - 8.0L
• Compressor Aerodynamics (10 blades) for maximum HP.
• Fully machined Speed Sensor and pressure ports.
• Turbine Wheel Aero constructed of Inconel super alloy rated 950ºC
• Stainless Steel non wastegated turbine housing option capable of 950°C.
• Oil restrictor and water fittings included.

• Part Number	879779-5016S
  Model	G42 G42-1450
  Displacement	2.0 - 8.0L
  Rotation	standard rotation
  power	525 - 1450HP
  SUPER CORE	860778-5006S
  compressor inducer	79 mm
  compressor exducer	98 mm
  compressor housing A/R	0.85
  Compressor TRIM	65
  compressor AIR INLET	Hose 5.00" (127.00mm)
  Compressor Air Outlet:	V-Band 4.20" (107.00mm)
  Turbine inducer	82 mm
  Condition	brand new
  Turbine exducer	75 mm
  Turbine housing A/R	1.01
  Turbine inlet	v-band
  turbine kit PN	757707-0011
  Turbine outlet	v-band 4.30" (109.00mm)
  turbine TRIM	84
  Bearing housing	Water and Oil cooled system.
