  3. H2D HX50M H2DM 3538623 3802886 3802886NX 3802886RX turbocharger for Cummins Marine 6CTA Engine
  • HX50M 3594691 3802886 turbocharger for Daewoo Marine with D2842 Engine 65091007064

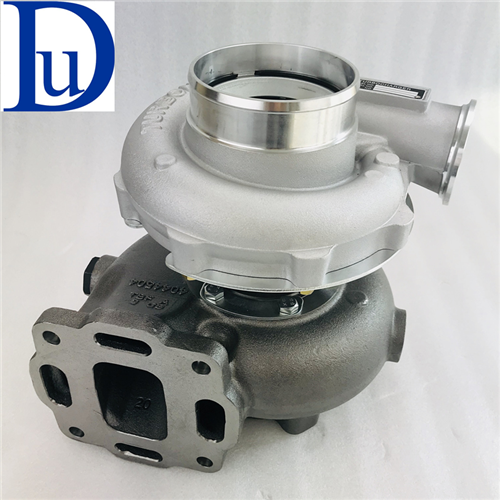

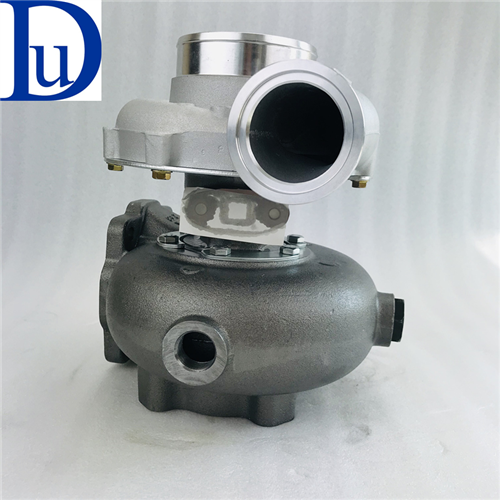

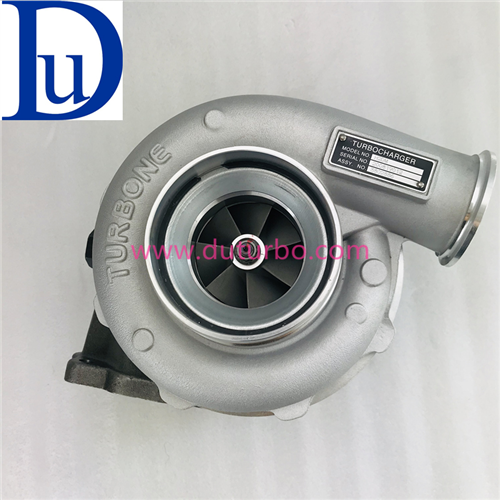

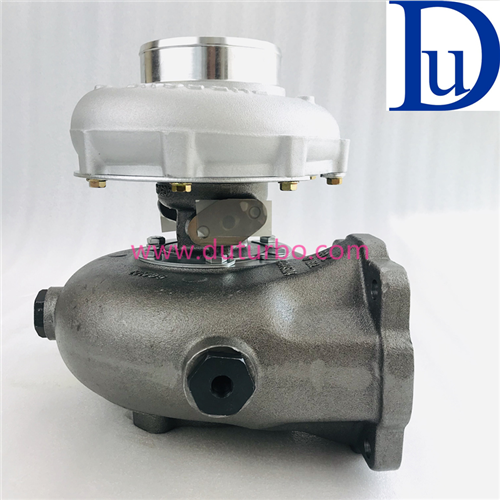

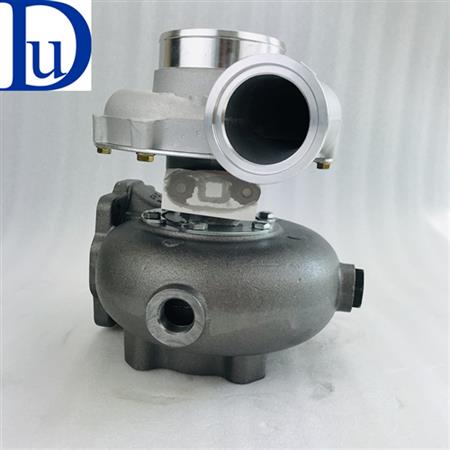

H2D HX50M H2DM 3538623 3802886 3802886NX 3802886RX turbocharger for Cummins Marine 6CTA Engine

  • 3802886
  • Part Number: 3535043 3535044 3538623 3594691
  • OEM：3802639NX, 3802886, 3802886NX, 3802886RX
  • Previous versions 3538623
  • MOQ: 1pcs
  • Cooling type: water cooling
  • Manufacture: booshiwheel factory
  • Condition: brand new
  • engine code: 6C, 6BTA "B" Series 6CTA
  • Displacement: 8.3L, 8300 ccm
  • EXW Price: $325/PCS

Product Detail

HX50M H2DM Turbo 3538626 3802886  turbocharger for Cummins  6CTAM Engine

Product Description

art Number 3535043
Previous versions 3535044
OE number 3802639, 3802639NX, 3802639RX
Description Marine
Turbo Model H2D, H2D-9361N/HA20S3, H2DM
Engine 8.3L 6C, 6BTA "B" Series
CHRA 3545751 (3545751H) $350.00 NEW IN STOCK, MADE IN USA
Engine Manufacturer Cummins
CPL 1975, 2208, 8457
Displacement 8.3L,, 6L, 8300 ccm
Fuel Diesel
KW 330/370 HP
Angle α (compressor housing) 258°
Angle β (turbine housing) 270°
Bearing Housing 3525199 (352519900)(Oil Cooled) $86.00 NEW IN STOCK
Turbine Wheel 3522232 (Ind. 85.95 mm, Exd. 72. mm, 11 Blades)(1152302435) $195.00 NEW IN STOCK
Comp. Wheel 3524997 (Ind. 64. mm, Exd. 94. mm, 7+7 Blades) $82.00 NEW IN STOCK
Back plate 62564 (167543, 3562564)(1253300300) $17.29 NEW IN STOCK
Heat shield Number 3529846 (3533038)(1153052340) $13.22 NEW IN STOCK
Repair Kit 3545653 (1152302750) $68.80 NEW IN STOCK

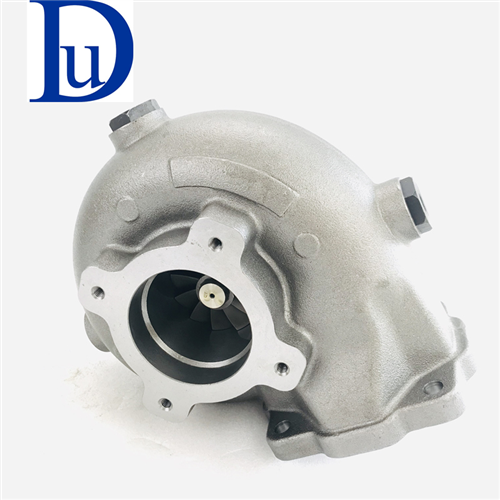

Turbine Housing Water-Cooled
Gasket Kit 3545769

Application

1995-06 Cummins Marine with 6CTA 6BTAM Engine
