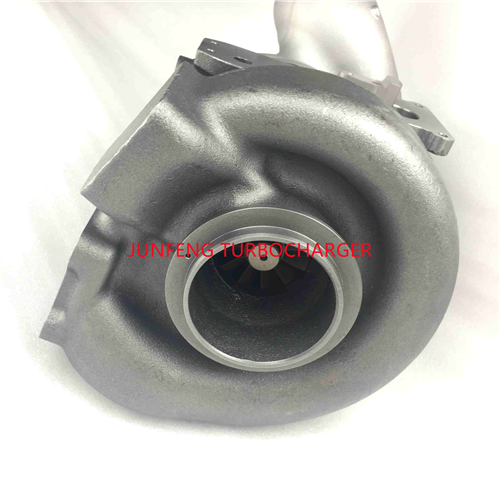

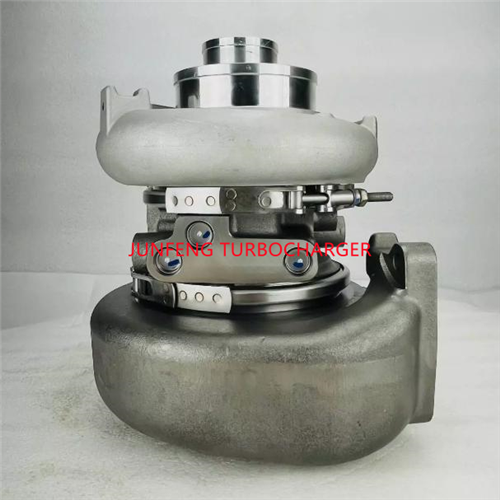

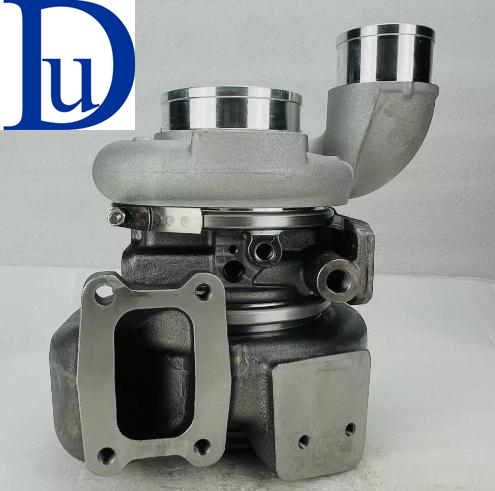

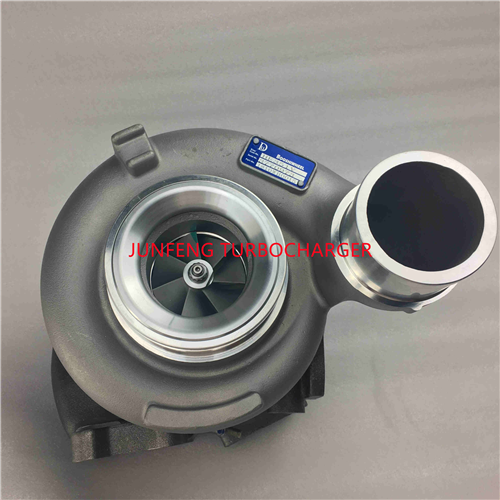

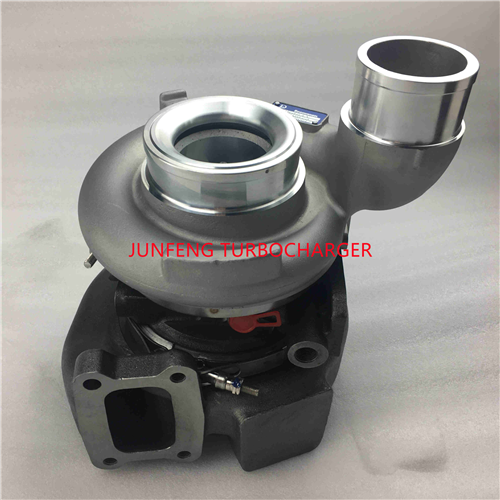

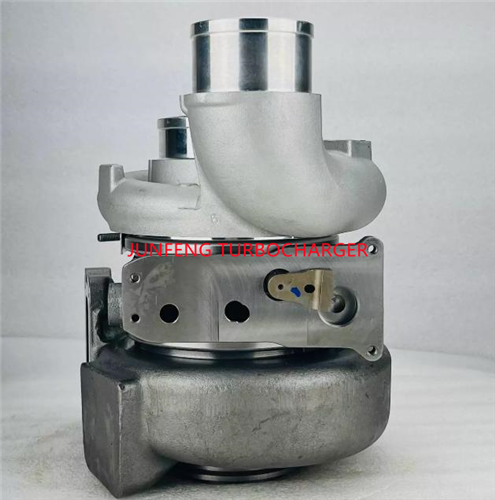

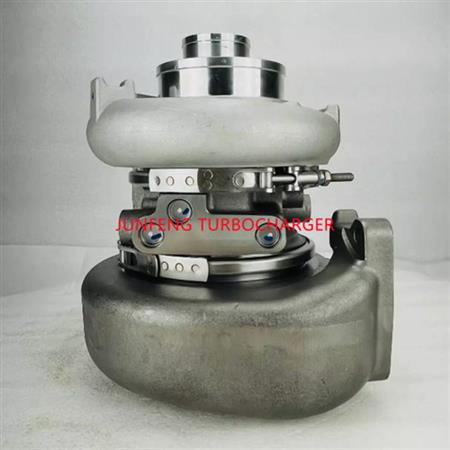

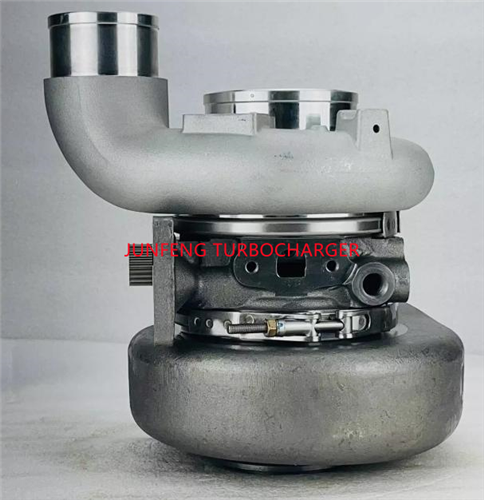

HE351VE Turbo 3770973 4956088RX RL048234AA Turbocharger for Dodge Ram 2500 3500 Truck

HE351VE Turbo 3770973
Model: HE300VG, HE351VE, HE351CW
Manufacturer Part Number 3768087, 3768088, 3770973, 3770974, 3770975, 3770978, 3790480, 3790481
Previous versions 3790482, 3790483, 3799833, 3799840, 379984000, 379984000HX, 3799840H
OE Number 68002428AA, 68003401AA, 68027068AA, 68031095AA, 68032290AB, 68038167AA
OEM: 68048234, 68048234AA, 68048234AB, 68048234AC, 68048234AD, 68048234AE
Part Number 0433522, 2834228, 2834229, 2834603, 2834900, 2834955, 2835909, 2835910
Year 2003-12
Description Dodge Ram 2500 3500 Truck
Engine ISB, ISB 6.7 Raptor, ISB5.9, ISB6, ISB 6.7 Blackbird, ISB EPA 07
Displacement 6.7L, 6700 ccm

Product Detail

Product Description

Part Number	5325947
Previous Version	2834603, 2842406, 2834900, 2835908, 2837649, 2838190, 3768087, 3770973, 3790481, 3799833, 3799840H
OE number	2882075, 4955876, 2881755, 4955447, 68003401AA, 68027068AA, 68048234AD, 68031095AA, R8048234AG, R8048234AH
Year	2003-12
Description	fits for Dodge Ram 2500 3500 Truck
Manufacturer Part Number	2834955, 2835910, 2837647, 2838191, 2842407, 3768088, 3770974, 3790483, 3799840, 4046837, 5325950
CHRA	(1000020127)
Turbo Model	HE300VG, HE351VE, HE351CW
Engine	ISB, ISB 6.7 Raptor, ISB5.9, ISB6, ISB 6.7 Blackbird, ISB EPA 07
Displacement	6.7L, 6700 ccm
KW	350 HP
Fuel	Diesel
Angle α (compressor housing)	175°
Angle β (turbine housing)	189°
Bearing Housing	(1900011227)
Turbine Wheel	(1100016231) (Ind. 70.2 mm, Exd. 60.0 mm, 12 Blades)
Compressor Wheel	(Ind. 50.3 mm, Exd. 72.6 mm, 6+6 Blades, Billet)(1200016234)
Back Plate	(1300016093)
Nozzle Ring	(3000016048) NEW IN STOCK
Repair Kit	(1154351752) NEW IN STOCK
Turbine Housing AR	VGT
Actuator	Electronic
Replaced By	3770973, 2834603, 4046264

Applications

2003-12 turbocharger fits for Dodge Ram 2500 All Engine ISB
