Turbocharger Details
| Part Number | 5326055 |
| Previous Version | 3775427, 3775439, 3779986, 3779987, 3781633, 3781755, 3787607, 3787608, 3794756, 3794758, 3798535, 3798539, 3798573, 3798573NX, 3798573RX |
| OE number | 4309356, 4309356NX, 4309356RX, 4352218, 4352218NX, 4352218RX, 68212739AA, 68253984AA, 68319155AA, 68321378AA |
| Year | 2013-20 |
| Description | Dodge Ram Pickup Trucks 2500/3500 , Various |
| Manufacturer Part Number | 5326048, 5326055, 5326058, 532605800, 532605800H, 532605800HX, 5326058H, 5326058HX, 5327045, 5327045NX, 5327045RX, 5501330 |
| Turbo Model | H300VG, HE300VG, HE300 |
| CHRA | N/A |
| Engine Manufacturer | Cummins |
| Engine | ISB13, ISB, 6BTA EURO 6 |
| Displacement | 6.7L, 6700 ccm |
| Fuel | Diesel |
| Angle α (compressor housing) | 175° |
| Angle β (turbine housing) | 189° |
| Bearing Housing | 3791604 (Water Cooled) |
| Turbine Wheel | 3768300 (Ind. 69.72 mm, Exd. 59.89 mm, Trm 8.05, 12 Blades) |
| Comp. Wheel | 3599017 (Ind. 57.91 mm, Exd. 84.32 mm, Trm 5.71, 7+7 Blades, Superback) |
| Back plate | 4046252 (4046253) |
| Heat shield Number | NEW IN STOCK |

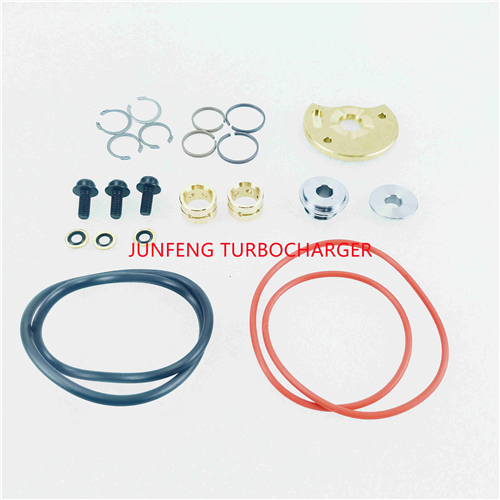

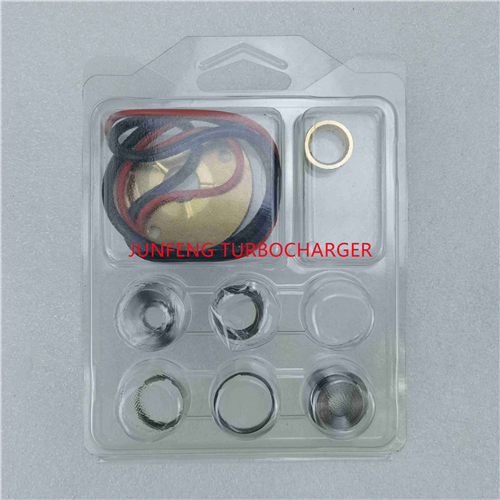

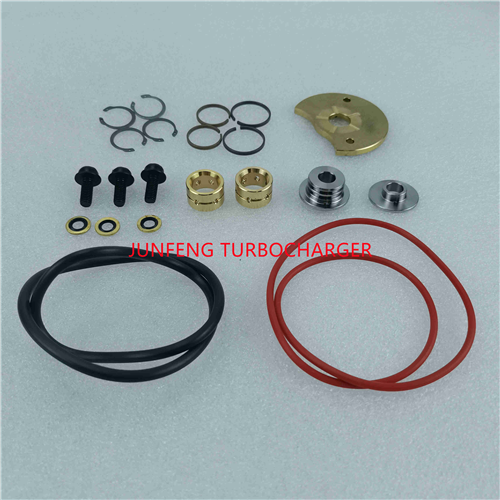

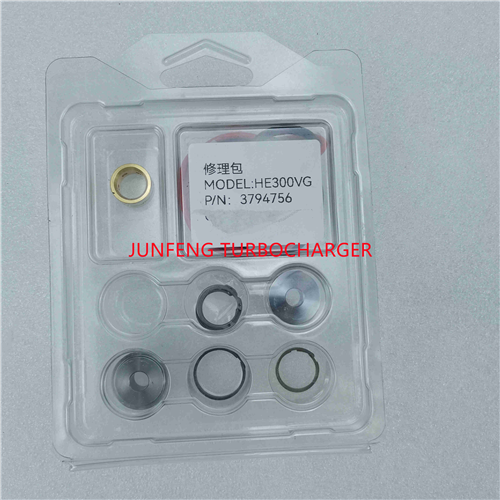

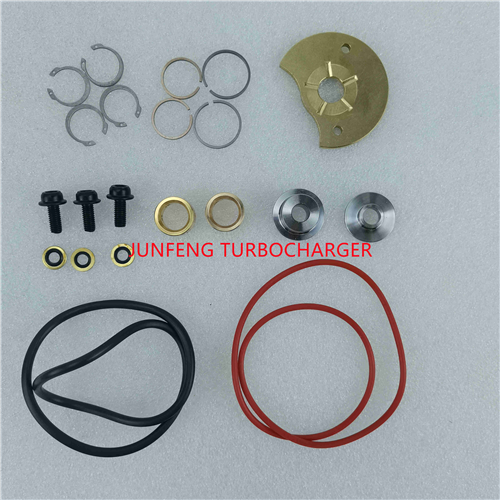

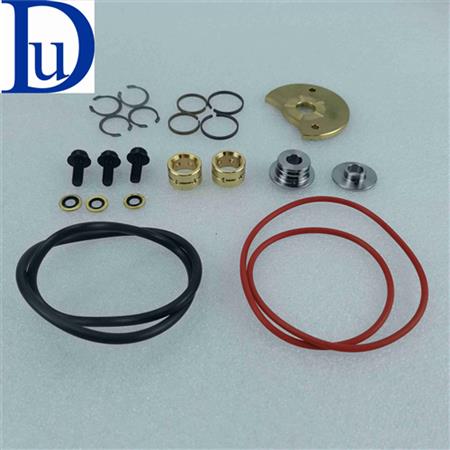

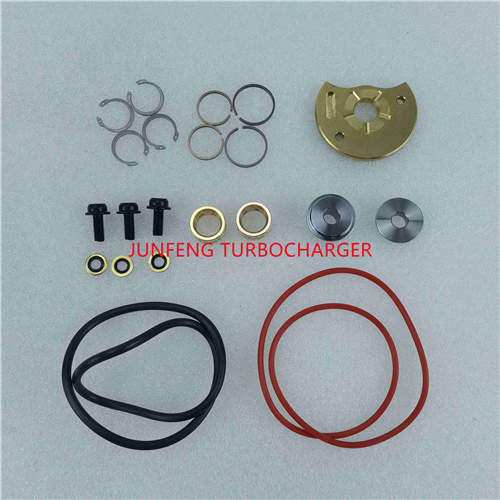

| Repair Kit | (Major)(1154300755) |
| Nozzle Ring | 3799839 |
| Turbine Housing | 3779769 |
| Electronic Actuator | 5498269 (5452689, 5494878, 5494878NX, 5494878RX, 5498269NX, 5498269RX, 5579127, 5579127HX, 68232771, 68232771AA, 68244609, 68244609AA, 68307025, 68307025AA, 68445522AA, 68481772, 68481772AA, R8481772AA) |
| Speed Sensor | 5550060 (2839964, 4032806, 4034198, 4034198H, 4327174, 5550060, 5550060H, 5550060HX) |
| Gasket Kit | 3786285 (33616, GS33616K, MAGGS33616K) |
