Product Detail
Product Description
| Part Number | 4047231 |
| Previous Part Number | 2835204, 2835726, 2836548, 2836809, 2839572, 2839578, 2839970, 2839975, 2842335, 2842348, 2842355, 2842547, 2881659, 2881659NX, 2881671, 2881681, 2881681NX, 2881681RX, 2881741, 2881741RX, 2881861, 2881861NX, 2881861RX, 3774330, 3774335, 3774347, 3778778, 3778790, 3778796, 3795640, 379564000, 379564000H, 3795640H, 3795652, 3795658, 3772940 |
| OE number | 4955533, 4955693, 4955692, 4955535, 4955534, 4955403, 4955693 |
| Manufacturer Part Number | 4045254, 4047290, 4309193, 4309193NX, 4309193RX, 4352529, 435252900, 435252900H, 435252900HX, 4352529H, 4352529HX, 4352529NX, 4352529RX, 4955533, 4955533NX, 4955942, 4955942NX, 4955989, 5321720, 5321724, 5455957, 545595700, 545595700H, 545595700HX, 5455957H, 5455957HX |
| Description | FITS FOR Cummins Various, Truck, Bus |
| CHRA | (1000020150T) |
| Turbo Model | HE431VE |
| KW | 805/816 |
| Engine | ISL, ISC, ISC 280 |
| Fuel | Diesel |
| Power | 805 HP |
| S/N | P0806090435 |
| Angle α (compressor housing) | 247/270/155° |
| Angle β (turbine housing) | 151/61/134° |
| Bearing Housing | 2841670 (2840639)(Water Cooled)(1900011344) |
| Turbine Wheel | 4041399 (Ind. 59.15 mm, Exd. 74.69 mm, Trm 7.81, 11 Blades)(1100016341) |
| Comp. Wheel | 4039432 (Ind. 59.35 mm, Exd. 85. mm, 7+7 Blades, Superback)(1200016481T) |
| Back plate | 3594529 (1300016122) |
| Heat shield Number | (2063050182) |
| Repair Kit | (1154551765, 500002003) |
| Nozzle Ring Assembly | (3000016051) |
| Actuator Electronic VGT | 2835946 (28169127, 28169127-10, 2816912710, 28200933, 28200933-10, 2820093310, 2835946, 2835949, 2837208, 2840219, 3787561, 3787595, 4032161, 4032674, 4032768, 4032768NX, 4032768RX, 4034122, 403412200, 403412200H, 403412200HX, 4034122H, 4034122HX, 4034122NX, 4034122RX)(12 Volts) $896.70 |
| Gasket Kit | 4032585 (403258500) |
| Replaced by | 2842336, 4047231, 4047233 |

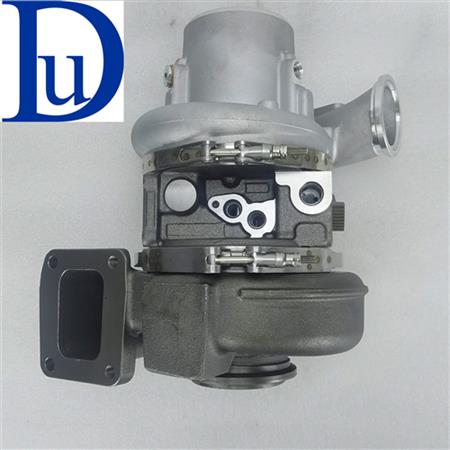

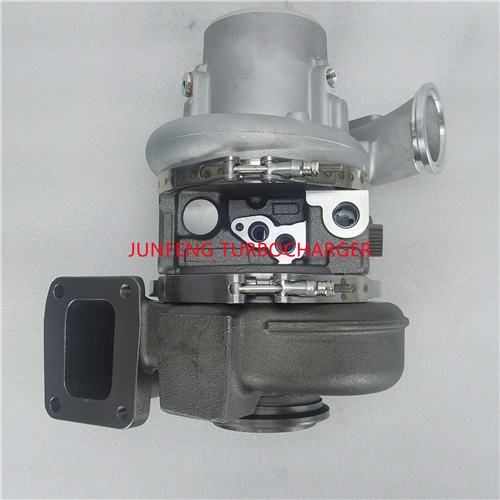

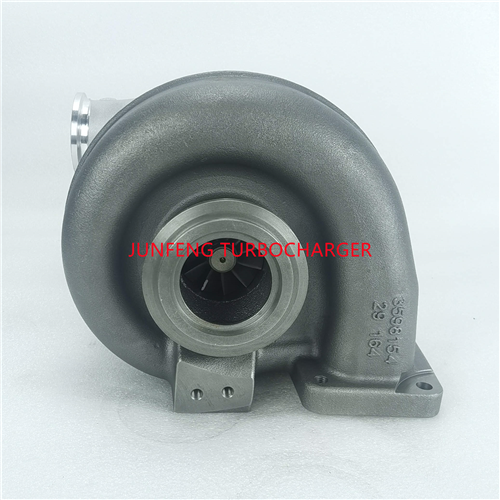

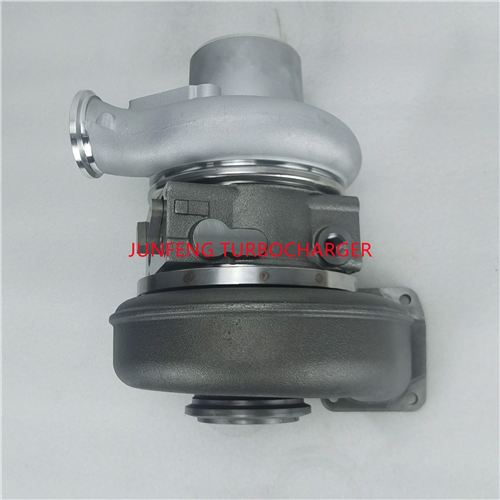

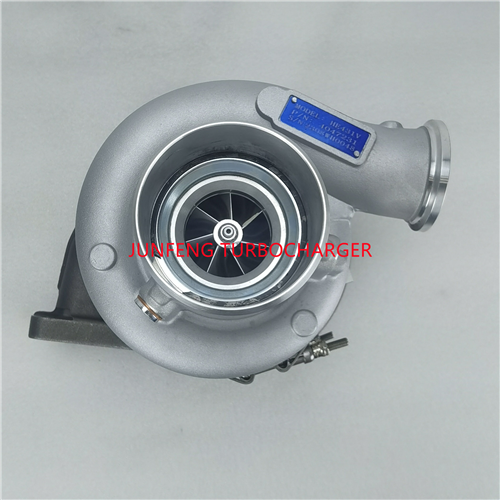

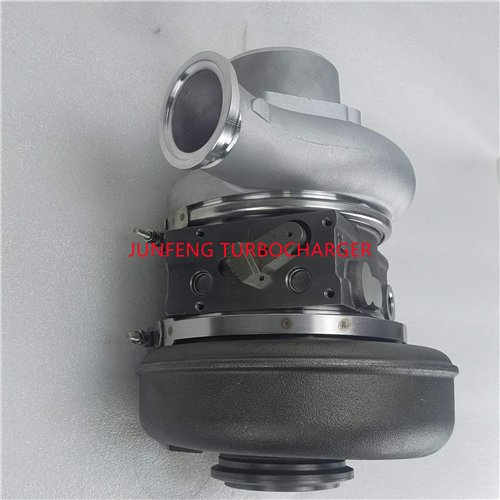

2007-13 turbocharger for Cummins Truck, Bus, Various ISL engine
