HE451VE 2882004 2843481 8773568 3783568 2882111 HE400VG HE451V Turbocharger Repair kits for Cummins Various

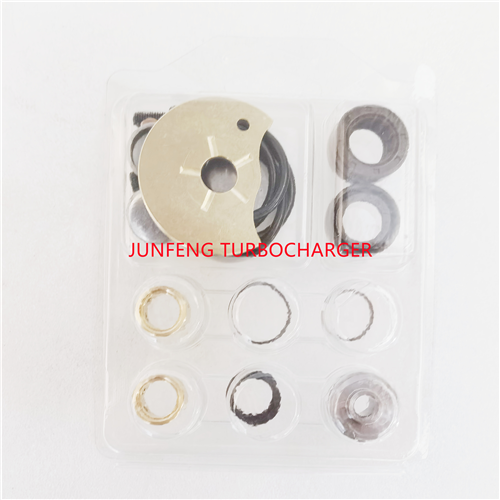

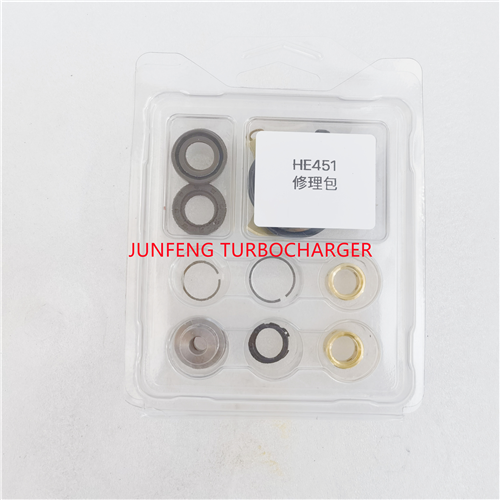

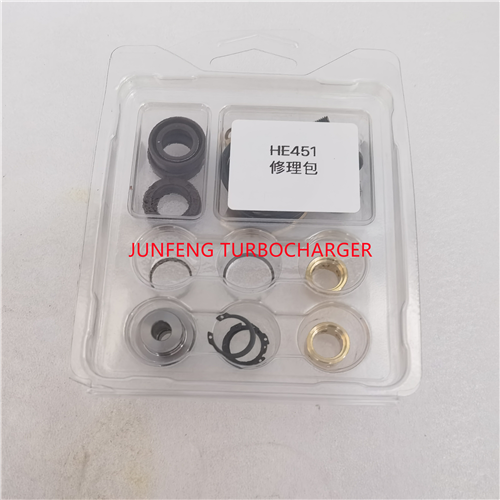

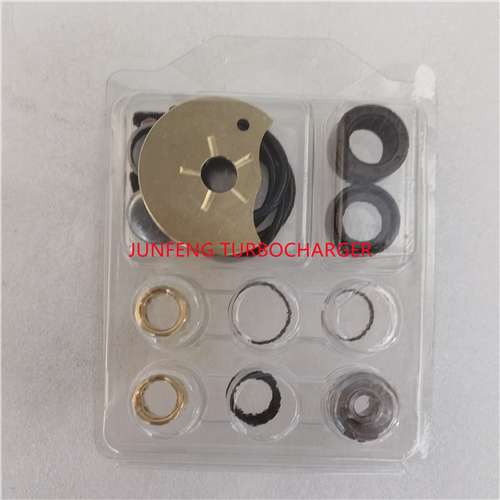

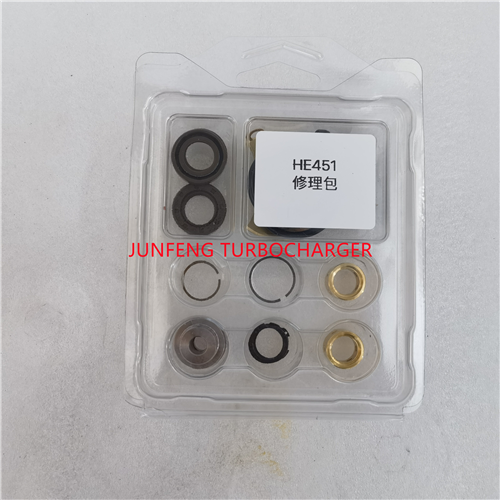

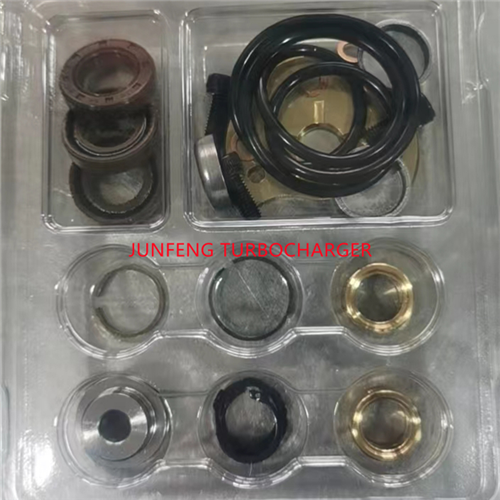

HE451V Turbocharger Repair kits
part number : 2882004NX, 288211100, 2882111NX, 2882111RX, 2841220, 2841221
oe number: 8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110NX
ENGINE CODE: ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101
ENGINE MODEL: ISX15 CM2350 X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106
ENGINE TYPE: QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
MOQ: 10STES
MANUFACTURER: BOOSHIWHEEL
condiction:brand new
Turbo Model : HE451VE, HE400VG HE451V
Manufacturer Part Number 2843481 2882004, 2840007, 3773562, 3773561, 2882110, 3792586H, 2882110NX, 3792586HX, 288211100HX

Product Detail

Turbocharger Details

Part Number	2882111
Previous Version	2882004NX, 288211100, 2882111NX, 2882111RX, 2841220, 2841221, 2841222, 3768194, 3773569, 3792586, 2882111, 2881807, 2882004, 2840007, 3773562, 3773561, 2882110, 3792586H, 2882110NX, 3792586HX, 288211100HX
Year	2005-10
OE Number	8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110NX
Description	Various Trucks
Manufacturer Part Number	2843481
Turbo Model	HE451VE, HE400VG
CHRA	NEW IN STOCK
Engine	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
Displacement	15.0L, 1500 ccm
Fuel	Diesel
Engine Manufacturer	Cummins
Angle α (compressor housing)	275°
Angle β (turbine housing)	155°
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Nozzle Ring Assemble	order acceptable
Repair Kit	order acceptable
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Gasket Kit	3685535
Superseded	5350503
