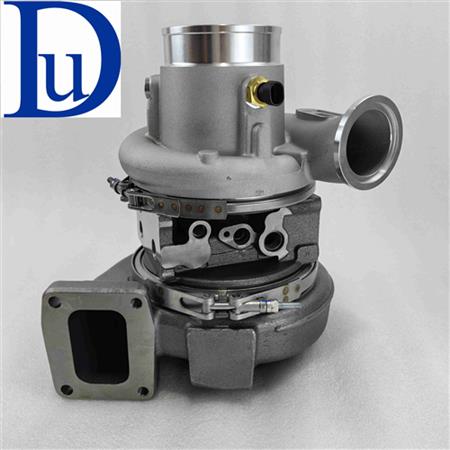

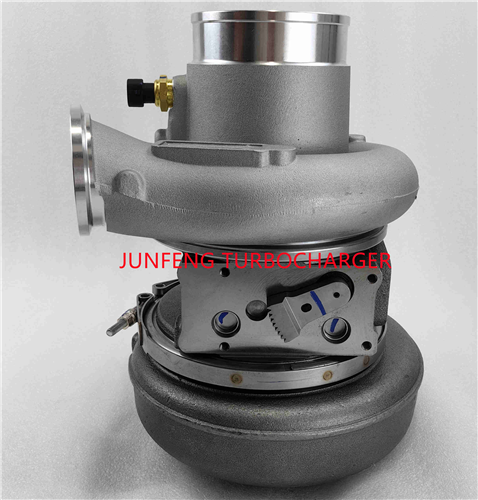

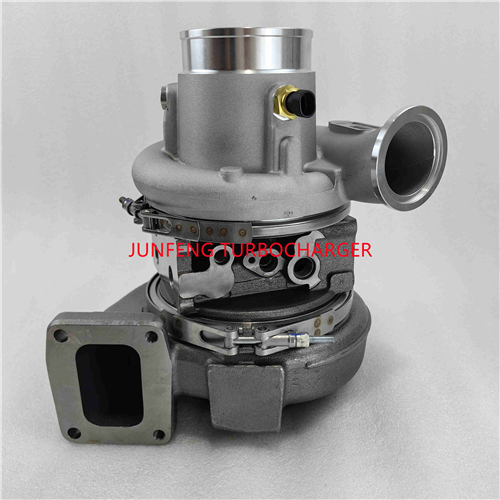

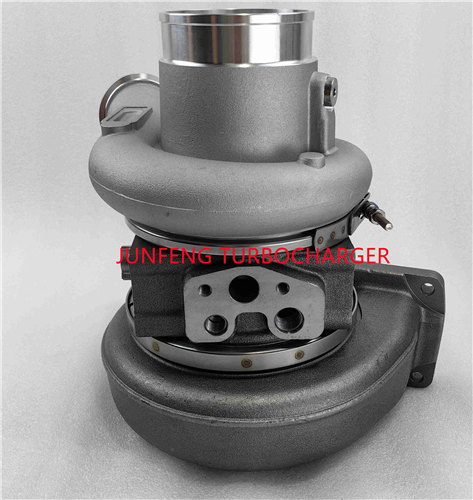

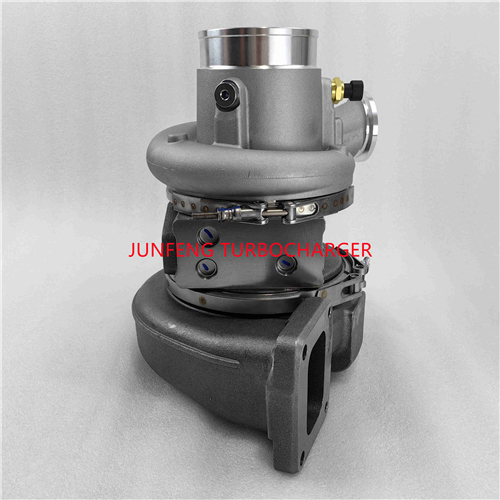

HE400VG 2881791 4309124 5350607 2838790 turbocharger for Cummins Industrial Crane ISC ISL B3 B4 ISM Engine

HE400VG 2881791
Model : HE431VE, HE400VG
turbo part number : 2838790 19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791
OE number 4955429, 4955429NX, 4955582, 4956026, 4956026NX 4956027, 4956027NX, 4956028
Manufacturer Part Number 5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981
Engine ISC, ISM
Displacement 10.8L, 10800 ccm
Fuel Diesel
Description Truck, Bus, Coach, Various, Industrial Crane
Gasket Kit 3088984
Applications 2006- Cummins Truck with ISC Engine

Product Detail

Product Description

Part Number	5350607
Previous Version	19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548, 2840549, 2840550, 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355, 3774356, 3774358, 3774623, 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839, 3792242, 3792244, 3792246, 3792247, 3792247NX, 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128, 3795150, 3795151, 3795152, 3797541, 3797542, 379754200, 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428, 4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX, 4309124, 430912400, 4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028
OE Number	4956C26, 4955428
Year	2006-14
Description	Industrial Crane
Manufacturer Part Number	5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669, 5456971, 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX, 5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX
Turbo Model	HE451Ve, HE400VG
CHRA	N/A
Engine	ISC, ISL, B3, B4, ISM
Displacement	320V
Fuel	Diesel
Angle α (compressor housing)	257º
Angle β (turbine housing)	158º

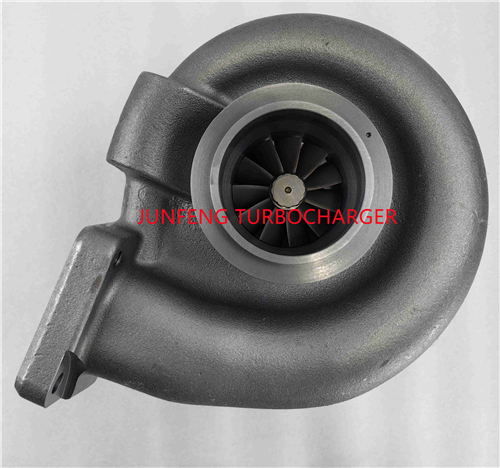

Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK

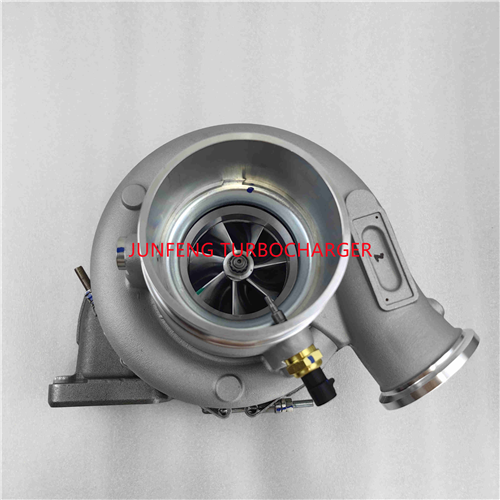

Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Electronic Actuator	4034289H (12V) Reman
Electronic Actuator	4034290H (24V) Reman
Gasket (turbine inlet)	3088984
Gasket Kit	3685535

Applications

2006-14 turbocharger for Cummins (CTT) Industrial Crane with ISC, ISL, B3, B4, ISM Engine
