Product Detail
HE561VE Turbo 5350611 4956010 2836357 for Cummins Volvo Truck Various with ISX1 Engine
Product Description
| Part Number | 5350611 |
| Previous Version | 2836357, 2838153, 2838154, 2840519, 2840520, 2840521, 2881785, 2881785NX, 2881785RX, 2881997, 2881997NX, 2881997RX, 3767615, 3767622, 3767630, 3774601, 3774612, 3774626, 3774640, 3780526, 3792776, 3792786, 3795162, 4042413, 4045031, 4045034, 4309076, 430907600, 430907600HX, 4309076HX, 4309076NX, 4309076RX, 4955425, 4955425NX, 4955425RX, 4956010, 4956010NX, 4956010RX |
| OE Number | 4956010, 4955425, CPL-2732 |
| Manufacturer Part Number | 2836357, 2838153, 2838154, 2840519, 2840520, 2840521, 2881785, 2881785NX, 2881785RX, 2881997, 2881997NX, 2881997RX, 2836357, 2838154, 2840520, 2840521, 3767622, 3774612, 2881785, 3774626, 3792786, 4042413, 2881997, 5350641, 535064100, 5350893, 535089300H, 5350893H, 5350893HX, 5359785, 5359785NX, 5359785RX, 5456738, 545673800H, 5456738H, 5457297, 5457297NX, 5457297RX |
| Year | 2007-13 |
| Description | Truck, Various Volvo |
| Engine Manufacturer | Cummins |
| CHRA | $1080.00 |
| Turbo Model | HE500VG, HE561VE |
| Displacement | 15.0L 15000 ccm |
| Engine Model | ISX EGR, ISX1, ISX EGR 15, STA15, ISX 07 |
| Fuel | Diesel |
| Serial Number | P1001080185 |
| Angle α (compressor housing) | 132° |
| Angle β (turbine housing) | 155° |
| Turbine Wheel | 3593822 (Ind. 86. mm, Exd. 72. mm, 12 Blades) $220.00 |
| Comp. Wheel | 2843589 (Ind. 70. mm, Exd. 111.7 mm, 8+8) $260.00 |
| Repair Kit | (1154500755) $250.00 NEW IN STOCK |
| Turbine Housing AR | VGT |
| Actuator | 4034289 (28087185, 28169119, 4034289H, 2835940, 2837201, 3789667, 3789676, 3789677, 3791991, )(12 Volts) $699.00 |
| Control Sensor | 4032760NX, 4032673, 4032066, 4045108 |
| Gasket (turbine inlet) | 3102314 $19.49 |
| Note | Actuator 12 Volt |
| NOTE | without actuator 2881786 |
| Listed | $3,998.00 (New with Actuator $6,251.10) |
| Manufacturer | Holset |
2007-13 Cummins, Volvo Truck, Various with ISX1 Engine

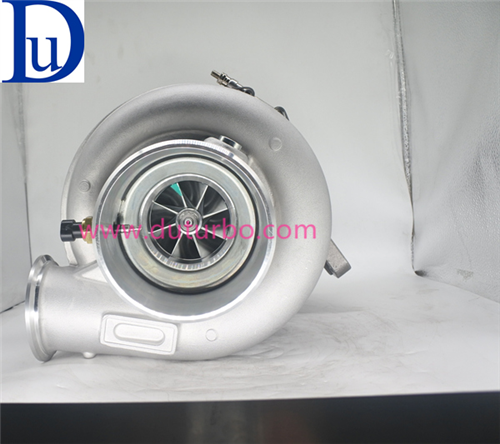

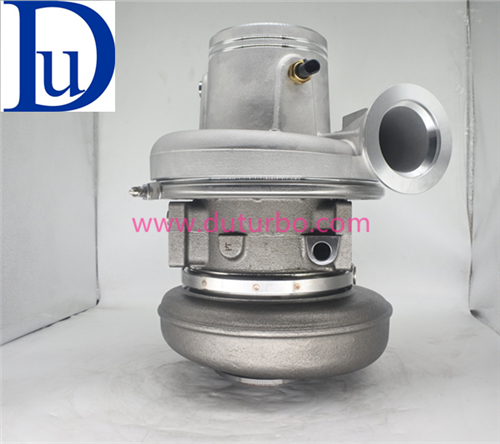

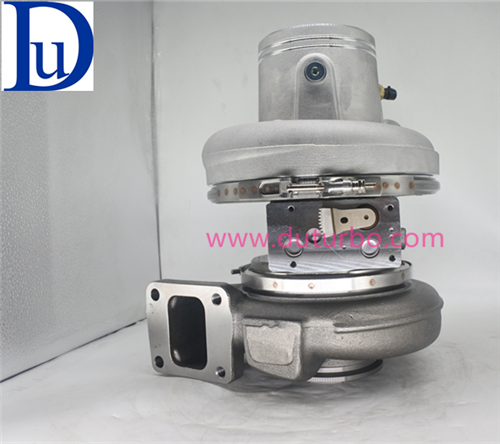

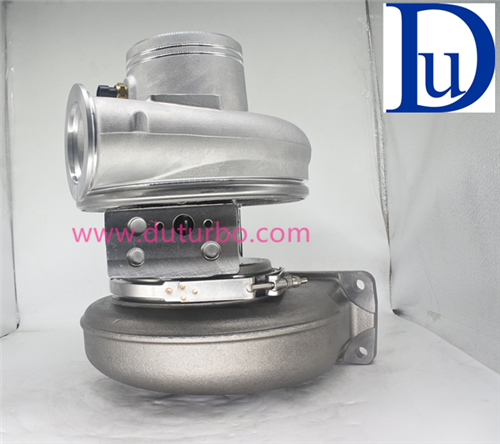

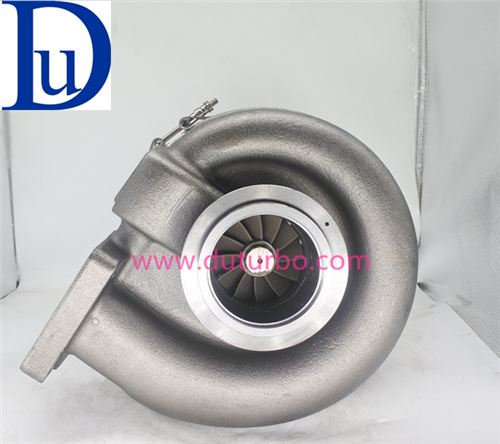

Product Show
