Product Detail
Product Description

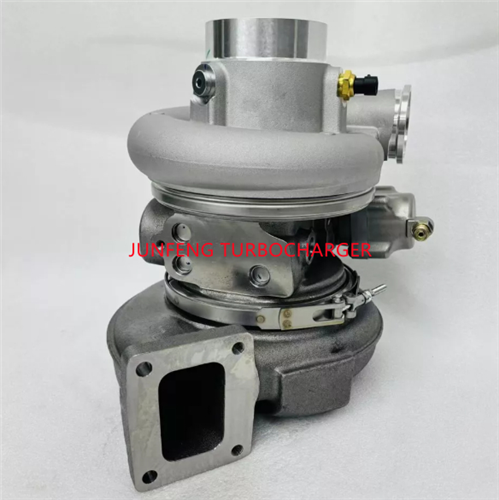

| Part Number | 5353159 |
| Previous Version | 4043212, 4041048, 3768262, 4038983, 3781166, 4038756, 2843881, 4041046, 4045923, 2843881, 3768262, 3768266, 376826600HX, 3768266HX, 3781166, 3768266H |
| OE Number | 4089820, 2881992, , 288199200, 288199200HX, 2881992HX, 2881992NX, 2881992RX, 4955304, 4089578, 4089578NX, 4089820, 4089820NX |
| Year | 2004- |
| Description | RV, Fire Truck, Coach, Various ID21 |
| Manufacturer Part Number | 4035854, 4035855, 4037260, 4037261, 4038756, 4038757, 4038983, 4038984, 4038985, 4038986, 4041046, 4041048, 4043211, 4043212, 4043223, 4043224, 4045922, 4045923, 4955303, 4955303NX, 4955303RX, 4955304, 4955304NX, 4955304RX, TS3768262, TS3768262R |
| CHRA | N/A |
| Turbo Model | HE500VG, HE531V |
| Engine Model | ISM, ISM02, QSM11 |
| Displacement | 11.0L, 1100 ccm |
| KW | 400 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 270º |
| Angle β (turbine housing) | 130º |
| Turbine Wheel | 4042581 (Ind. 83.99 mm, Exd. 69.97 mm, 12 Blades)(1154055438, 1100016492) |
| Repair Kit | 4032255 (1154055750, 5000020036) |
| Turbine Housing AR | VGT |
| Air Control Valve | 3770743 (2836555, 3770743H, 4035014, 4036783, 4040341, 4046305) |
| Gasket (turbine inlet) | 3755843 |
| Gasket (oil outlet) | 3101268 (Paper) |
| Gasket (Kit) | (3755843, 3101268, 3102802, 3627695, 3678786, 3678912, 3922794) |
2004-10 turbocharger fits for Cummins RV, Fire Truck, Coach with ISM02 Engine
2010- turbocharger fits for Cummins Various with ISM Engine
