Product Detail

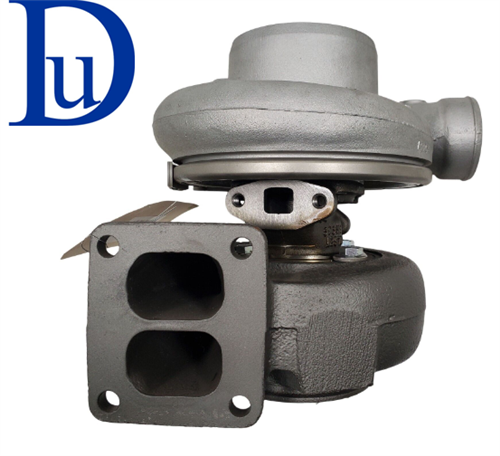

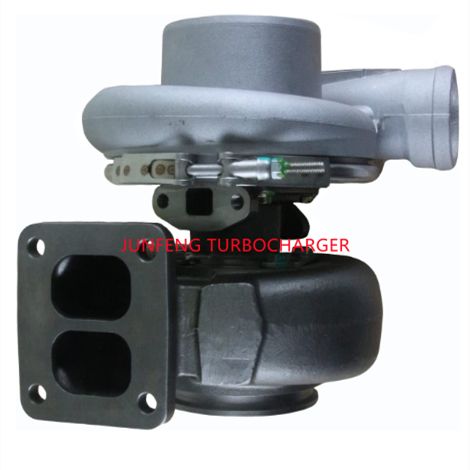

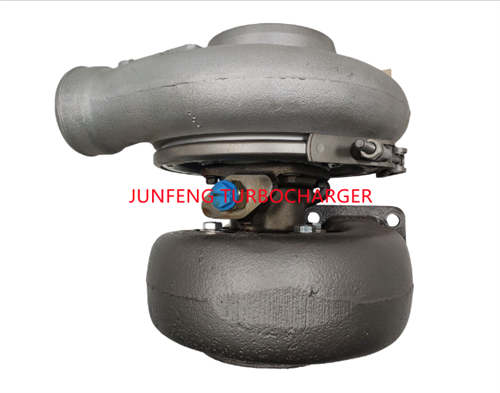

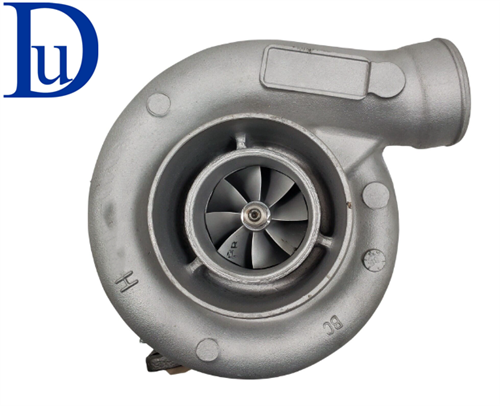

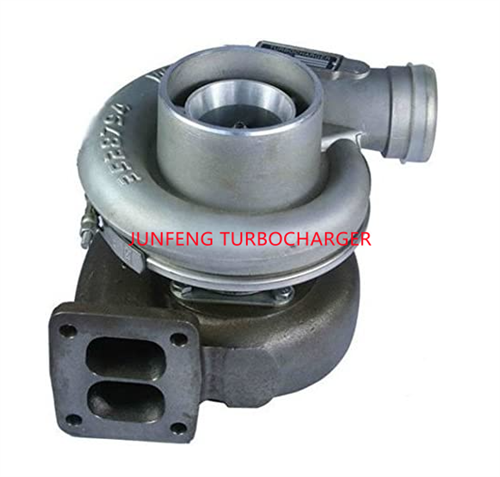

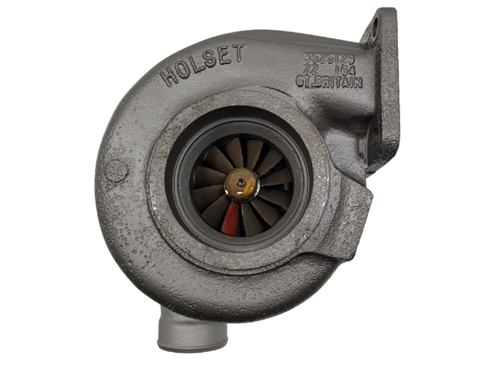

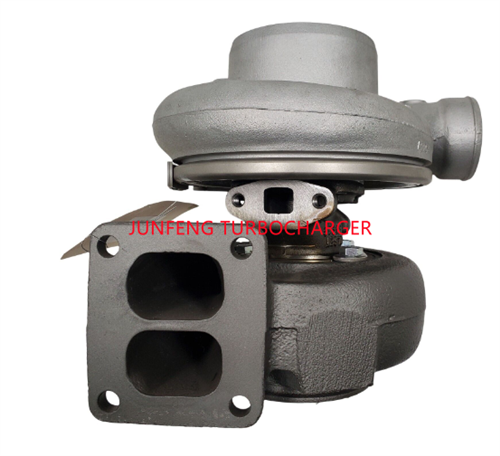

Product Description
| Part Number | 3527107 |
| Previous Version | 527123H, 3528789 |
| OE number | 3802257 |
| Description | CDC, DFM, Buses, Truck |
| CHRA | 3545988 |
| Turbo Model | H1E-8294AX/FA22SA8, H1E |
| Manufacturer Part Number | 3528790, 3530773, 3535536, 3535537, 3535539, 3927723, 3531883, 3527123 |
| Engine | 6CT, 6CTA |
| Displacement | 8.3L, 8300 ccm |
| KW | 184/250/236 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 35/165/197/315/340/345º |
| Angle β (turbine housing) | 15/20/222/360º |
| Bearing Housing | 3530591 (3502500, 3520574, 3530592) |
| Turbine Wheel | 3522879 (3535359)(Ind. 75.92 mm, Exd. 64. mm, 12 Blades) (1152301436) |
| Comp. Wheel | 3599642 (Ind. 59.99 mm, Exd. 81.73 mm, 8+8 Blades, Superback)(1152301401) |
| Back plate | 3522801 |
| Heat shield Number | 3519302 (1152301340) |
| Repair Kit | 3545652 (4027309)(1152301750) |
| Turbine Housing | 3527122 |
| Compressor Cover | 3525359 |
| Gasket (turbine inlet) | 407294-0001 (312617) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
Applications
1988-02 Turbocharger for Cummins, CDC Buses, Truck for 6CTA Engine
1988-02 Turbocharger for Cummins, DFM for 6CT Engine
