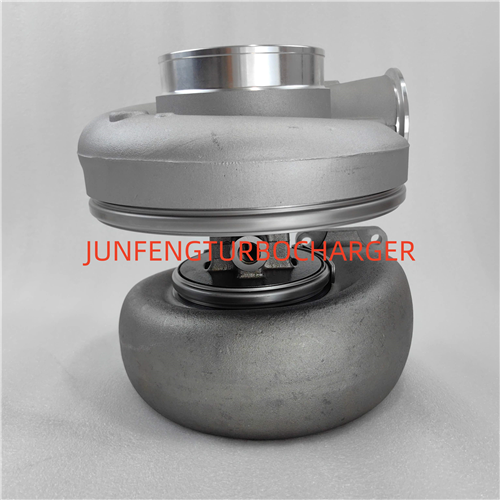

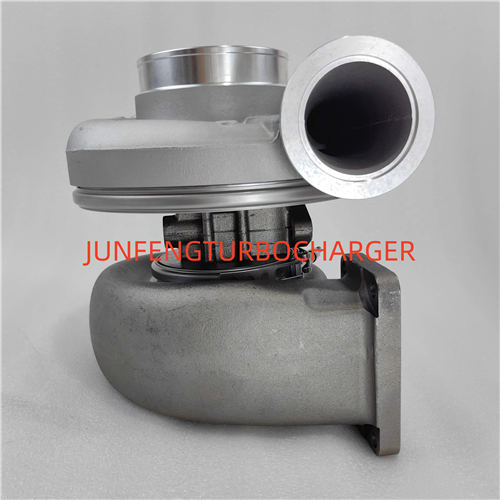

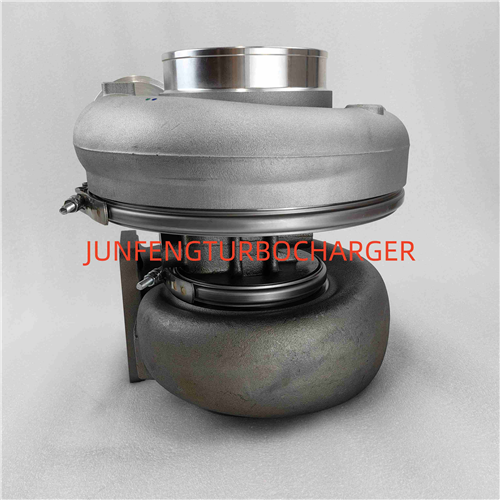

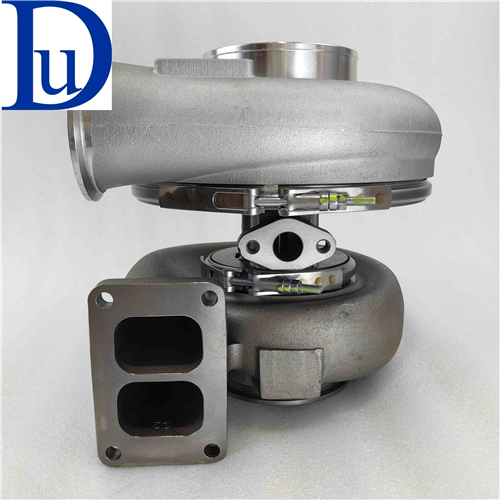

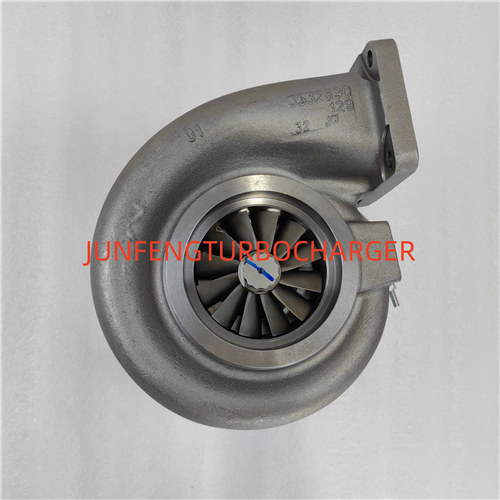

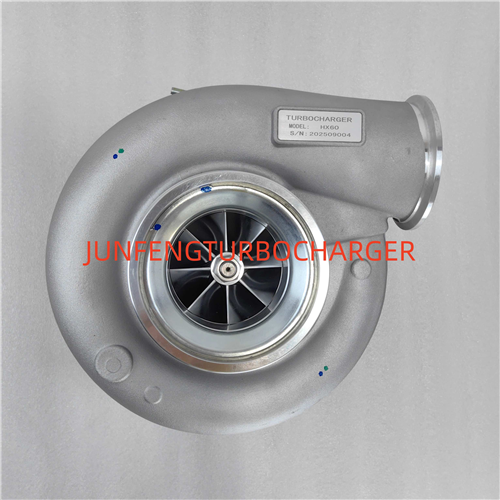

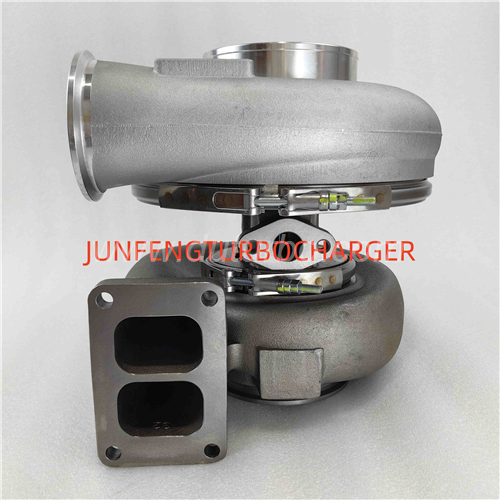

HX60 3800852NX 3800852RX 3592369 3800852 Turbocharger Fits for Cummins Marine QSM11 6 Cylinders Diesel Engine

HX60 3800852
Model: HX60, HX60M, HX60-A1292C/B32JA1
Part Number 3800852 3592369
OE number 3592401 3800852, 3800852NX, 3800852RX
CPL(s) 2443, 8363, 8753
CHRA 3594608 (3594608H, 4027259, 4027252, 4027259H)
Engine M11 ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876
Displacement 6 Cylinders
KW 635 HP
Fuel Diesel
MOQ: 1PCS

Product Detail

Product Description

Part Number	3592369
Previous versions	3592401
OE number	3800852, 3800852NX, 3800852RX
Description	Marine
Manufacturer Part Number	3592401
CPL(s)	2443, 8363, 8753
CHRA	3594608 (3594608H, 4027259, 4027252, 4027259H)
Turbo Model	HX60, HX60M, HX60-A1292C/B32JA1
Engine	M11, ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876
Displacement	6 Cylinders
KW	635 HP
Fuel	Diesel
Angle α (compressor housing)	90º
Angle β (turbine housing)	30º
Bearing Housing	3536802 (353680200, 3536802H, 4038724)(Oil Cooled)
Turbine Wheel	3533025 (3533025H)(Ind. 97. mm, Exd. 86.3 mm, Trm 16.9, 12 Blades)(1153060435)
Comp. Wheel	3534650 (353465000)(Ind. 80. mm, Exd. 113. mm, Trm 9.25, 8+8 Blades, Superback)
Back plate	3531917 (1250403300)
Heat shield Number	3519155 (3758538, 18373, 351915500)
Repair Kit	4027881 (3545345, 3580568, 4027880)(1153060750)
Turbine Housing	3533986 (3592367)
Compressor Cover	3591396
Gasket Kit	3545577 (468189-0000)(215082, 2090505397)
Gasket (oil outlet)	3519763 (129120, 210018-0000, 201048, 157602, 3037537)(1900000025)

Application

1996-11 turbocharger for Cummins Marine with QSM11 Engine
