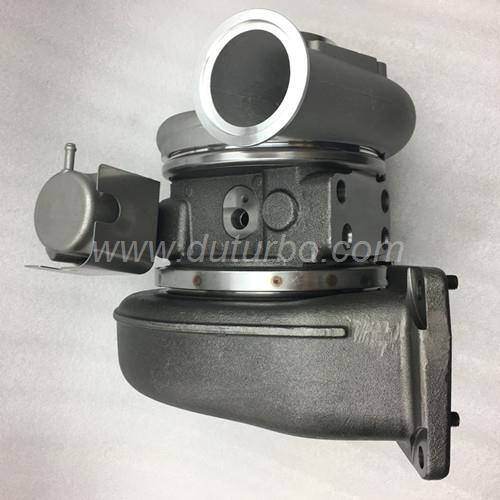

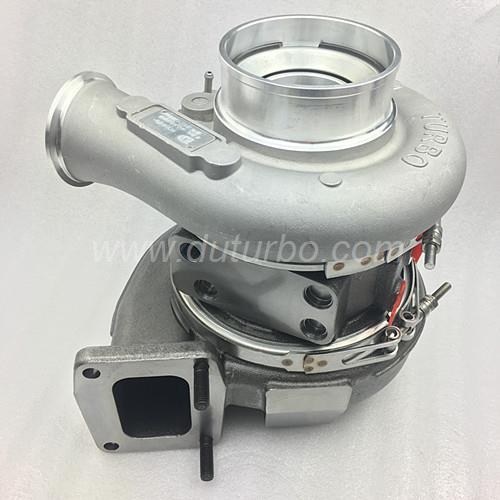

4042532 4038396 HY40V turbocharger for Iveco Bus Truck CURSOR 8 Engine 3773780 3594774 3594910 3594948 3595923

4042532 4038396 HY40V turbocharger
Model : HE451Ve HE400VG HY40V
Part Number 4046933 4046934, 4046935, 4046936, 4043519
Previous Version: 4043518, 4043517, 4043388, 4042543, 4041644, 4039900 4039383 4039381 4038382, 4039378
OE number 504108310, 504108311, 504108312, 504252241, 504252242, 504252243
CHRA 4034044
Engine CURSOR 8, CURSOR 8 (F2B)
VG actuator Kit 4031461
Replaced By 4033524
Gasket (turbine inlet) 210873
Applications 2007- Iveco Truck with CURSOR 8 Engine

Product Detail

Product Description

Part Number	5322526
Previous Version	3773780, 3791425, 4046928, 4033191, 4033191H, 4033191HX, 4033309HX
OE number	05042521460, 05042521480, 05042522340, 05042522350, 504252235, 504252234, 504252148, 504252146, 5042521460, 5042522340, 5042522350, 5042521480
Description	Truck
Manufacturer Part Number	4046929, 4046930, 4046931, 4046932
CHRA	4034044 (4034029)
Turbo Model	HY40V, HE400VG
Engine	CURSOR 8
Capacity	7.8L, 7800 ccm
Power	275 HP
Cylinder	6L
Engine Model	CURSOR 8-F2B
Set speed sensor	4027556
Fuel	Diesel
Angle α (compressor housing)	55/270/299º
Angle β (turbine housing)	230/300º
Turbine Wheel	3595129 (Ind. 67. mm, Exd. 76. mm, 12 Blades) NEW IN STOCK
Comp. Wheel	3598705
Repair Kit	4031440 (1154040750)
Turbine Housing AR	VGT
VG actuator Kit	4031461
Gasket (turbine inlet)	210140
Replaced By	4033191
