06K145722H S3-550F Stage 1 G25-550 floating bearing CORE IS38 Upgraded turbo for Audi S3 2.0 550hp

Product Detail

Product Details

part number	S3-550F Stage 1
PART NO.	Powermax G25-550
OEM NO.	S3-550F
CHRA	G25-550 FLOATING bearing cartridge
BEARING HOUSING	FLOATING BEARING HOUSING
Turbine Wheel	1050C / 1922F
Displacement	2.0L
Compressor Wheel Inducer:	48mm
Compressor Wheel Exducer	60mm
turbine housing	1.4848
Compressor Wheel Trim	65
Turbine Wheel Inducer	54mm
Turbine Wheel Exducer	49mm
turbine WHEEL TRIM	84
turbine housing inlet	OEM twin scroll
turbine housing outlet	OEM V-BAND
power	up to 550hp
Fuel	gas /patrol

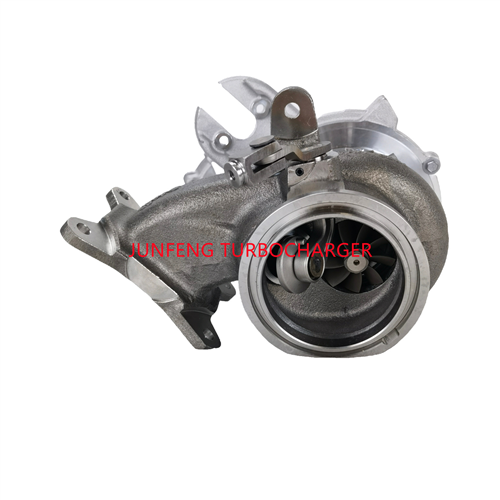

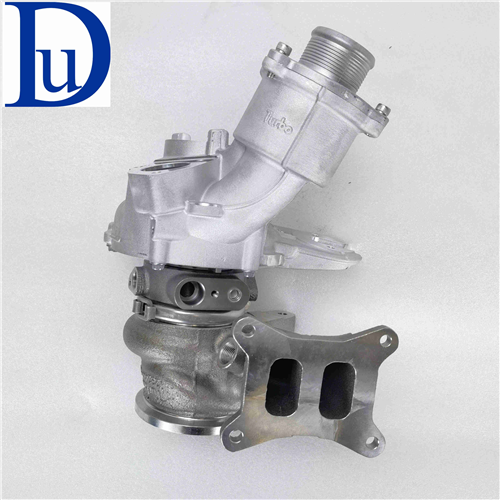

NOTE	THE picture turbo is without actuator now.
upgraded turbocharger PN	IS12 06K124713L IS20 06K145875M IS38 06K145722H

Turbine wheel upgrade to 49/54mm 9 blades

Compressor wheel upgrade to 48/60mm 9 blades

This turbo supports up to EA888 480 horsepower.

Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response.

The new turbine wheel flows 20-35% more than pre-upgrade and has peak efficiency of 74%.

The wastegate flapper is made of K418 super alloy and is capable of handling exhaust gas temperatures up to 1050 degrees C.

Turbine housings are made from stainless steel to provide ultimate durability and temperature resistance up 1050 degrees C.

Cast with original material stainless steel 1.4848 310s.

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

Application

Vehicle Applications:

turbocharger used for Audi TT 2014 + Base 2.0L L4 - Gas IS20
turbocharger used for Audi TTS 2014 + Base 2.0L L4 - Gas IS38
turbocharger used for Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
turbocharger used for Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
turbocharger used for Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2015 Base 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2016 Base 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
turbocharger used for VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2017 Base 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2018 Base 2.0L L4 - Gas IS38
