  3. Audi S3 S3-660BM Stage 2 G25-660 TURBO Upgrade IS38 IS20 IS12 Upgraded turbocharger
  • Audi S3 golf Gti IS38 Turbo upgrade 54mm 660hp S3-660BM Stage 2 G25-660

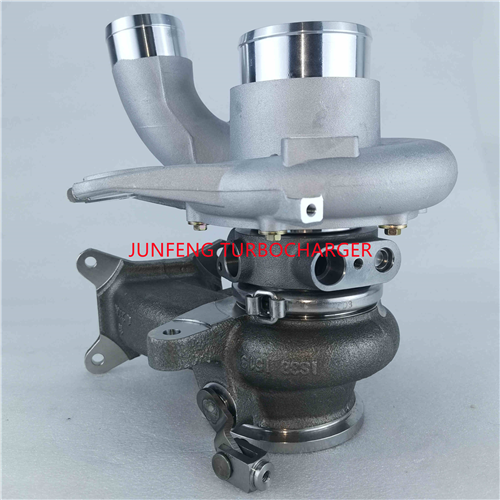

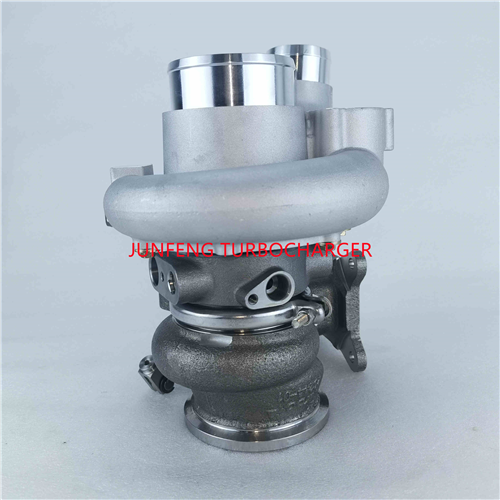

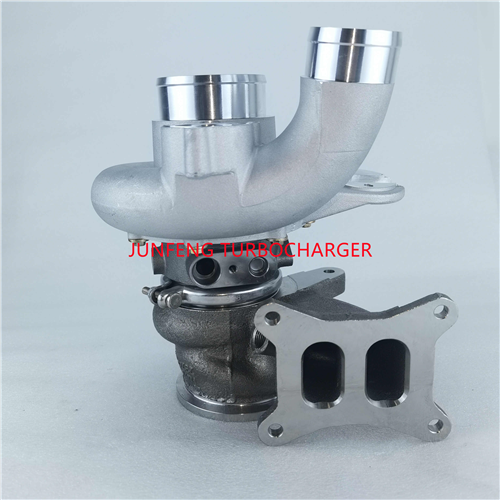

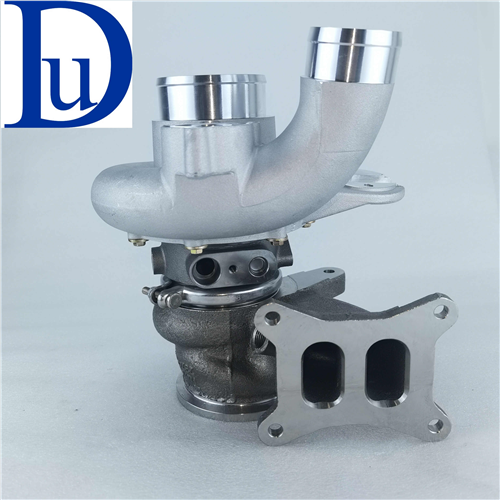

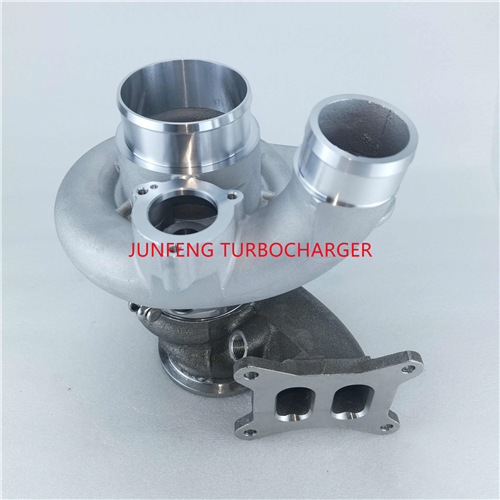

Audi S3 S3-660BM Stage 2 G25-660 TURBO Upgrade IS38 IS20 IS12 Upgraded turbocharger

  • S3-660BM
  • Model : S3-660BM
  • turbo model : IS38 IS20 IS12
  • Part NO.: IS12 06K124713L,IS20 06K145875M,IS38 06K145722H
  • Displacement 2.0L
  • MOQ: 1PCS
  • condition: brand new
  • MANUFACTURER: BOOSHIWHEEL
  • bearing : ball bearing
  • CHRA: G25-660 BALL bearing cartridge
  • NOTE: This turbo is sold without the Electronic Actuator

Product Detail

Product Details

part number

Stage 2 = S3-600BM
PART NO. Powermax G25 G25-660
OEM NO. S3-600BM
CHRA G25-660 BALL bearing cartridge
BEARING HOUSING CERAMIC BALL BEARING HOUSING
Displacement 2.0L

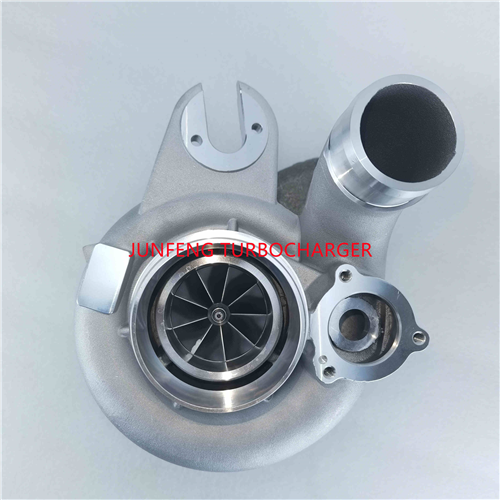

Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer 67mm
Compressor Housing A/R 0.70
Compressor Wheel Trim 62

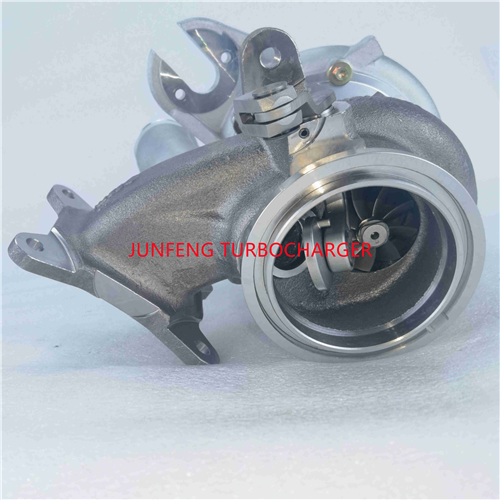

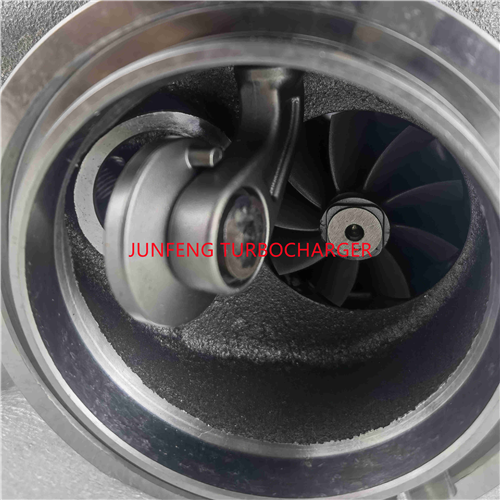

Turbine Wheel Inducer 54mm
Turbine Wheel Exducer 49mm
turbine  Housing A/R 0.72
turbine housing inlet OEM twin scroll
turbine housing outlet OEM V-BAND
Fuel gas /patrol

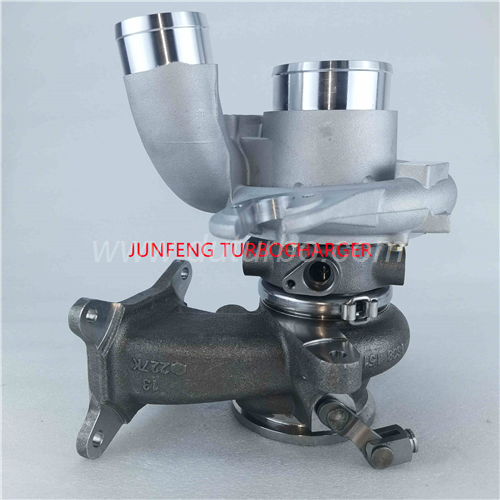

NOTE THE picture turbo is without actuator now.
upgraded turbocharger PN
  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H





Application

Vehicle Applications:

  • turbocharger used for Audi TT 2014 + Base 2.0L L4 - Gas IS20
  • turbocharger used for Audi TTS 2014 + Base 2.0L L4 - Gas IS38
  • turbocharger used for Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • turbocharger used for Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • turbocharger used for Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2015 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2016 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2017 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2018 Base 2.0L L4 - Gas IS38

OEM Turbocharger Applications:

  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H

Note:

  • Complete water and oil fitting kit included
  • Gasket Kit included
