  3. S3-660B Stage3 upgrade turbo with G30-660 ballbearing core C/W:54/67 T/W:49/54 IS38 Upgraded turbocharger
  • S3-660B Stage3 IS38 upgrade turbo with G30-660 ballbearing Cartridge

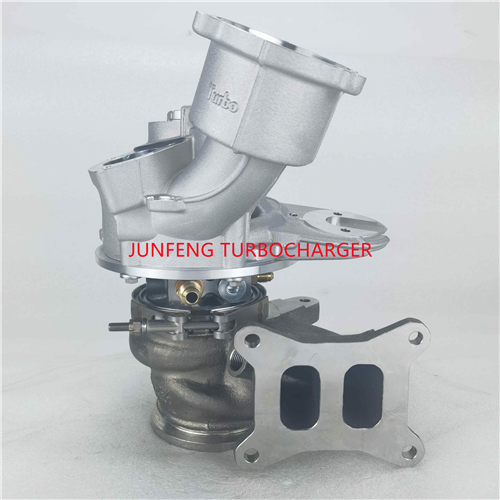

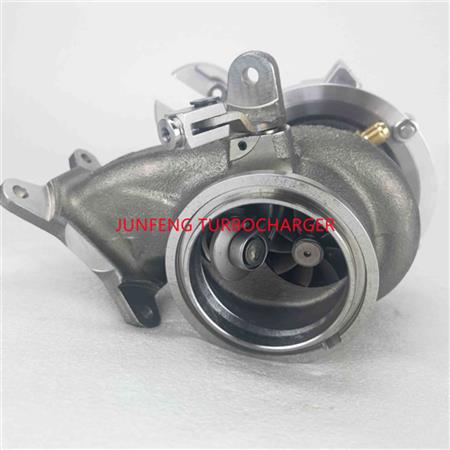

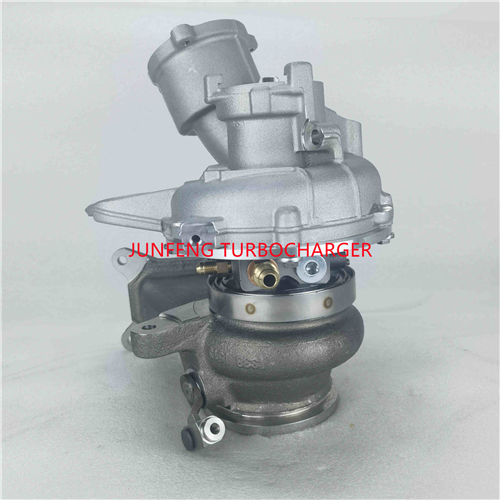

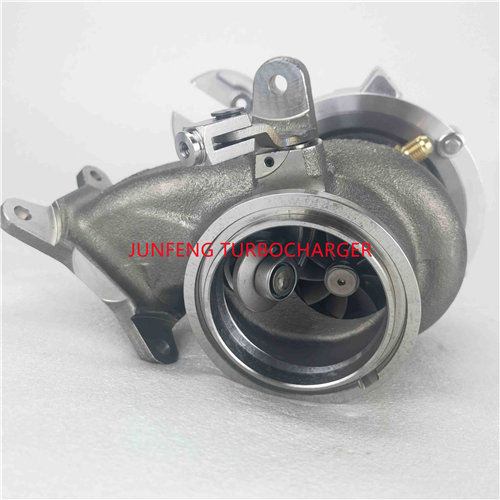

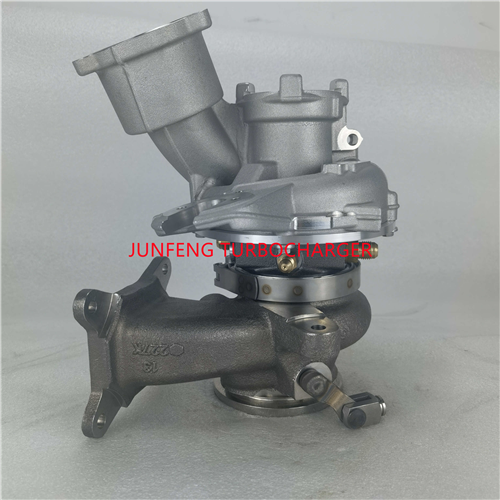

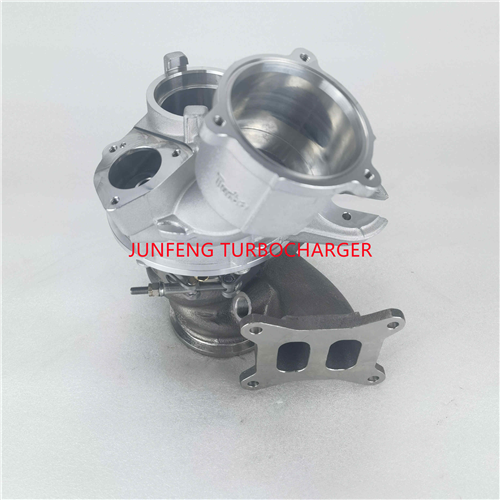

S3-660B Stage3 upgrade turbo with G30-660 ballbearing core C/W:54/67 T/W:49/54 IS38 Upgraded turbocharger

  • S3-660B Stage3 upgrade turbo
  • Model :S3-660B
  • part number : S3-660B Stage3 upgrade turbo with G30-660 ballbearing core
  • TURBO PART NUMBER: IS12 06K124713L IS20 06K145875M IS38 06K145722H
  • ENGINE MODEL: EA888
  • Compressor Wheel :54MM/67MM
  • TURBINE WHEEL : 49MM/54MM
  • Fuel: diesel
  • condiction:brand new
  • Displacement 2.0L
  • Application: turbocharger used for VW Golf GTI R

Product Detail

Product Details

part number

S3-660B Stage3 G30-660
PART NO.
  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H
OEM NO. S3-660B
CHRA G30-660  Germany Highflow ballbearing core
BEARING HOUSING BALL BEARING HOUSING
Turbine Wheel  1050C / 1922F 9BLADES
Compressor wheel  point billet wheel 9BLADES
Displacement 2.0L
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer 67mm
turbine housing  1.4848
Compressor Wheel Trim 65
Turbine Wheel Inducer 54mm
Turbine Wheel Exducer 49mm
turbine  WHEEL TRIM 84
turbine housing inlet OEM twin scroll
turbine housing outlet OEM V-BAND
power up to  660hp
Fuel gas /patrol

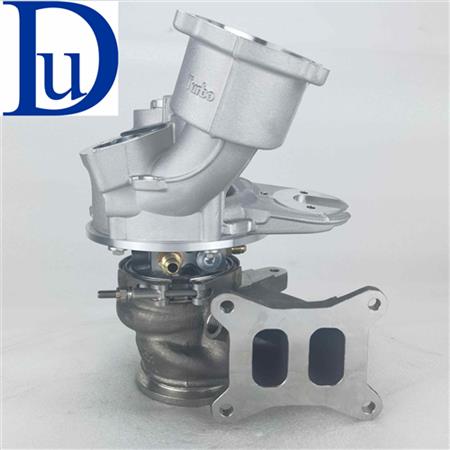

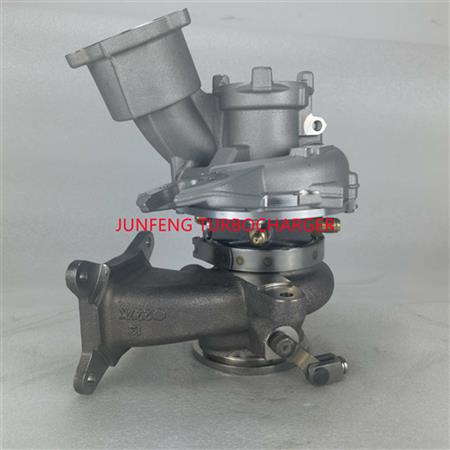

NOTE THE picture turbo is without actuator now.
upgraded turbocharger PN
  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H





This turbo supports up to EA888 660 horsepower.

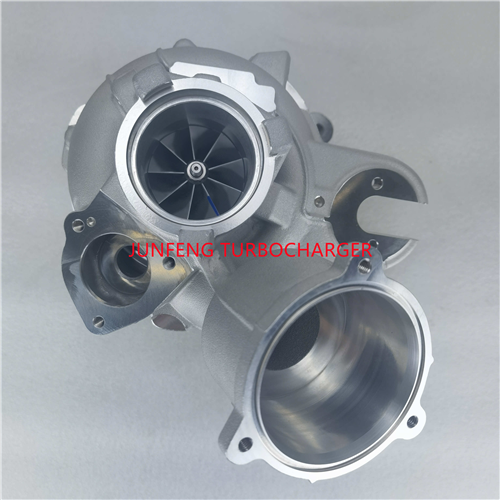

Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response.

The new turbine wheel flows 20-35% more than pre-upgrade and has peak efficiency of 74%.

The wastegate flapper is made of K418 super alloy and is capable of handling exhaust gas temperatures up to 1050 degrees C.

Turbine housings are made from stainless steel to provide ultimate durability and temperature resistance up 1050 degrees C.

Cast with original material stainless steel 1.4848 310s.

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.





Application

Vehicle Applications:

  • turbocharger used for Audi TT 2014 + Base 2.0L L4 - Gas IS20
  • turbocharger used for Audi TTS 2014 + Base 2.0L L4 - Gas IS38
  • turbocharger used for Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • turbocharger used for Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • turbocharger used for Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2015 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2016 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2017 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2018 Base 2.0L L4 - Gas IS38

OEM Turbocharger Applications:

  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H

Note:

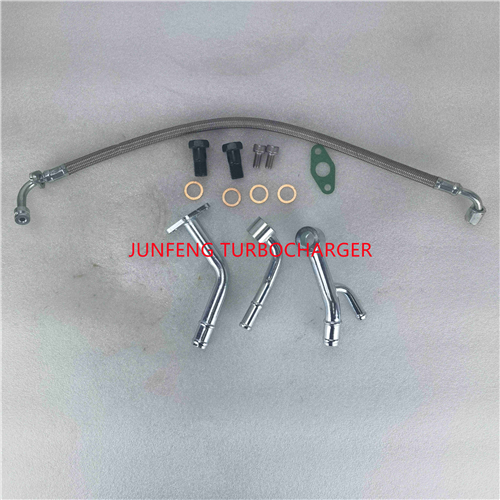

  • Complete water and oil fitting kit included
  • Gasket Kit included
