  3. S3-900BG Stage 5 IS12 IS20 IS38 Upgrade Turbocharger for AUDI S3 2.0T 900HP
  • S3-900BG IS38 Upgrade turbo stage 5 up to 500hp for EA888 engine

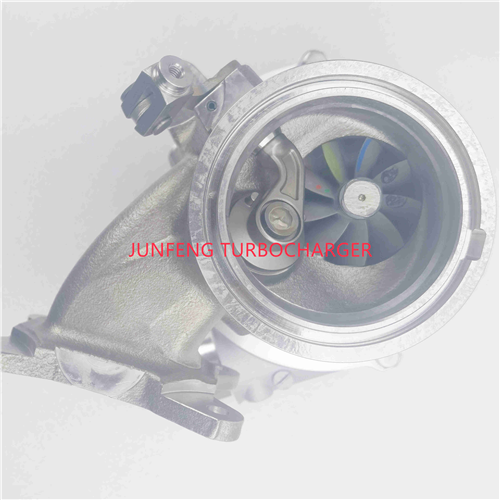

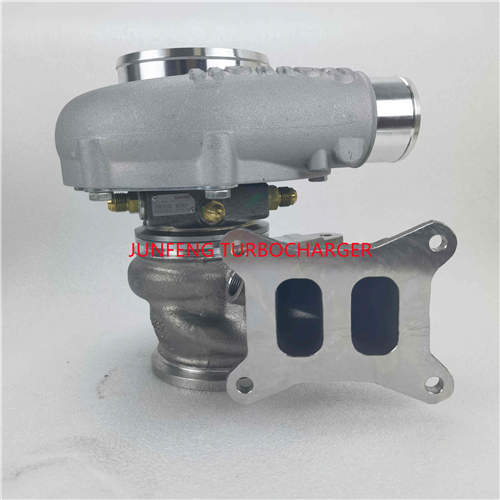

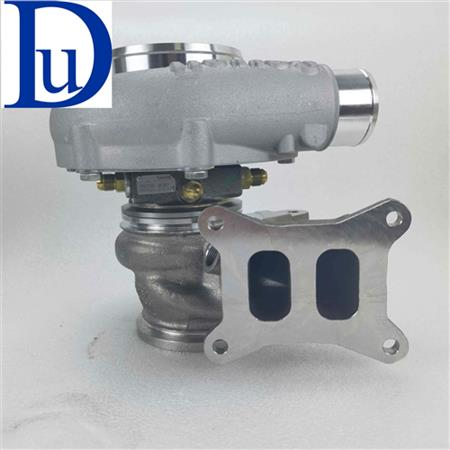

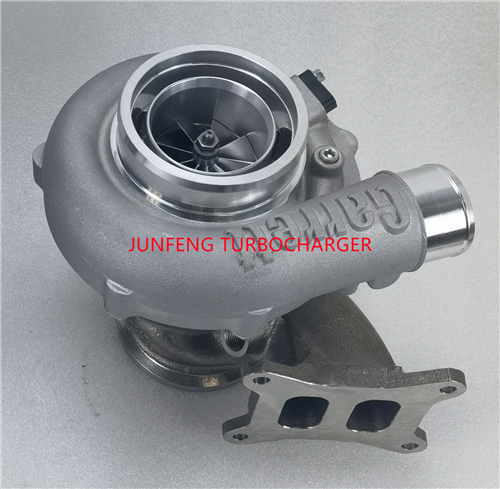

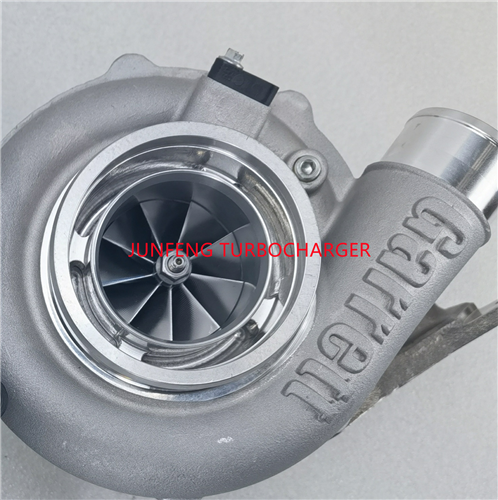

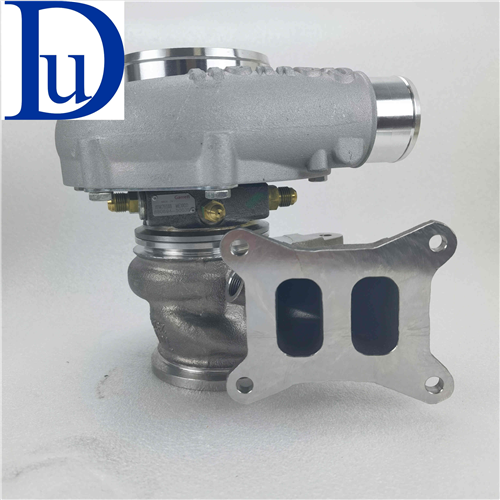

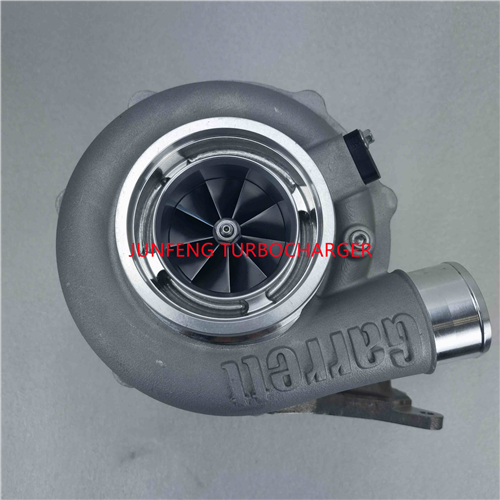

S3-900BG Stage 5 IS12 IS20 IS38 Upgrade Turbocharger for AUDI S3 2.0T 900HP

  • S3-900BG Stage 5 IS38
  • Model : S3-900BG IS38 Upgrade turbo stage 5
  • part number : S3-900BG Stage 5
  • supercore PN 880694-5003S
  • CHRA G30-900 garrett genuine cartridge
  • power up to 900hp
  • Fuel gas /patrol
  • NOTE THE picture turbo is without actuator now.
  • Displacement 2.0L
  • upgraded turbocharger PN IS12 06K124713L IS20 06K145875M IS38 06K145722H

Product Detail

Product Details

part number

Stage 5 S3-900BG
PART NO. Powermax  G30-900
OEM NO. S3-900Bg
supercore PN 880694-5003S
CHRA (G30-900 genuine cartridge wheel )
BEARING HOUSING   BALL BEARING HOUSING
Turbine Wheel Max Temp 1050C / 1922F
Displacement 2.0L
Compressor housing A/R 0.72
Compressor Wheel Inducer: 62mm
Compressor Wheel Exducer 76mm
Max Recommended Turbo Shaft Speed 165000 RPM
Compressor Wheel Trim 65
turbine housing material stainless steel
Turbine Wheel Inducer 60mm
Turbine Wheel Exducer 55mm
turbine  WHEEL TRIM 84
turbine housing inlet OEM twin scroll
turbine housing outlet OEM V-BAND
power up to  900hp
Fuel gas /patrol
NOTE THE picture turbo is without actuator now.
upgraded turbocharger PN
  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H





Application

Vehicle Applications:

  • turbocharger used for Audi TT 2014 + Base 2.0L L4 - Gas IS20
  • turbocharger used for Audi TTS 2014 + Base 2.0L L4 - Gas IS38
  • turbocharger used for Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • turbocharger used for Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • turbocharger used for Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2015 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2016 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2017 Base 2.0L L4 - Gas IS38
  • turbocharger used for VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • turbocharger used for VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
  • turbocharger used for VW Golf R 2018 Base 2.0L L4 - Gas IS38

OEM Turbocharger Applications:

  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H

Note:

  • Complete water and oil fitting kit included
  • Gasket Kit included
