  3. S400 171702 S480 400SX4 480 80mm T6 Twin Scroll 1.32 A/R TurboCharger For International Truck Detroit Diesel S60 12.7L engine
  • S400SX4 S400 S480 480 80mm T6 Twin Scroll 1.32 A/R TurboCharger 171702

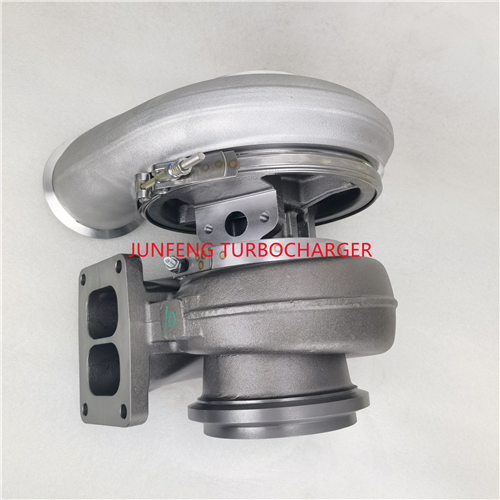

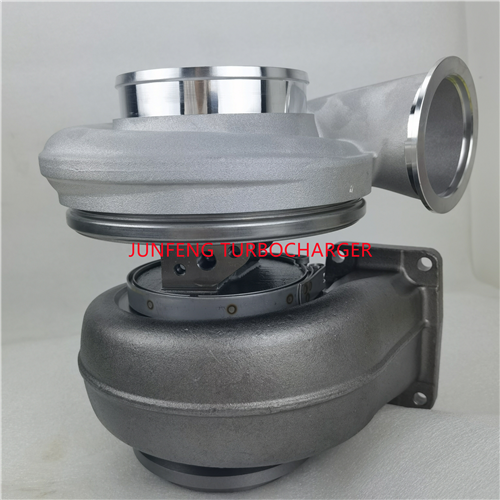

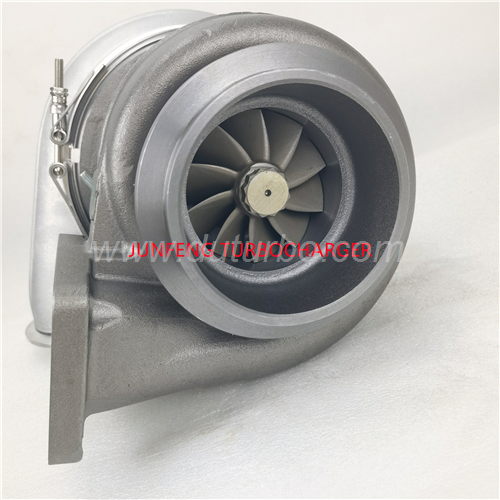

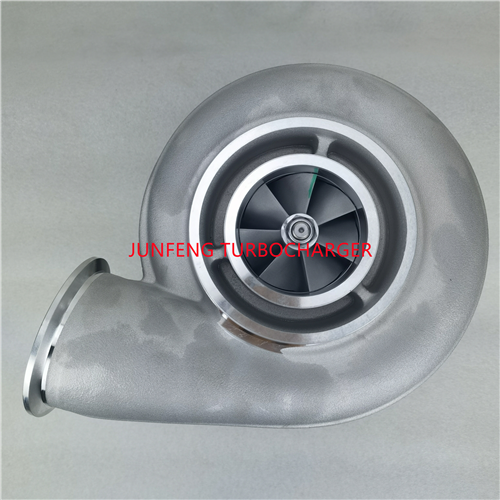

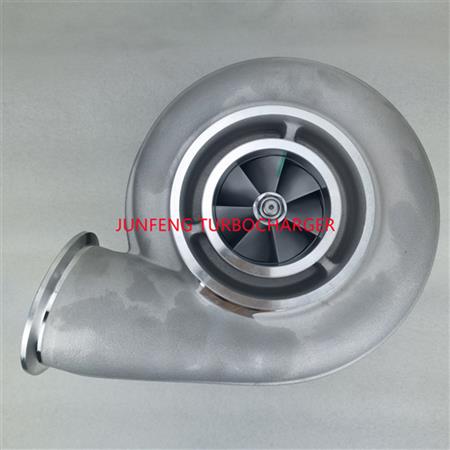

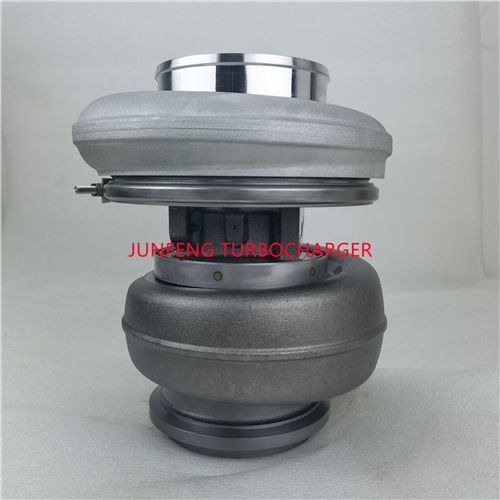

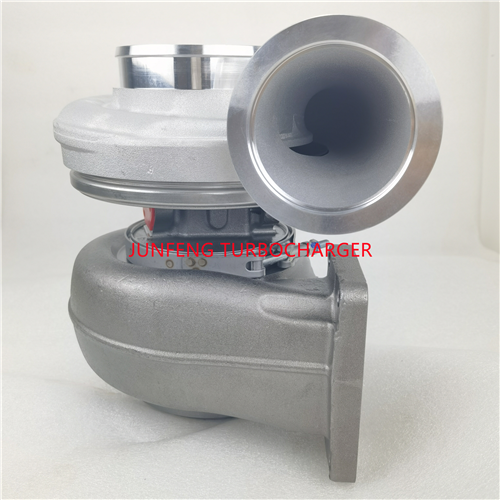

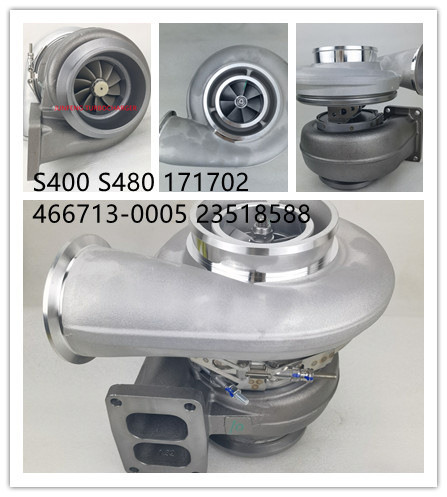

S400 171702 S480 400SX4 480 80mm T6 Twin Scroll 1.32 A/R TurboCharger For International Truck Detroit Diesel S60 12.7L engine

  • S400
  • part number : 466713-0005, 466713-5005, 466713-5005S, 466713-0006, 466713-5006, 466713-5006S
  • part numbers : 4667135 4667135005 4667135005S 4667135006 4667135006S 4667135007S 4667136 4667137 4667139005 4667139006 8S04-100-E40 8S04100E40 R23518588 R23518597
  • Part NO.:466713-5 466713-5005 466713-5005S 466713-5006 466713-5006S 466713-5007S 466713-6 466713-7 466713-9005 466713-9006 4667130005 4667130006 4667130007
  • OEM: 171702-FP 171702FP 23518588 23518588M 23518597 23518688M 23523197 2585838C91 40-30406AN 466713-0005 466713-0006 466713-0007
  • Application: Detroit Diesel Series 60
  • condition: brand new
  • Fuel: diesel
  • OEM: 14030406-101 14030406-102 14030406-103 14030406-104 14030406-105 14030406-106 14030406101 14030406102 14030406103 14030406104 14030406105 14030406106
  • Displacement 12.7L
  • ENGINE MODEL: Series 60

Product Detail

Part Number 171702
OE number 23518588, 23518597, 23523197, 2585838C91
Year 2000-08
Description Truck, Gen Set
Manufacturer Part Number 466713-0005, 466713-5005, 466713-5005S, 466713-0006, 466713-5006, 466713-5006S
CHRA 171703 (171703R, 471703)(1000070097)
Turbo Model S400 S400S062 S480
Engine DDC-MTU Series 60
Displacement 12.7L, 12700 ccm
KW 373 kW/500 HP, 410 kW/550 HP
Fuel Diesel

Description:

Billet compressor wheel with extended tip technology for the ultimate in aerodynamics

80mm Billet Compressor Wheel

96mm*88mm Inconel 713 turbine wheel for high-temperature operation

T6 Divided turbine housings in 1.32A/R with 5″ V Band Outlet 5.75 OD Marmon flange

-Item Details:
Billet Compressor Wheel: 80/113mm, 7+7

Turbine Wheel: 96/88mm

Turbine Housing: 1.32A/R Divided T6

Compressor Housing Outlet : S400 Vband

Turbine Housing Outlet: 5″ Marmon Discharge

Inlet Flange: T6 Divided

Reference Part #: 171702

Applications

2000-08 turbocharger for Navistar, International Harvester Truck with DDC-MTU Series 60 Engine
2000-08 turbocharger for Truck, Gen Set with DDC-MTU Series 60 Engine
