Product Detail
Description
| Part Number | 177475 |
| Previous Version | 175859, 175859R, 177475R, 475859, 477475, 14879880104, 1487-970-0104 |
| OEM Part Number | RE528374, RE535841, RE548269, DZ108113, SE502204 |
| Description | Various John Deere Agricultural Engines Combine |
| Manufacturer Part Number | 175859 |
| Turbo Model | S430V-087PM5-10551ANAUM, S430V087PM5105/51AN-AUM |
| CHRA | N/A |
| Displacement | 13.5L, 13500 ccm |
| Engine | 6135H PowerTech Engine |
| Fuel | Diesel |
| Model | 110 6135HRW01 9530/9630 4WD And Tracks Tractor, 6545 (Turbocharger), 115 6135HRW02 9330/9430 4WD And Tracks Tractor, 6545 (Turbocharger), 125 Engine 6135HZ006, 7350, 7450, 7550, 7750 SPFH, 6545 (Turbocharger), 126 Engine 6135HZ007, 7350, 7450, 7550, 7750 , 6545 (Turbocharger)[04E06], 9430 Tractor Engine 6135HRW02, 6135HZ006, 6545 Turbocharger |
| Tractor | 9330, 9420R, 9430, 9430T, 9470R, 9470RT, 9470RX, 9520R, 9520RT, 9520RX, 9530, 9530T, 9570R, 9570RT, 9570RX, 9630, 9630T, 6135HRW01, 6135HRW02, 6135HRW04 |
| PowerTech Engine | 6135, 6135HRW01, 6135HZ006, 6135HZ007, 6135HZ008, 6135HZ009, 6135HRW02, 6135HRW04 |
| Harvester, Ensilage And Forage (Self-Propelled) | 7350, 7450, 7550, 7750 |
| S/N | 015000-, 906000- , 120100-, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 619000 - 619999, 517000 - 517999, 619000 - 619999, 620000 - 620999, 621000 - 621999, 622000 - 622999, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 619000 - 619999, 620000 - 620999, 621000 - 621999, 622000 - 622999, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 619000 - 619999, 620000 - 620999, 621000 - 621999, 622000 - 622999, 623000 - 624999, 513822-515999, 516000 - 516999, 517000 - 517999, 620000 - 620999, 623000 - 624999 |
| Angle α (compressor housing) | 255° |
| Angle β (turbine housing) | 28° |
| Bearing Housing | (Oil Cooled) NEW IN STOCK |

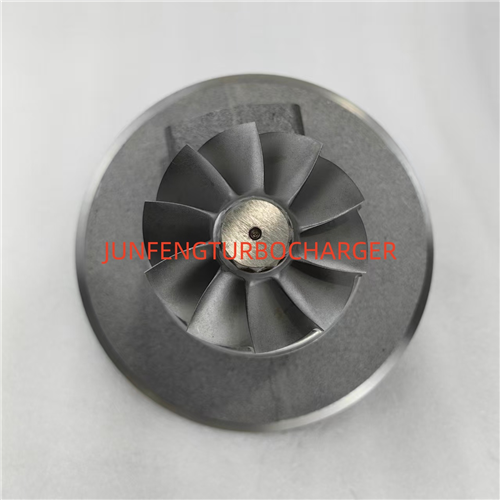

| Turbine Wheel | (Ind. 80.37 mm, Exd. 87.36 mm, 10 Blades) |

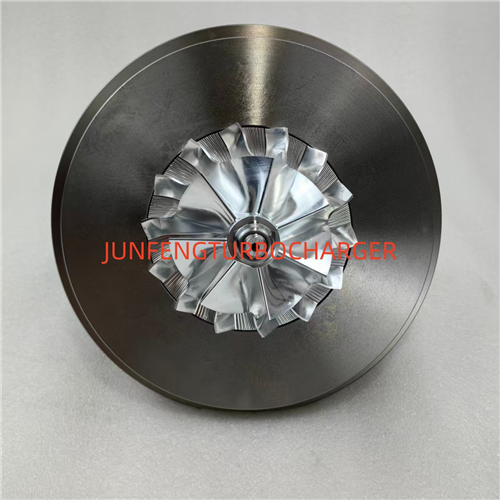

| Comp. Wheel | 175763 (Ind. 72.42 mm, Exd. 110.08 mm, 7+7 Blades, Superback) NEW IN STOCK |
| Back plate | NEW IN STOCK |
| Heat shield Number | EW IN STOCK |
| Repair Kit | (1253430750) |
| Turbine Housing AR | VTG |
| Speed Sensor | 175216 (RE523319, DSE121013PHZ) |
| Electronic Actuator | 174774 (174787, 59001107431)(RE523318)(12V)(Delphi) Includes E6354 also order (RE528219 12V) |
| Electronic Actuator Reman | RM100084 |
| Gasket (turbine inlet) | R528035 (R519305) |
| Gasket (oil outlet) | R521349 |

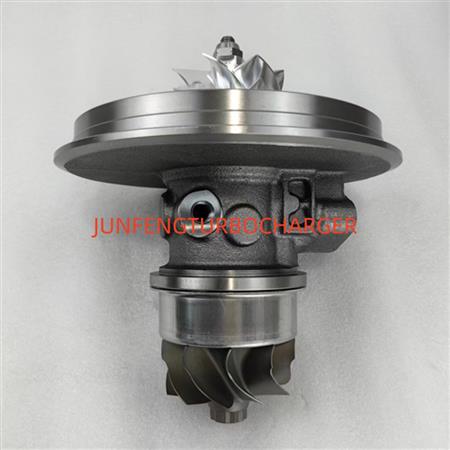

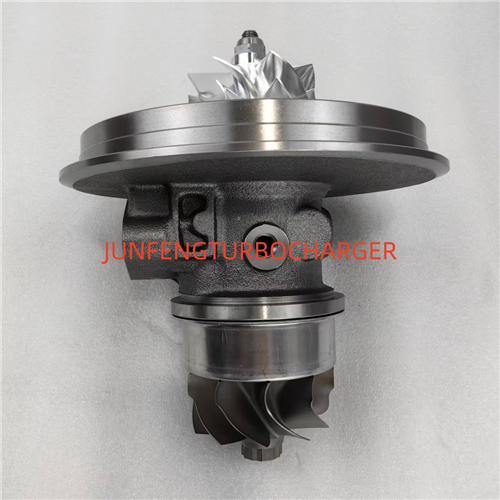

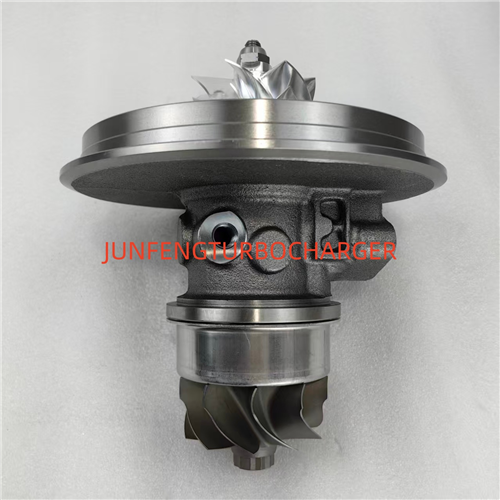

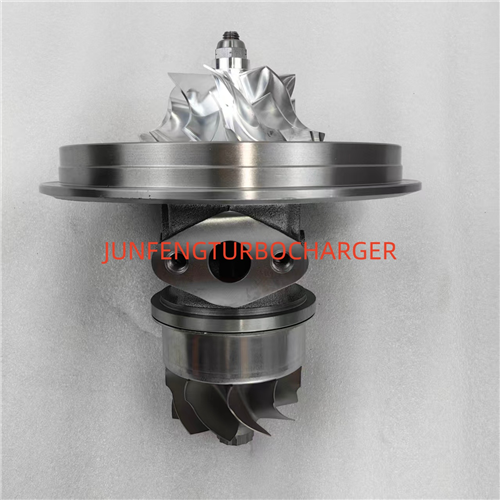

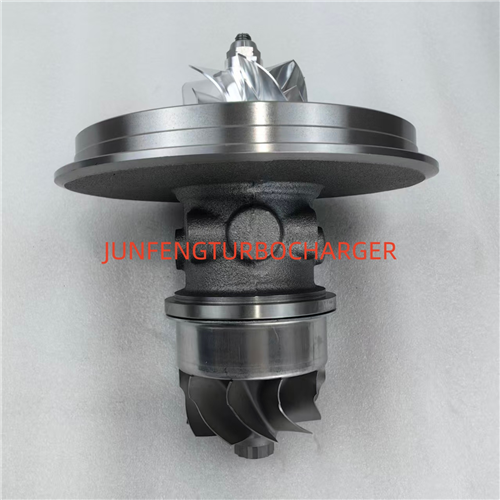

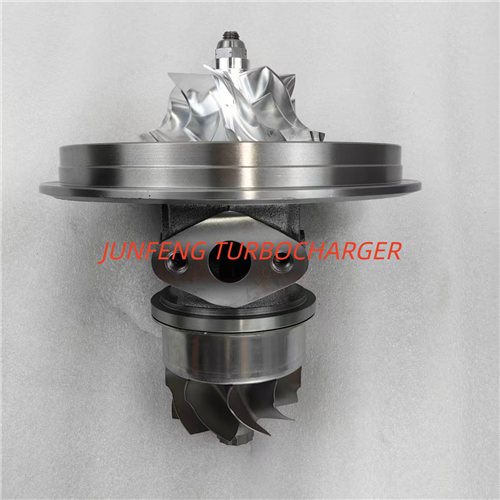

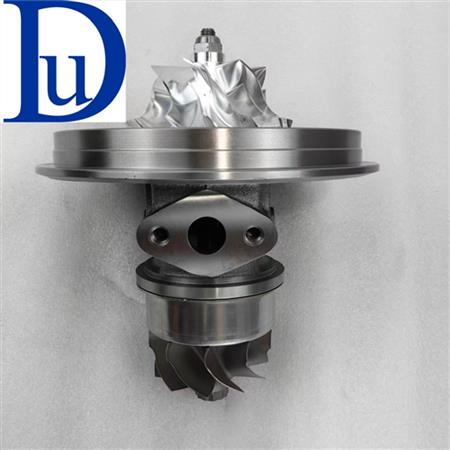

2007-11 turbocharger CHRA fits for John Deere Agricultural Engines Combine 13.5L PowerTech Engine
