58MM X 54MM 770hp S3-770BM Stage 4 G25-770 highflow APR ball bearing IS20 IS12 770HP IS38 Upgraded turbocharger MK7 Golf R Audi A3 S3 2.0

S3-770BM Stage 4 G25-770
Model : S3-770BM Stage 4 G25-770 APR
part number : IS12 06K124713L IS20 06K145875M IS38 06K145722H
OEM: 06K145874F, 06K145722T, 06K145702H, 06K145702J, 06K145702M
power: UP TO 770hp
MOQ: 1PCS
condition: brand new
Compressor wheel: 58mmx71mm (from G30-770)
Turbine Wheel : 54MM X 49MM (FROM G25 turbo)
Displacement 2.0L
Application: MK7 Golf R | Golf GTI MQB 2.0 TSI MK7.5 Golf R | Golf GTI MQB 2.0 TSI Audi S3 8V MQB Audi TT | TTS 8S MQB Seat Leon Cupra MQB

Product Detail

Product Details

part number	Stage 4 G25-770 HIGHFLOW APR
PART NO.	Powermax G25-770
OEM NO.	S3-770BM
CHRA	(G30-770 Compressor wheel +G25 turbine wheel )APR BALL bearing cartridge
BEARING HOUSING	BALL BEARING HOUSING
Turbine Wheel Max Temp	1050C / 1922F
Displacement	2.0L
Compressor Wheel Inducer:	58mm
Compressor Wheel Exducer	71mm
Max Recommended Turbo Shaft Speed	165000 RPM
Compressor Wheel Trim	65
Turbine Wheel Inducer	54mm
Turbine Wheel Exducer	49mm
turbine WHEEL TRIM	84
turbine housing inlet	OEM twin scroll
turbine housing outlet	OEM V-BAND
power	up to 770hp
Fuel	gas /patrol

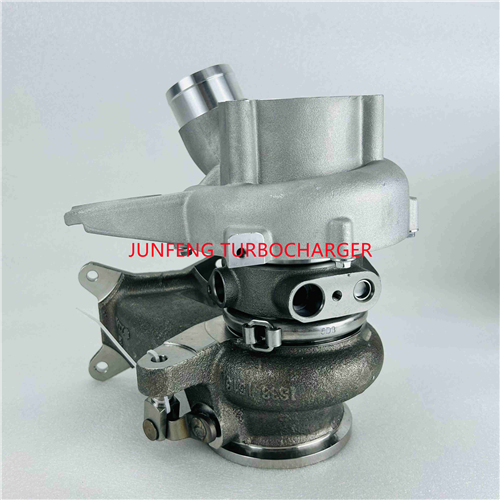

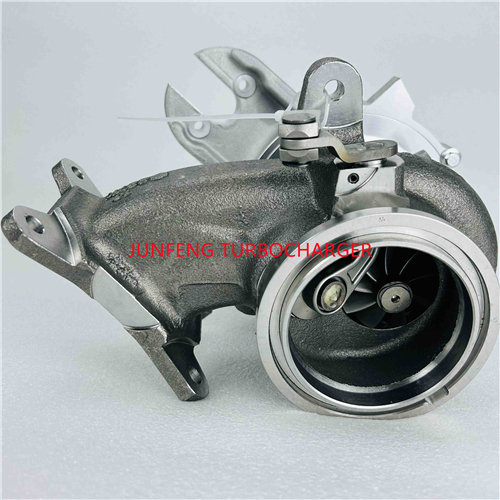

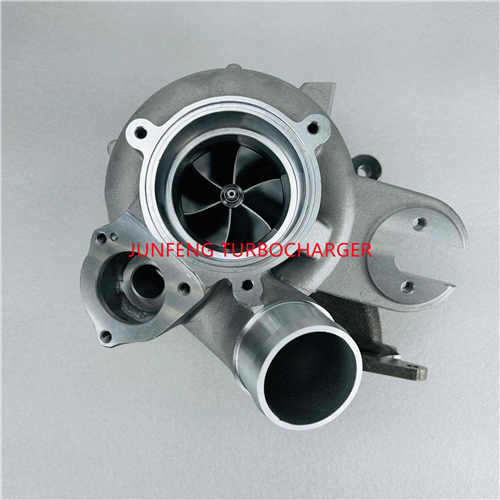

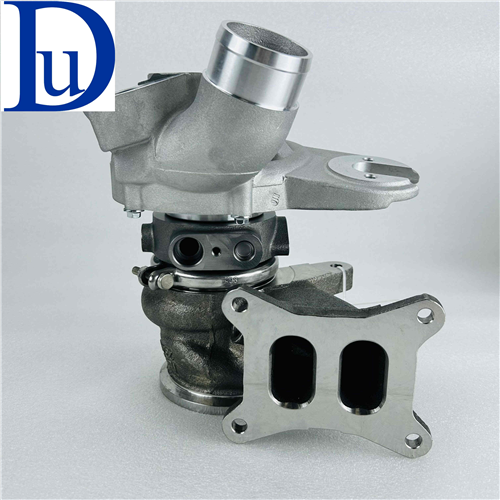

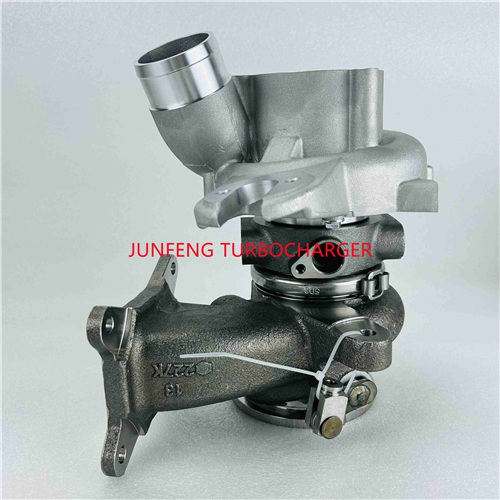

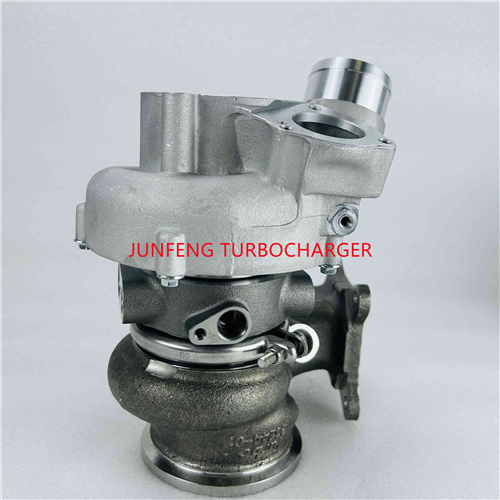

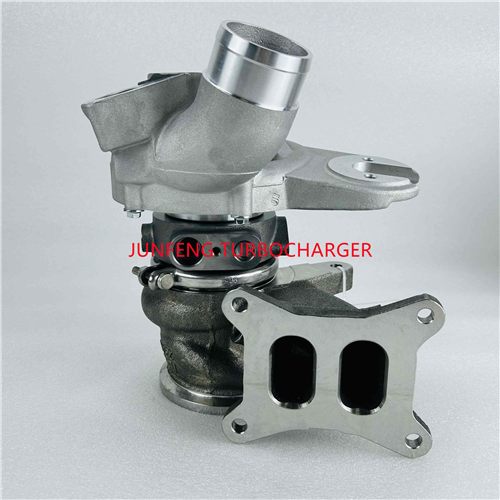

NOTE	THE picture turbo is without actuator now.
upgraded turbocharger PN	IS12 06K124713L IS20 06K145875M IS38 06K145722H

Application

Vehicle Applications:

turbocharger used for Audi TT 2014 + Base 2.0L L4 - Gas IS20
turbocharger used for Audi TTS 2014 + Base 2.0L L4 - Gas IS38
turbocharger used for Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
turbocharger used for Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
turbocharger used for Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2015 Base 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2016 Base 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
turbocharger used for VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2017 Base 2.0L L4 - Gas IS38
turbocharger used for VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
turbocharger used for VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
turbocharger used for VW Golf R 2018 Base 2.0L L4 - Gas IS38

OEM Turbocharger Applications:
