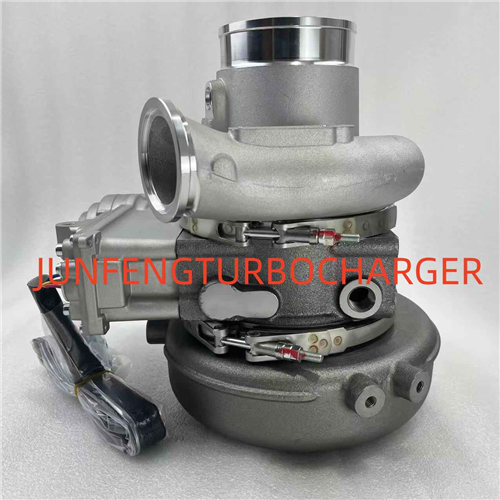

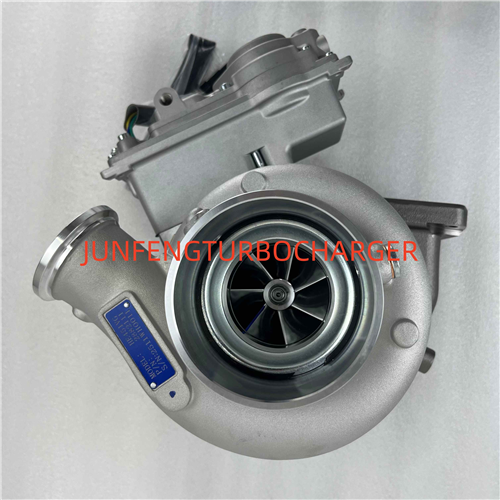

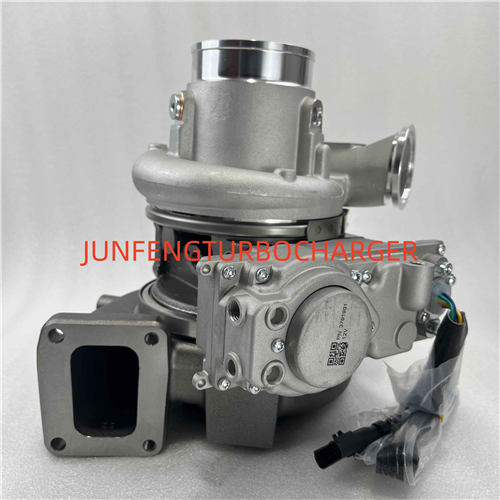

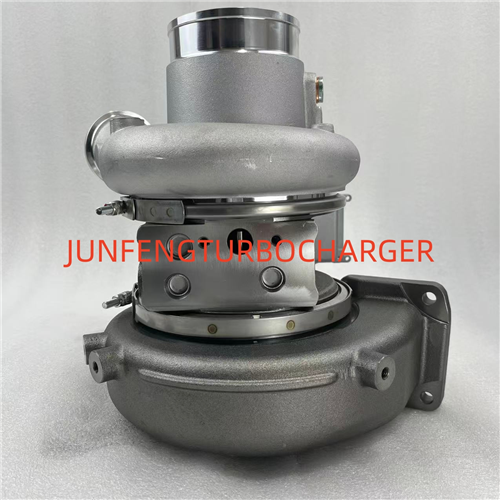

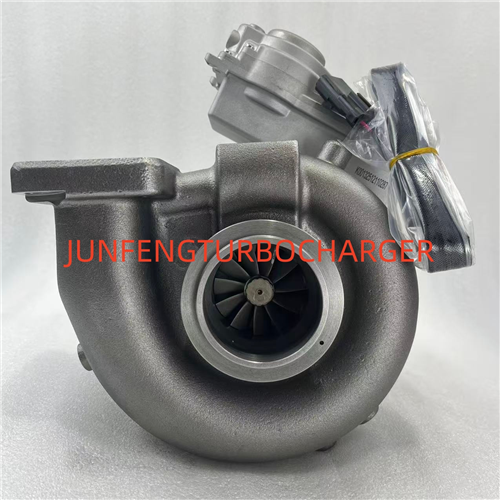

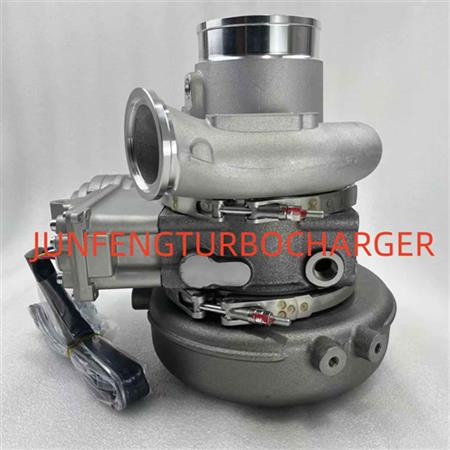

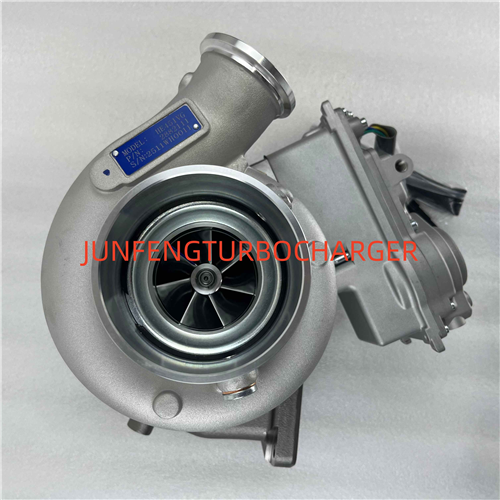

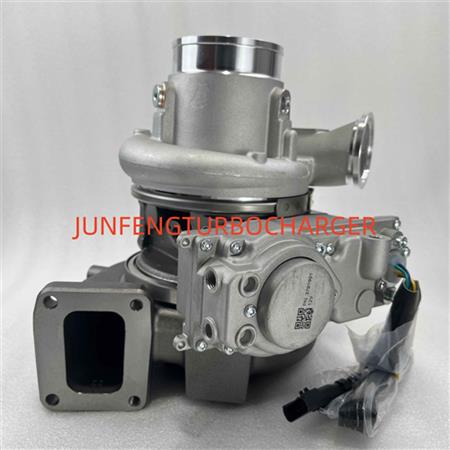

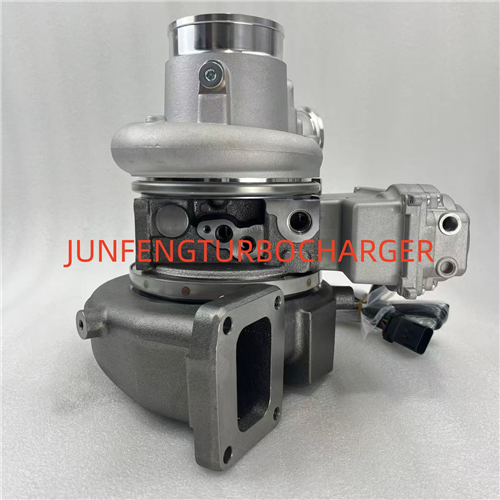

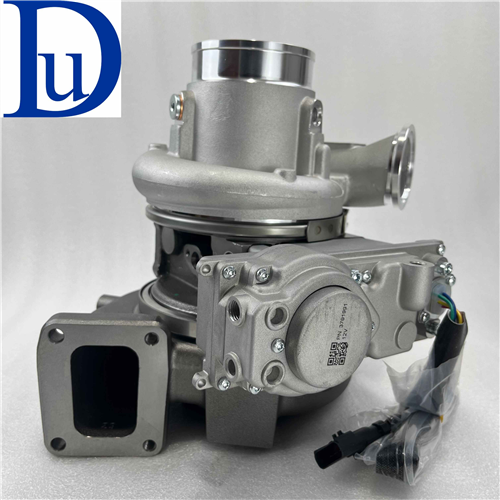

HE451VE Turbo 2882111 2882004NX 2882111NX VGT turbocharger for Cummins Various with ISX, QSX Engine

HE451VE Turbo 2882111
Model: HE451VE HE451V
Previous Version 2882004NX, 288211100, 2882111NX, 2882111RX, 2841220, 2841221, 2841222, 3768194, 3773569, 3792586, 2882111
Part Number 2881807, 2882004, 2840007, 3773562, 3773561, 2882110, 3792586H, 2882110NX, 3792586HX, 288211100HX
Year 2005-10
OE Number 8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110NX
Manufacturer Part Number 2843481
Engine ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350
engine models: X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
Displacement 15.0L, 1500 ccm
Fuel Diesel

Product Detail

Product Description

Part Number	2882111
Previous Version	2882004NX, 288211100, 2882111NX, 2882111RX, 2841220, 2841221, 2841222, 3768194, 3773569, 3792586, 2882111, 2881807, 2882004, 2840007, 3773562, 3773561, 2882110, 3792586H, 2882110NX, 3792586HX, 288211100HX
Year	2005-10
OE Number	8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110NX
Description	Various Trucks
Manufacturer Part Number	2843481
Turbo Model	HE451VE, HE400VG
CHRA	NEW IN STOCK
Engine	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
Displacement	15.0L, 1500 ccm
Fuel	Diesel
Engine Manufacturer	Cummins
Angle α (compressor housing)	275°
Angle β (turbine housing)	155°
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Nozzle Ring Assemble	NEW IN STOCK
Repair Kit	NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Electronic Actuator Kit	4034289 (28087185, 28087185-10, 2808718510, 28169119, 28169119-10, 2816911910, 2835940, 2837201, 3789667, 3789676, 3789677, 3791991, 379199100, 4032066, 4032673, 4032760, 4032760NX, 4032760RX, 4034116, 4034208, 4034210, 4034210NX, 4034210RX, 4034289, 403428900, 403428900HX, 4034289H, 4034289HX, 4034289NX, 4034289RX, 4034403, 4034403NX, 4034403RX, 4042307, 4043340, 4045108, 4045991)(12 Volts)
Gasket Kit	3685535
Superseded	5350503
NOTE	This turbo is sold without the Electronic Actuator
NOTE	Actuator it needs to be calibrated to the turbo

Applications

2005-15 turbocharger for Cummins Various with ISX, QSX Engine
