  3. HE551V Turbo 5350518 4309078 4309078NX 4309078RX VGT turbocharger for Cummins Truck Bus ISX ISX3 ISX 07 STA15 Engine
  • HE551VE Turbo 5350518 4309078 VGT turbocharger for Cummins Truck Bus ISX ISX15 ENGINE

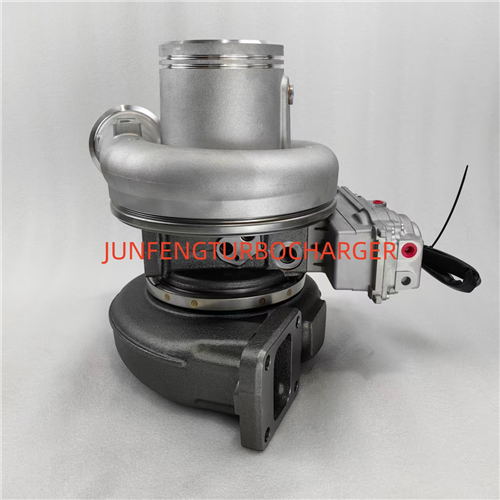

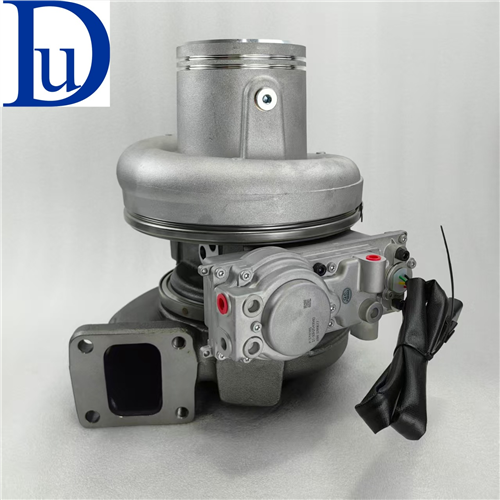

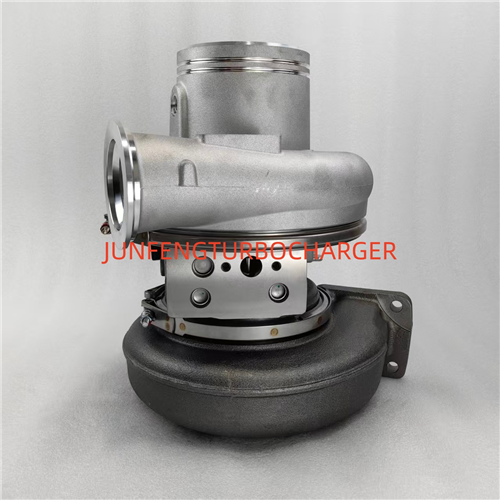

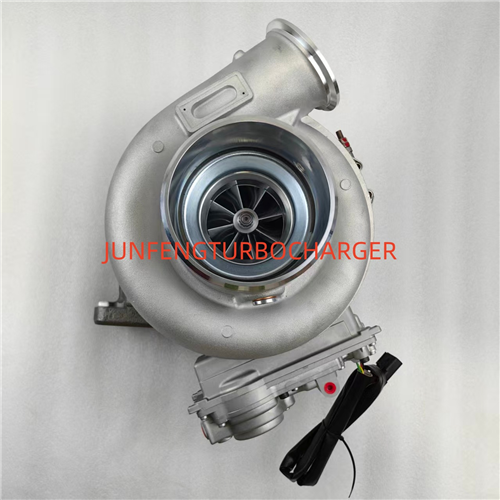

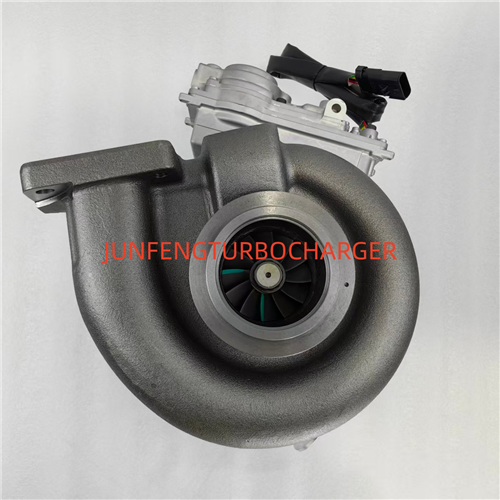

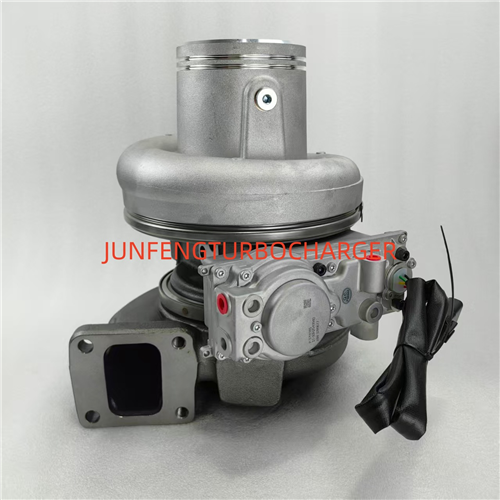

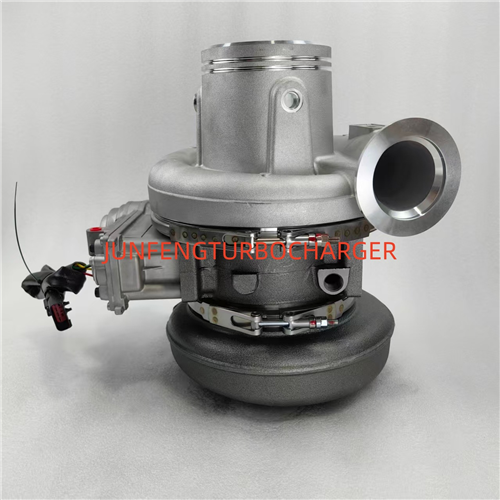

HE551V Turbo 5350518 4309078 4309078NX 4309078RX VGT turbocharger for Cummins Truck Bus ISX ISX3 ISX 07 STA15 Engine

  • HE551V Turbo 5350518 4309078
  • Model: HE551V HE551VE
  • Part Number 5350518 2836364 2836365, 2838149, 2838150 2840531 2840532 2881789 2881789NX
  • PRE-VERSION 2836364 2836365, 2838149, 2838150, 2840531, 2840532, 2881789, 2881789NX
  • OE Number 3792795HX 3795165 2881789RX, 2882000, 2882000NX, 2882000RX, 3767612, 3767618, 3767625
  • OEM: 3767633, 3774604, 3774614 3774628, 3774642, 3792775, 3792785, 3792795, 379279500, 379279500H, 3792795H,
  • Engine ISX, ISX3, ISX 07, STA15
  • Displacement 15.L, 1500 ccm
  • Manufacturer Part Number 2836365, 2838150, 2840532, 3767625, 3774628, 3792785, 4048097, 4048098
  • Part NO.: 4309078, 4309078NX, 4309078RX, 4955801, 4955801NX, 4955801RX, 4956014, 4956014NX, 4956014RX, 5350591, 5350951, 5355397, 5355403, 5495611 5495611H, 5495611HX
  • YEAR : 2007-10

Product Detail

Product Description

Part Number 5350518
Previous Part Number 2836364, 2836365, 2838149, 2838150, 2840531, 2840532, 2881789, 2881789NX, 2881789RX, 2882000, 2882000NX, 2882000RX, 3767612, 3767618, 3767625, 3767633, 3774604, 3774614, 3774628, 3774642, 3792775, 3792785, 3792795, 379279500, 379279500H, 3792795H, 3792795HX, 3795165
OE number 4956014NX, 4956014, 4955801
Description FITS FOR Cummins Various, Truck, Bus, VOLVO, PETERBILT, KENWORTH
CHRA N/A
Turbo Model HE500VG, HE551Ve
Manufacturer Part Number 2836365, 2838150, 2840532, 3767625, 3774628, 3792785, 4048097, 4048098, 4309078, 4309078NX, 4309078RX, 4955801, 4955801NX, 4955801RX, 4956014, 4956014NX, 4956014RX, 5350591, 5350951, 5355397, 5355403, 5495611, 5495611H, 5495611HX
Engine ISX, ISX3, ISX 07, STA15
Displacement 15.L, 1500 ccm
KW 480/550
Fuel Diesel
Angle α (compressor housing) 132°
Angle β (turbine housing) 155°
Bearing Housing (Water Cool) IN STOCK
Turbine Wheel 3599629 (3590433, 359962900)(Ind. 86.1 mm, Exd. 80.03 mm, Trm 10.66, 12 Blades)
Rotor Assembly 4034236
Repair Kit 4032255 (4032255H)(1154055757)
Nozzle Ring Assy ORDER ACCEPTABLE
Turbine Housing AR VGT
NOTE No Actuator



Applications

2007-10 turbocharger for Cummins Truck, Bus, Various With ISX, ISX3, ISX 07, STA15 Engine
