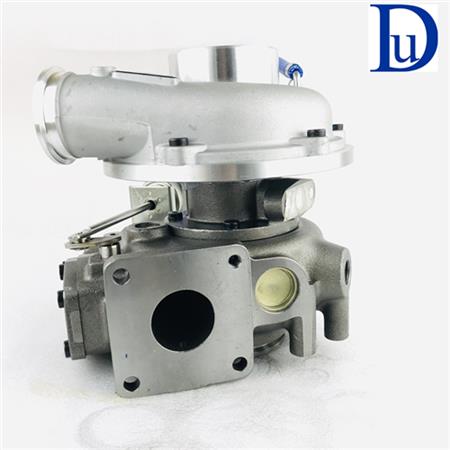

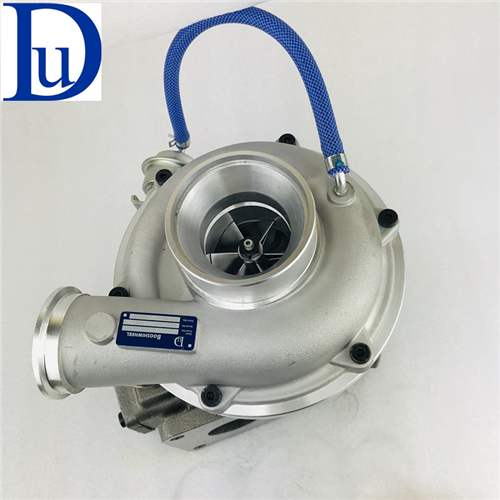

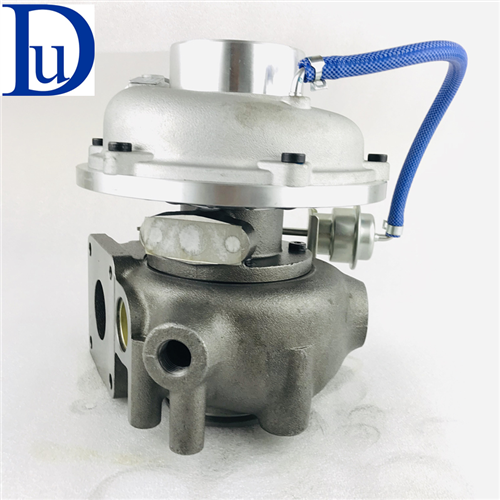

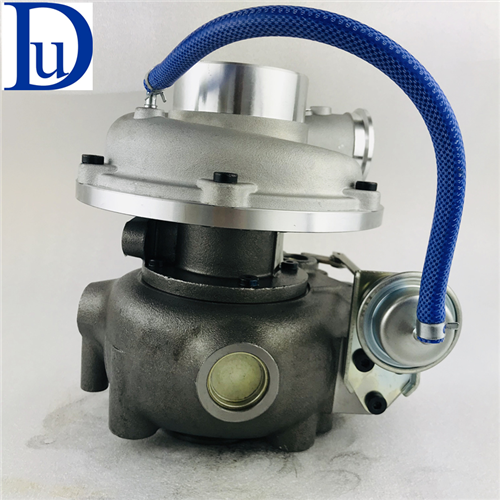

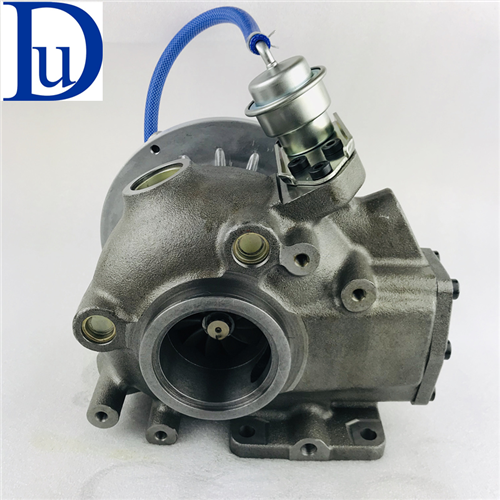

RHE62W Turbo VC720033 MYBH 119775-18010 Turbocharger used for Yanmar Marine 6LP-STE Engine
Turbo Product Description
| Part Number | VC720033 |
| Previous versions | VA720033, VB720033 |
| IHI Part Number | 6T-609, 6T609 |
| OE number | 11977518010, 119775-18010, 11977518011, 119775-18011 |
| Short V-spec | MYBH |
| Description | Marine |
| CHRA | VAX10016 $790.00 NEW |
| Turbo Model | RHE62-118003P22NWBRB584CCZ |
| Engine | 6LP-STE, 6LP-DTE, 6LP-DTZE, 6LP-DTZE(P)1, 4JHL-HAT |
| Displacement | 41.64L, 4164 ccm, 6 Cylinders |
| KW | 315 HP |
| NSN | 2950-01-536-9379, 2950015369379 |
| Angle α (compressor housing) | 225° |
| Angle β (turbine housing) | 340° |
| Bearing Housing | NH362709 $403.92 |
| Turbine Wheel | NH361206 $898.32 |
| Comp. Wheel | NH364606 $449.16 |
| Back plate | NH362112 $144.14 |
| Heat shield Number | NH365303/NN137055 (38T-013) $10.25 |
| Repair Kit | NH369801 (2445200) $129.00 NEW IN STOCK |
| Turbine Housing (Water-Cooled) | NH365418 $1906.50 |
| Compressor Cover | NH365419 |
| Turbine Housing AR | 22 |
| Actuator | NH961260/NH961180 $539.64 |
| Gasket(turbine inlet) | 119773-18250 $22.81 |
| Gasket | 23414-100000 |
| Gasket | 23414-080012 |
| Silencer | 119773-18850 $313.49 |
| Plug PF1/8 | 23893-010002 |
Application
1997-01 Yanmar Marine with 6LP-STE Engine
Product Show
