Product Detail
Product Description
| Part Number | 465032-5001S |
| Previous Version | 465032-0001, 465032-9001, 465032-1 |
| OE number | 6N7203, 0R5841 |
| Description | Earth Moving |
| CHRA | 407505-0014 (407505-9014S, 6N7202, 6N8653, 0R5908)(407505-0064, 112014-0000)(1100120704) $959.59 NEW IN STOCK, MADE IN USA |
| Turbo Model | T1238 |
| Engine | D342 |
| Prefix | 61A, 78V, 36A, 46A, 76V, 77V, 99Z, MGC |
| Fuel | Diesel |
| Bearing Housing | 406866-0003 (9L6243)(112025-0000)(1100120455) |
| Turbine Wheel | 406845-0005 (8S5167, OR5396)(112011-0000)(Ind. 88.4 mm, Exd. 77.7 mm, 11 Blades)(1100120436) |
| Comp. Wheel | 408178-0011 (6N7200)(112020-0000)(Ind. 62.53 mm, Exd. 86.39 mm, Trm 0.25, 6+6 Blades, Billet, Superback)(1100120405) |
| Back plate | 406834-0002 (3S4486, 4S6479, 8S5169)(406308-0000, 112045-0000)(1100120300) |
| Heat shield Number | 409368-0000 (3S4490, 9S9327, 7N3760)(407574-0002, 407778-0001, 112121-0000)(1100120340) |
| Repair Kit | 468109-0000 (2W0719, 3545839, 409282-0000, 468108-0000, 468177-0000, 188411-0000, 188402-0000, 112098-0000)(1100120753) |
| Turbine Housing | 406482-0023 (8S5165) |
| Compressor Cover | 407009-0137 (6N7201) |
| Turbine Housing AR | 1.54 |
| Gasket (turbine inlet) | 409038-0000 (210017-0000, 9749, 1S4295, 202873, 205396, 3500683, 132040)(1900000003) |
| Gasket oil inlet | 210019 (129119, 409266-0003, 3819900, 9737, 1S6595, 201049)(1900000035) |
| Gasket (oil outlet) | 210018 (129120, 201048, 409267-0002, 1S4810, 3709738, 3500682, 3519763, 9738, 9988, 210018-0000)(1900000025) |

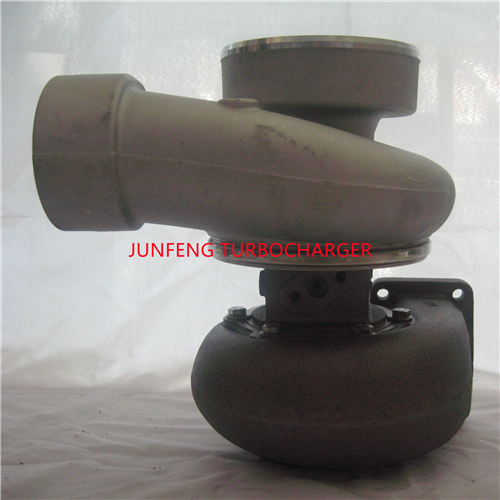

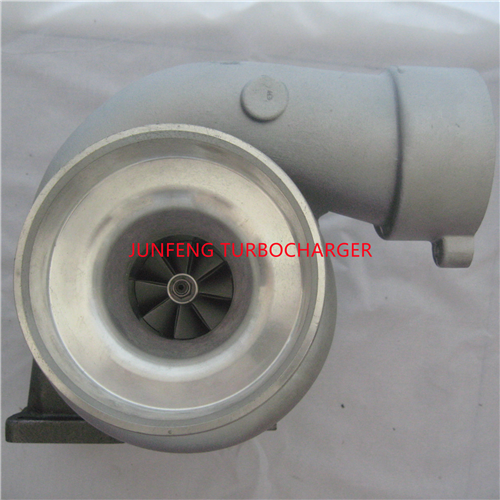

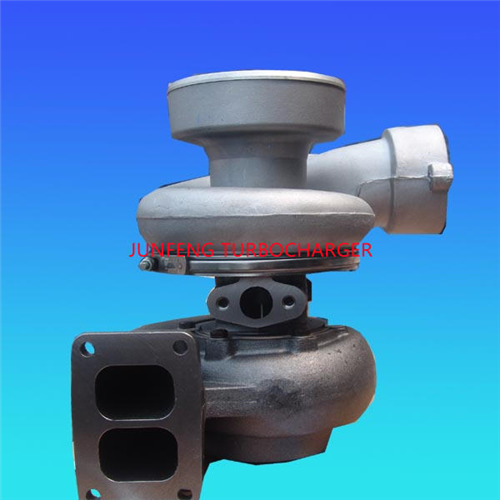

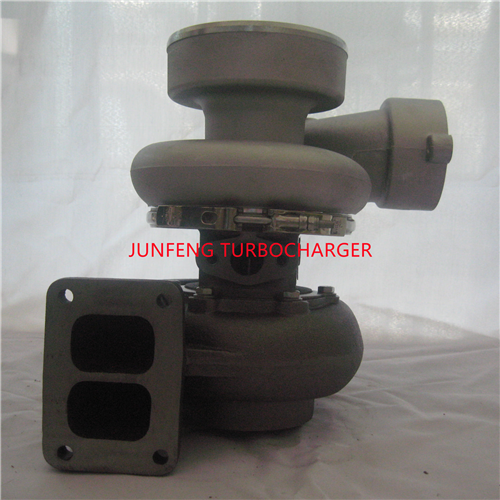

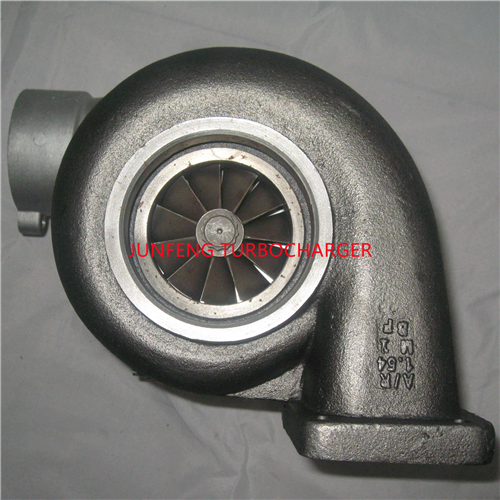

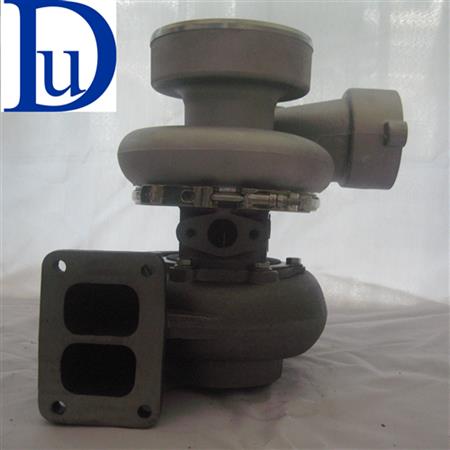

turbocharger for Caterpillar Earth Moving D8K, 583K with D342 Engine
