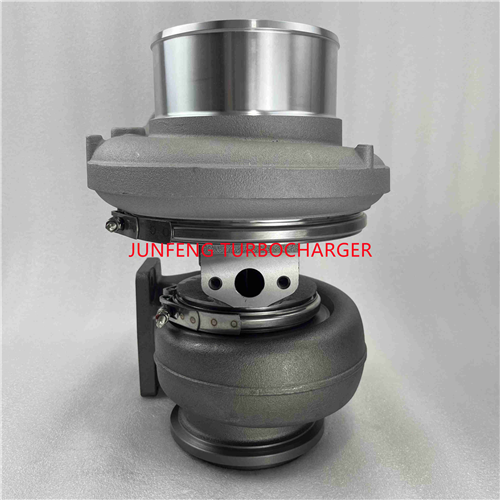

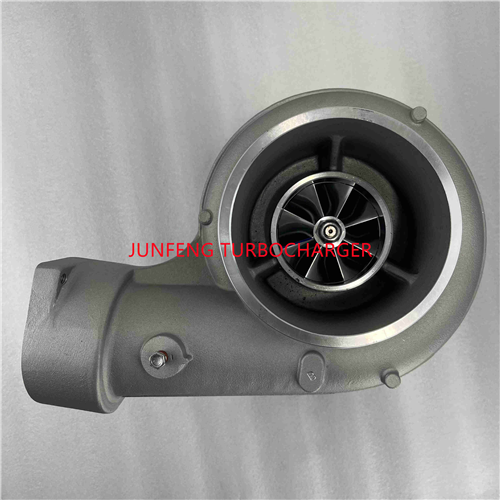

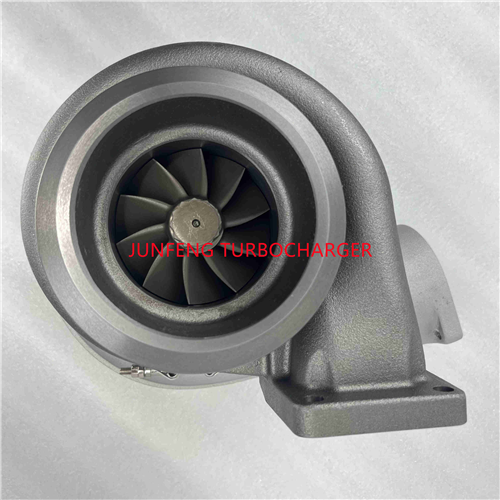

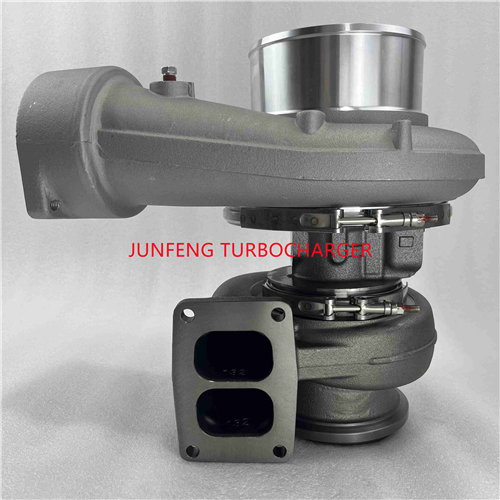

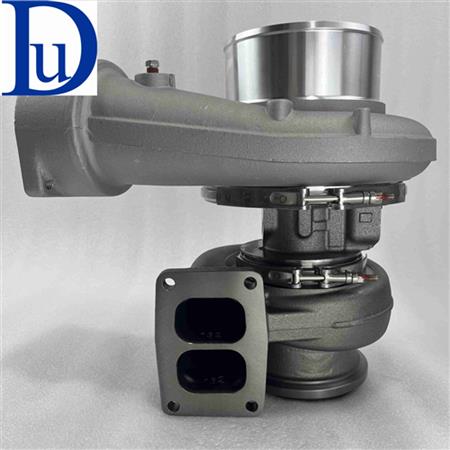

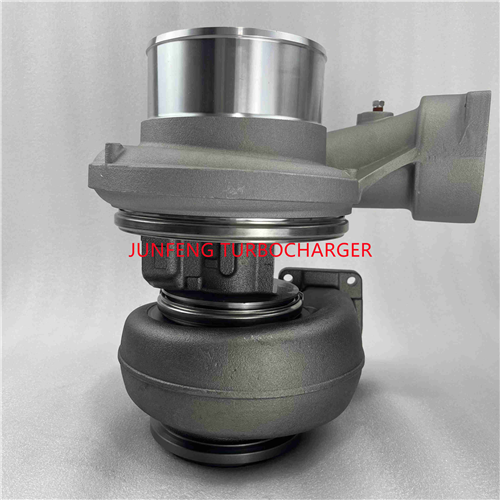

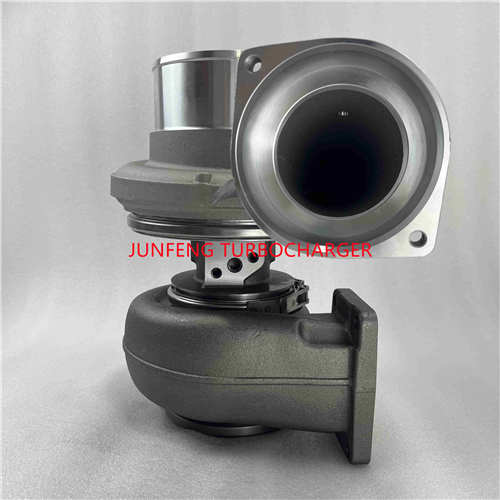

S410G S410SX 177148 14969880000 S480 Turbocharger for Caterpillar 3406 C15 C16 Diesel Engine

S480 14969880000
Model : S480 S410G S410SX S410SX-105S74/96TM11.32VTF S480 S478 s400sx
part number : 14969880000
interchangeable numbers : 466445-0015 466445-5015 466445-5015S 466445-0018 466445-5018 466445-5018S 466445-0021 466445-5021 466445-5021S 466445-0023 466445-5023 466445-5023S
Previous Version: 471142-0003 471142-5003 471142-5003S 471142-0005 471142-5005 471142-5005S 471142-0007 471142-5007 471142-5007S
OE NO.: 169227 170354 175963 177148 704604-0007 704604-5007 704604-5007S
MOQ: 1PCS
Fuel: diesel
condition:brand new
ENGINE 3406 C15 C16
power 475- 600hp

Product Detail

Product details

Part Number	14969880000
pre-version	1496-988-0000
OE numbers	169227 170354 175963 177148
interchangeable numbers	466445-0015 466445-5015 466445-5015S 466445-0018 466445-5018 466445-5018S 466445-0021 466445-5021 466445-5021S 466445-0023 466445-5023 466445-5023S 471142-0003 471142-5003 471142-5003S 471142-0005 471142-5005 471142-5005S 471142-0007 471142-5007 471142-5007S 704604-0007 704604-5007 704604-5007S
Turbo Model	S410SX S410SX-105S74/96TM11.32VTF S480 S478 s400sx
YEAR	2004-05
ENGINE	3406 C15 C16
Displacement	15.0L 16.0L
Fuel	Diesel
power	475- 600hp
CHRA	14009097002
GASKET KIT	DGK0113
Compressor wheel inducer	3.08 in (78mm)
compressor wheel Outside Diameter	4.14 in (105.12mm)
repair kit	14007110003
Turbine wheel outside Diameter	3.77 in (95.70mm)
TURBINE WHEE EXDUCER	3.47 in (88.05mm)
Net weight	24.5kg
turbine housing A/R	1.32 T6
