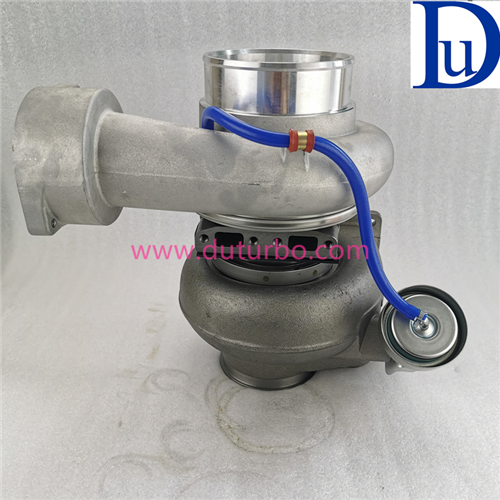

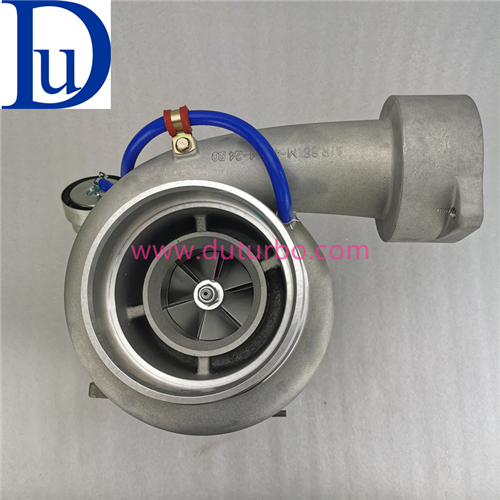

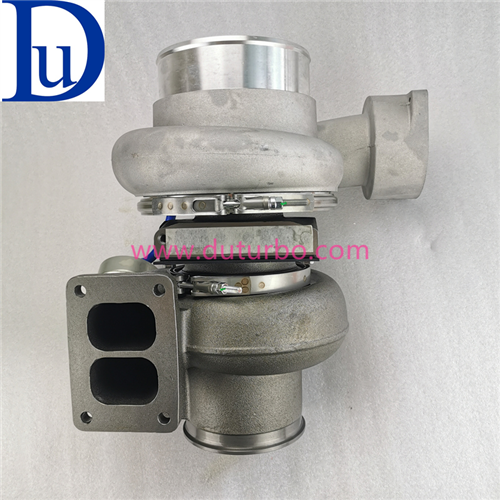

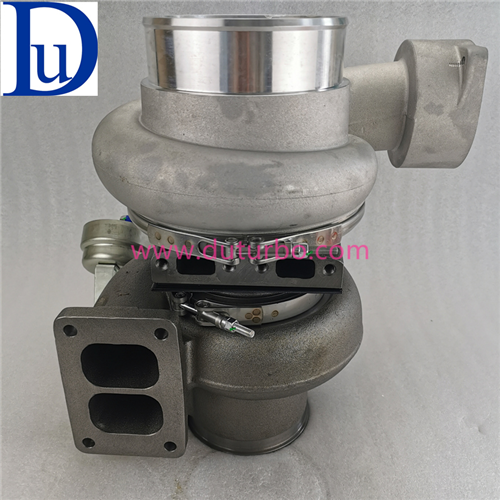

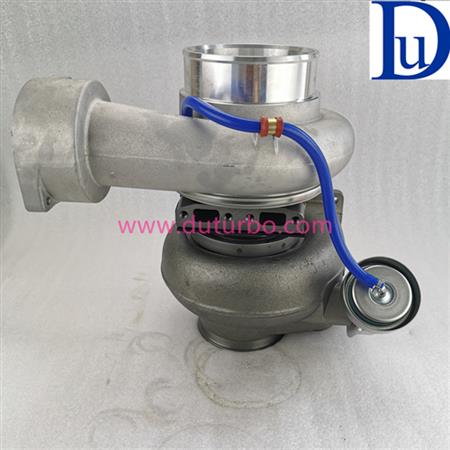

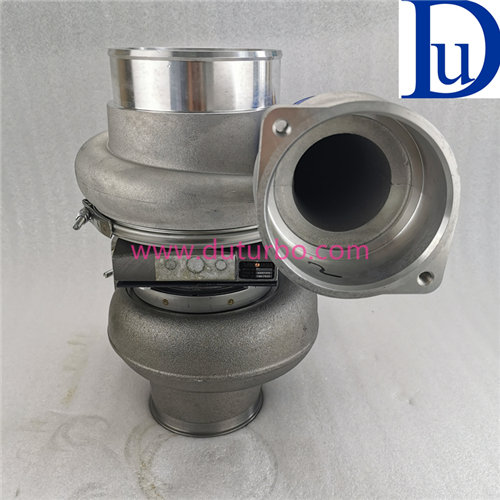

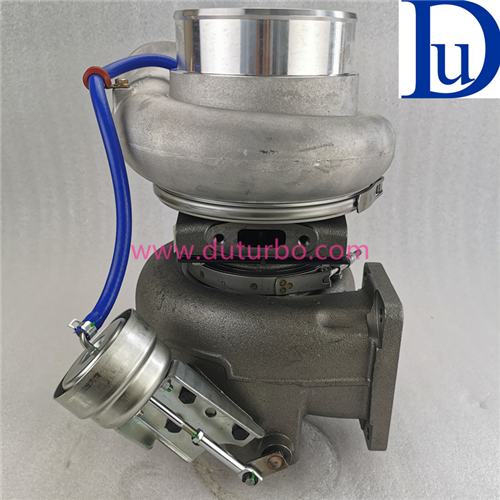

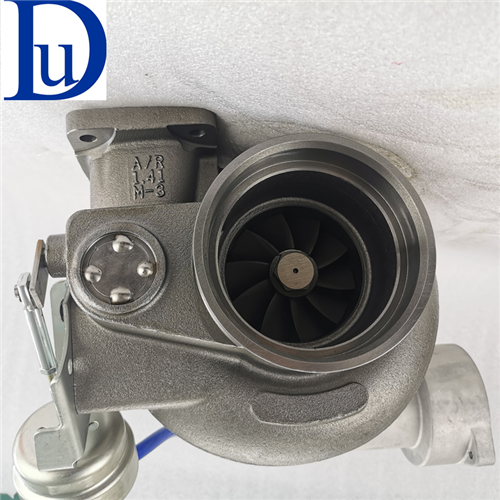

GTA50 716481-5002S 0R7855 CAT 3406 turbo for Caterpillar Tractor 3400 Machine 3406B Engine

Product Detail

GTA5002 716481-0002 194-7923 turbo for Caterpillar Earth Moving (Truck, Tractor) 385B Scraper 3406 3406B Engine

Product Description

Part Number	716481-5002S
Previous Version	716481-0002, 716481-9002S, 716481-5002S, 716481-2
OE number	0R7855, 194-7923, 1947923, 304-9227, 3049227
Description	Earth Moving (Truck, Tractor) 3400 Machine 385B Scraper
CHRA	710270-0022 (710270-0091, 710270-5022S, 1679270, 0R9771) $1831.82 NEW IN STOCK
Turbo Model	GTA50, GTA500201BLS
Prefix	ANS, BKF, BKX, BLY, CLS, FDL, MYA, RCD, CLD, SJY
Fuel	Diesel
Machine Engine	3456, 3456B, 3456E
Excavator	385B, 5090B
S/N	BLC1-UP, BLC172-UP, BLC246-UP, CLS00001-UP, CLD00001-UP, BKF00001-UP, ANS00001-UP, MYA00001-UP, SJY00001-UP, RCD00001-U
Bearing Housing	708605-0001 (449159-0001)(Water Cooled) $406.37 NEW IN STOCK
Turbine Wheel	451938-0001 (Ind. 90.67 mm, Exd. 99.2 mm, Trm 67, 10 Blades, Boreless) $530.66 NEW IN STOCK
Comp. Wheel	451936-0008 (726400-0003, 448671-0020)(Ind. 76.48 mm, Exd. 102.2 mm, 6+6 Blades, Boreless) $233.05 NEW IN STOCK
Back plate	710269-0001 (452903-0001, 710269-0003)(carbon seal) $138.44 NEW IN STOCK
Heat shield	707843-0001 $22.59 NEW IN STOCK
Repair Kit	468267-0011 (1102050750) $180.98 $180.98 NEW IN STOCK
Turbine Housing	452507-0021 (700751-0005)(1947914) $589.74
Compressor Cover	447992-0049 (447297-0039)(1947915, 1996710) $600.37
Actuator	446131-0042 $197.17
Settings Waste gate (pressure)	0.950-1.000 bar
Settings Waste gate (lift shaft)	1.00 mm
Gasket (turbine inlet)	132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000004) $13.20
Gasket oil inlet	210161 (Paper) $4.80
Gasket (oil outlet)	(Paper)

Applications

Caterpillar Earth Moving (Truck, Tractor) 385B Scraper with 3406, 3406B Engine
