Product Detail
Product Description

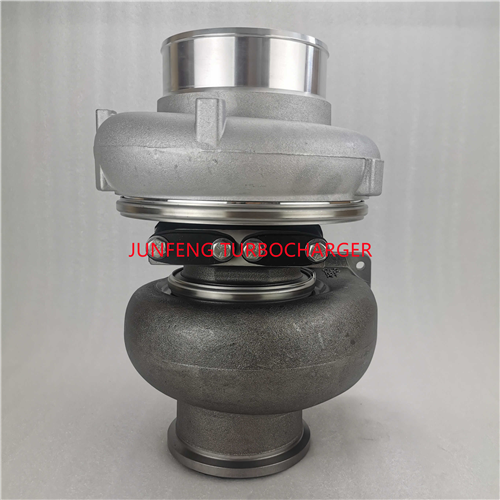

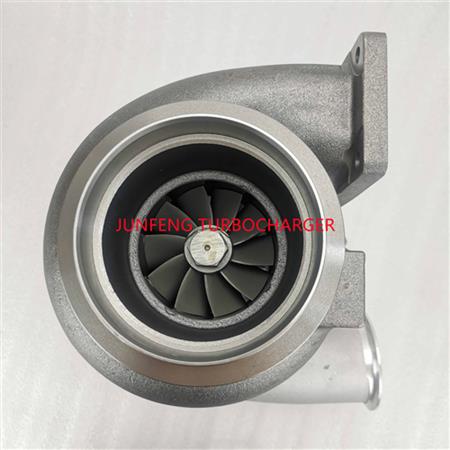

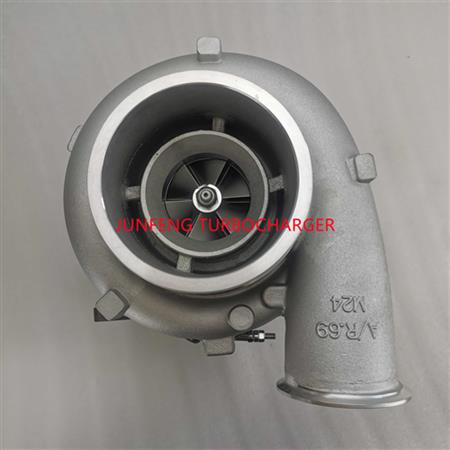

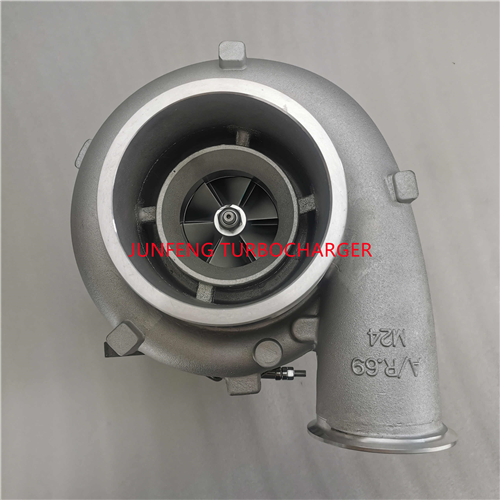

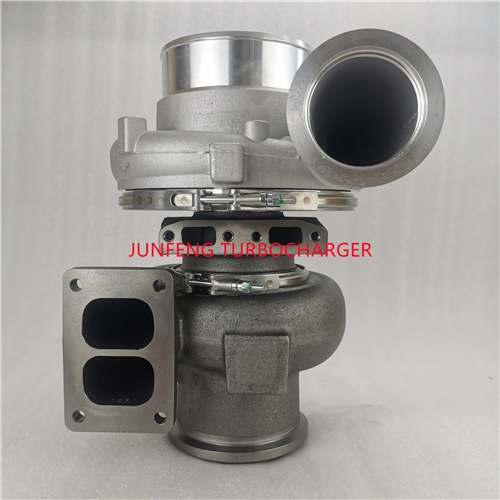

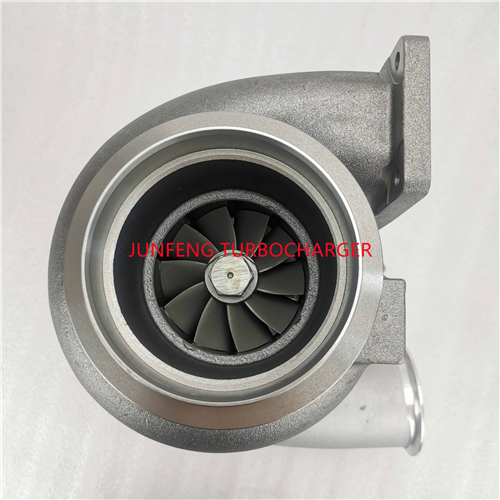

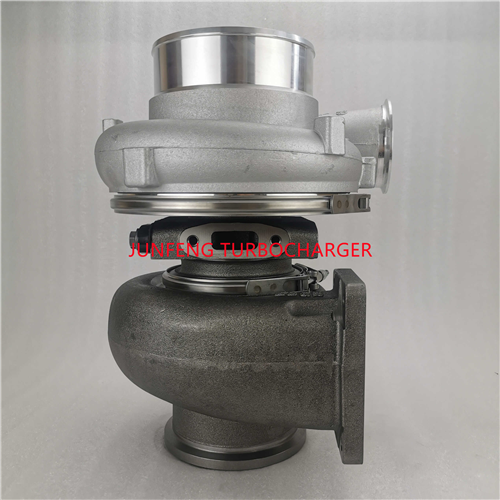

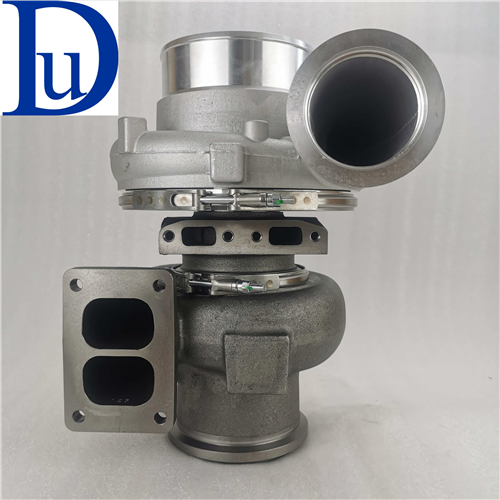

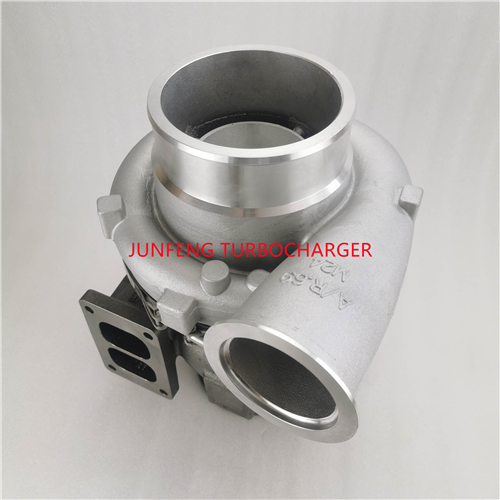

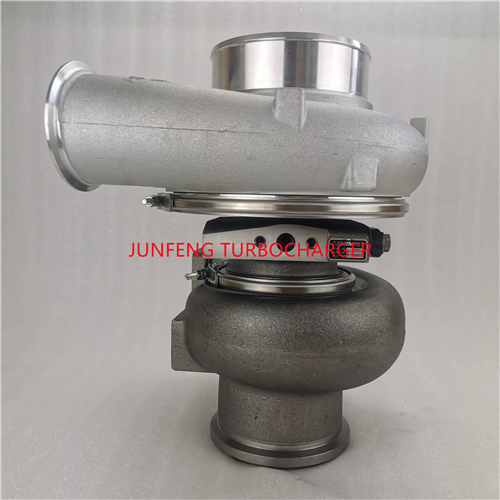

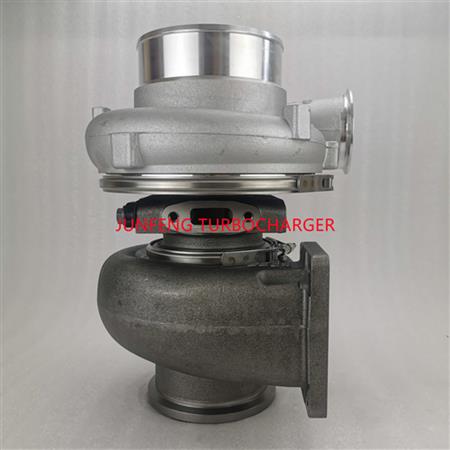

| Part Number | 750159-5003S |
| Previous Version | 750159-0003, 750159-9003, 750159-0006, 750159-3 |
| OE Number | 2341524, 234-1524, 2683295, 10R2075 |
| Description | Industrial |
| CHRA | 712371-0073 (2242417, 712371-5073S) |
| Turbo Model | GTA5002, GTA5002BL |
| Prefix | 99Z, MGC, RJG, 3KR, TWM |
| Fuel | Diesel |
| Machine Engine | C27 |
| Wheel-Type Tractor | D10R, D10T |
| S/N | EHX1-2406, EHX2407-UP, EHX1-UP |
| Angle α (compressor housing) | 242° |
| Angle β (turbine housing) | 325° |
| Bearing Housing | 706666-0004 |
| Turbine Wheel | 451938-0001 |
| Comp. Wheel | 451936-0005 |
| Back plate | 706668-0001 |
| Heat shield | 707843-0001 |
| Repair Kit | 468267-0011 (1102050750) |
| Turbine Housing | 750158-0003 |
| Compressor Cover | 704569-0093 (2433765) |
Applications
turbocharger for Caterpillar Industrial C27
