Product Detail
| Part Number | 764247-5001S |
| Previous Version | 764247-0001, 764247-1, 787846-0001 |
| OE number | 241004640A, S1760EO200 |
| Year | 2005- |
| Description | SK350LC-8, SK330-8, Hydraulic Excavator, Construction Equipment |
| CHRA | 700267-0009 (700267-5009S) |
| Turbo Model | GT3271LS |
| Engine | JO8E Hino |
| Displacement | 7.7L, 7700 ccm, 6 Cylinders |
| KW | 132/179 |
| RPM Max | 2100 |
| Fuel | Diesel |
| Angle α (compressor housing) | 230° |
| Angle β (turbine housing) | 285° |
| Bearing Housing | 479822-0008 NEW IN STOCK |
| Turbine Wheel | 480231-0002 (Ind. 62. mm, Exd. 54.5 mm, 10 Blades) |
| Comp. Wheel | 434244-0015 (Ind. 40.06 mm, Exd. 70.97 mm, Trm 32, 6+6 Blades, Super back) |
| Back plate | 3530923 (1154351300) |
| Heat shield Number | 447553-0006 |
| Repair Kit | 709147-0001 (1102032750) |
| Turbine Housing | 447685-0113 |
| Compressor Cover | 733916-0169 |
| Actuator | 480021-0058 |
| Settings Waste gate (pressure) | 1.767-1.883 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |

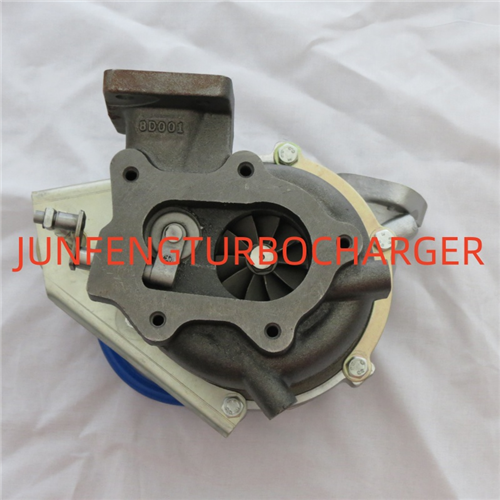

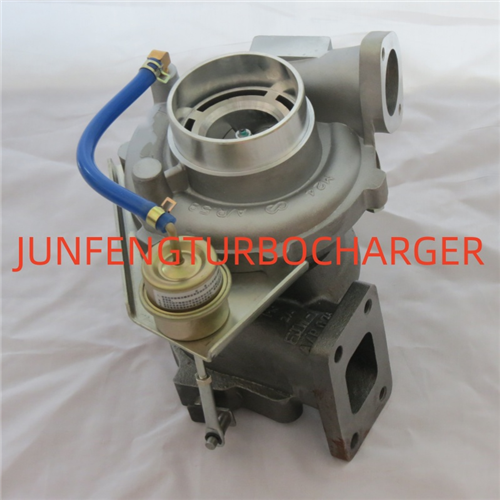

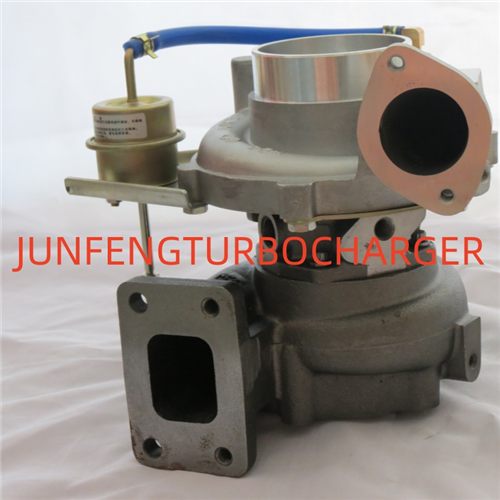

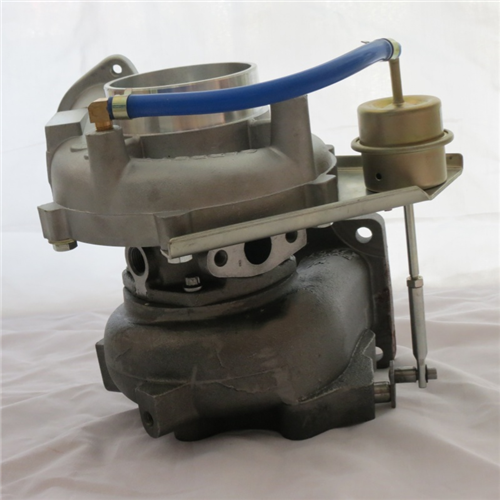

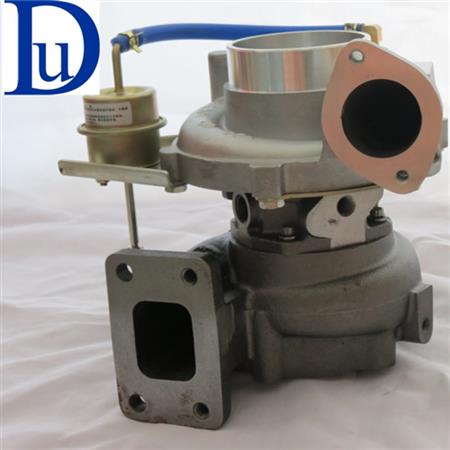

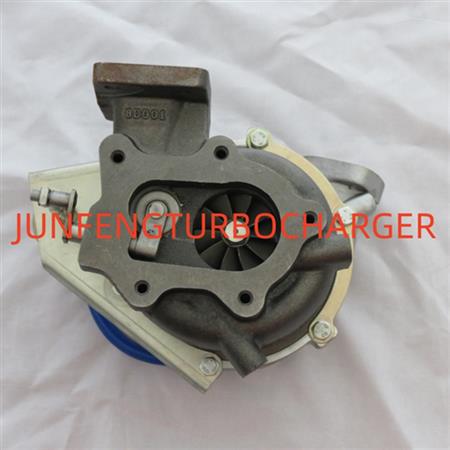

2005- TURBOCHARGER FITS FOR Kobelco Construction Equipment with JO8E Hino Engine
