Product Detail
Product Details

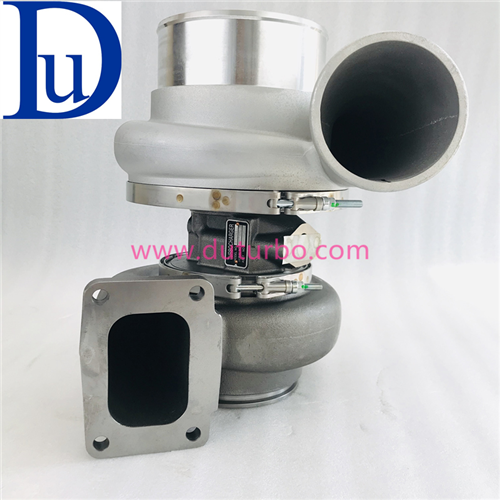

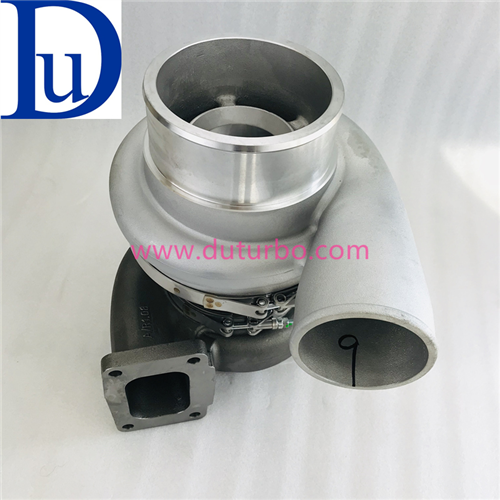

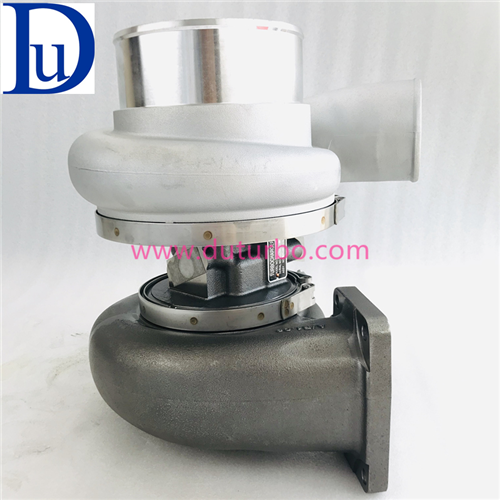

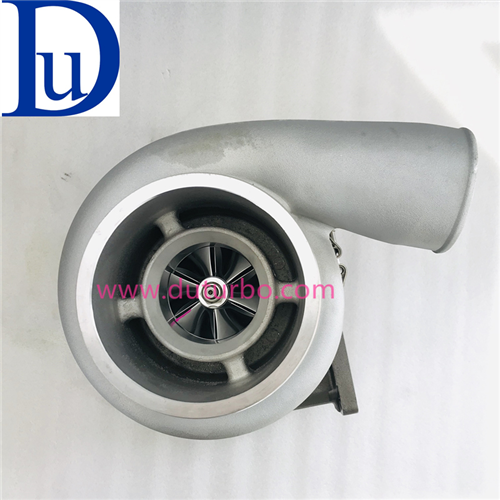

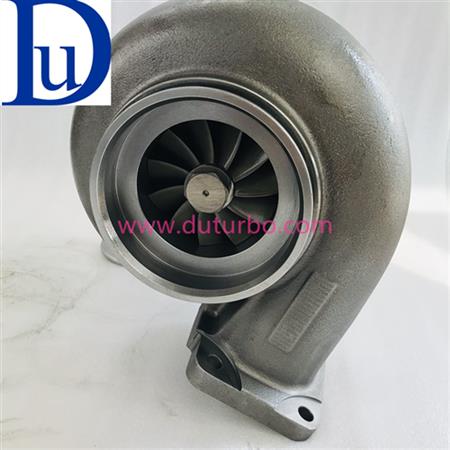

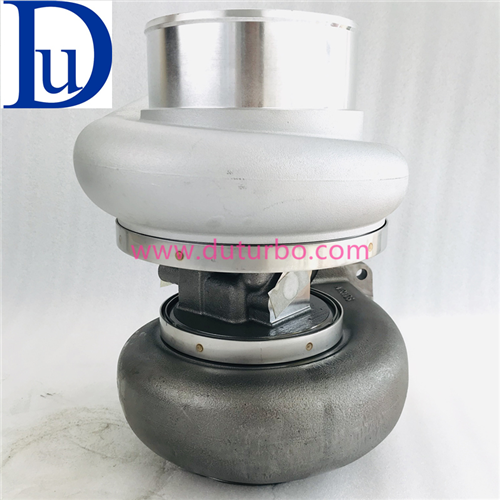

| Part Number | 714322-5002S |
| Previous versions | 714322-0002, 471084-0006, 471084-0008, 714322-2, 714322-0005 |
| OE Part Number | 23540088, E23540088, 0023540088, 23540088, R23540088, 5260200805, 5260201005 |
| Year | 2000- |
| Description | FITS FOR MTU-DDC Generator 50Hz |
| CHRA | 451491-0016 (451491-5016S, 451491-0005)(5260200305) $895.00 NEW IN STOCK |
| Application | 1500 rpm 50Hz Genset |
| Turbo Model | BTV7501, BTV8501 |
| Displacement | 4.8L, 48000 ccm, 12V Cylinders |
| Power | A D |
| Engine Model | 12V4000 |
| Engine Manufacturer | DDC-MTU |
| Fuel | Diesel |
| Bearing Housing | 451358-0006 (Oil Cooled) $159.54 NEW IN STOCK |
| Turbine Wheel | 448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades) |
| Comp. Wheel | 448671-0019 (448671-0009, 451936-0001)(Ind. 74.7 mm, Exd. 102.3 mm, Trm 53, 6+6 Blades, Boreless) |
| Back plate | 451361-0001 (8925746) |
| Heat shield Number | 407967-0003 |
| Repair Kit | 468267-0007 (468267-0006, 468267-0000)(23514215) |
| Turbine Housing | 441881-0037 (5240810101) |
| Compressor Cover | 706505-0002 (23540091) |
| Turbine Housing AR | 1.08 |
| Gasket (turbine inlet) | 409038-0001 (7M7273, 210835-0000, 9749) |
| Gasket (oil outlet) | 210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537) |
| Replaced By | 714322-5005S, 714322-0005 |
| Part Number | 471084-5006S |
| Previous versions | 471084-0006, 471084-0008, 471084-0007, 471084-6 |
| OE Part Number | 5260200205, R5260200205, 5260200405, 5240200905 |
| Description | Generator Set |
| Application | T252 |
| CHRA | 451491-0016 (451491-5016S, 451491-0005)(5260200305) |
| Application | 1500 rpm 50Hz Genset |
| Turbo Model | BTV7506 |
| Displacement | 4.8L, 48000 ccm, V12 Cylinders |
| KW | 1785/2025/2253 |
| Fuel | Diesel |
| Engine Model | 12V4000 |
| Manufacturer | BOOSHIWHEEL |
| Angle α (compressor housing) | 0º |
| Angle β (turbine housing) | 35º |
| Bearing Housing | 451358-0006 (Oil Cooled) |
| Turbine Wheel | 448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades) |
| Comp. Wheel | 448671-0019 (448671-0009, 451936-0001)(Ind. 74.7 mm, Exd. 102.3 mm, Trm 53, 6+6 Blades, Boreless) |
| Back plate | 451361-0001 (8925746) |
| Heat shield Number | 407967-0003 |
| Repair Kit | 468267-0007 (468267-0006, 468267-0000)(23514215) |
| Turbine Housing | 441881-0037 (5240810101) |
| Compressor Cover | 700771-0001 (5260210101) |
| Turbine Housing AR | 1.08 |
| Gasket (turbine inlet) | 409038-0001 (7M7273, 210835-0000, 9749) |
| Gasket (oil outlet) | 210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537) |
| Replaced By | 714322-0002 (23540088, 5260200805) |
Application
1997-10 Turbocharger for Liebherr T252 Offway With 12V4000 Engine
1997-10 Turbocharger for MTU-DDC Generator With 12V4000 Engine
2000- Turbocharger for DDC-MTU Genset With 12V4000 Engine
