  3. Turbo Electric Actuator G-13 G-013 G013 6NW009543 763797 802774-5005S
  • G13 Electric valve Electronic Turbo Actuator G-13 6NW009543 763797

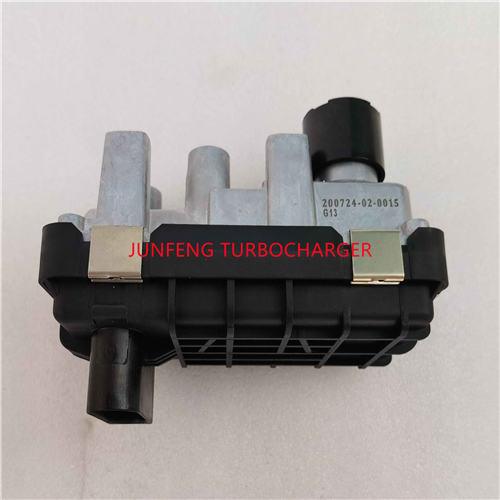

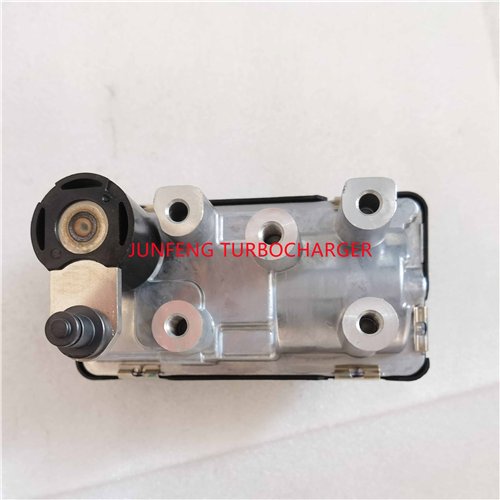

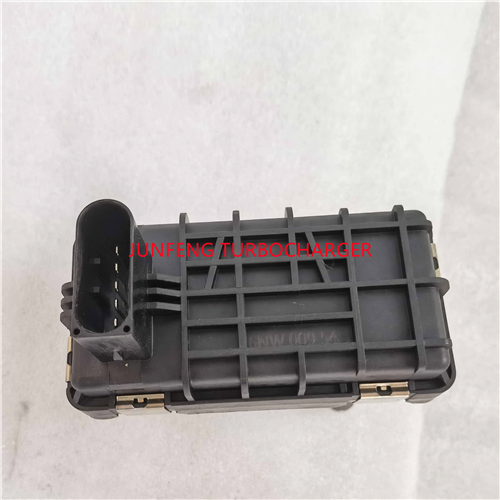

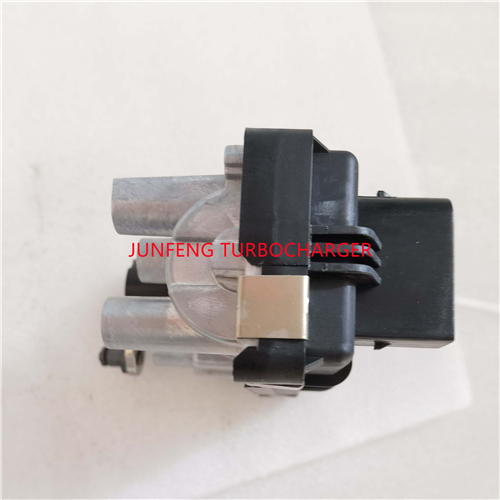

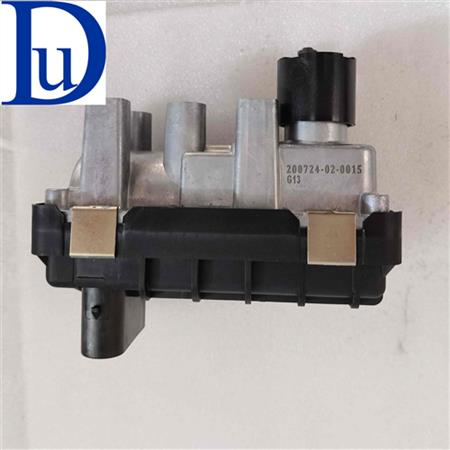

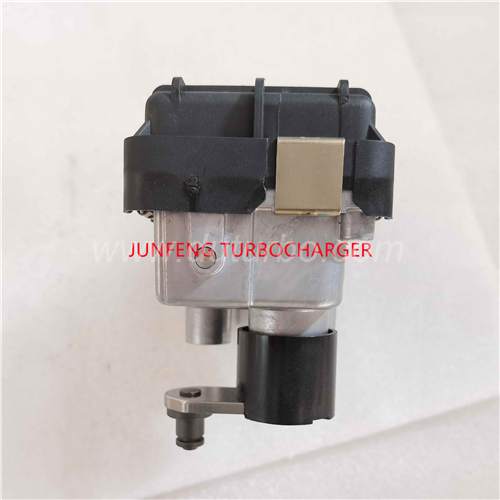

Turbo Electric Actuator G-13 G-013 G013 6NW009543 763797 802774-5005S

  • 6NW009543 763797 G13
  • Model : G13 6NW009543 G-13 G-013 G013
  • turbo model : GTB2060VKLR, GTB2060VK
  • TURBO PART NUMBER: 802774-0004 802774-0005, 802774-5004S, 802774-0006, 802774-5004S, 802774-5006S, 802774-5007S 802774-5008S
  • turbo OE numbers : A6420901686, A6420901186 642090138688, 6420901686, 642090168680
  • turbo OEM : 6420901086, 642090108680, 6420901186, 642090118680, 6420901386, 642090138660, 642090138680
  • MOQ: 1PCS
  • MANUFACTURER: BOOSHIWHEEL
  • condition:brand new
  • engine : OM642LS, OM642 LS Euro 5, 642867, 642826, 642858, 642854, 642853, 642852, 642850, 642838 Euro V, OM642LS Euro III
  • Application: Mercedes Benz GL350, ML350, S350 BlueTEC,

Product Detail

Turbocharger Details



Part Number 802774-5005S
Previous Version 802774-0004, 802774-0005, 802774-5004S, 802774-0006, 802774-5004S, 802774-5006S, 802774-5007S 802774-5008S
OE number A6420901686, A6420901186, 642-090-10-86, 642-090-10-86-80, 642-090-11-86, 642-090-11-86-80, 642-090-13-86, 642-090-13-86-60, 642-090-13-86-80, 642-090-13-86-88, 642-090-16-86, 642-090-16-86-80, 642-090-93-80, 642-090-93-80-80, 6420901086, 642090108680, 6420901186, 642090118680, 6420901386, 642090138660, 642090138680, 642090138688, 6420901686, 642090168680, 6420909380, 6420909380806
Year 2011-16
Description fits for Mercedes Benz GL350, ML350, S350 BlueTEC,
Manufacturer Part Number 802774-0004, 802774-0005
CHRA 776102-0082 (776102-5082S) $650.00 NEW IN STOCK
Turbo Model GTB2060VKLR, GTB2060VK
Engine OM642LS, OM642 LS Euro 5, 642867, 642826, 642858, 642854, 642853, 642852, 642850, 642838 Euro V, OM642LS Euro III
Displacement 3.0L, 3000 ccm, 6 Cylinders, 24 Valves
KW 190/258
RPM Max 3600
Fuel Diesel
Model S 350 BlueTEC, E350, CLS350, GL 350 CDI Blue Efficiency, ML 350 BlueTEC Sport, GLE350, S350, ML 350, E300
Model Type 212026, 212094, 218323, 218326, 207426, 218994, 292324, 212293, 166024, 212223, 207423, 207326, 218394, 222033/222133, 166023/166024, 166824, 212220/212227, 221083/221183, 221026/221126, 212226, 212093
Type BlueTec, CDi BlueTec, CDi/CDi Blue Efficiency
Series A207, X218, C218, W212, C292, W166, S212, C207, W221, W222, X166
Turbine Wheel (Ind. 43.1 mm, Exd. 47. mm, Trm 9.2, 9 Blades)
Compressor Wheel 737689-0001 (784366-0001)(Ind. 44.5 mm, Exd. 56. mm, Trm 3.75, 6+6 Blades, Superback)
Back plate 730078-0002 (730082-0002)
Turbine Housing AR VNT3
Actuator REA = Rotary Electronic Actuator G13







Right Side



Applications

2011-16 TURBOCHARGER FOR Mercedes Benz ML 350 BlueTEC Sport (166) 4matic with OM642LS Euro 5 Engine

2010-16 TURBOCHARGER FOR  Mercedes Benz GL 350 CDI (X164) with OM642LS Euro 5 Engine

2012-16 TURBOCHARGER FOR  Mercedes Benz GLK 350 CDI (X204) 4matic with OM642LS Euro 5 Engine

2011-16 TURBOCHARGER FOR  Mercedes Benz S 350 BlueTEC (W221) 4matic with OM642LS Euro 5 Engine
