Product Detail
GT1749V (S1) Turbo 454231-0007 028145702H 454231-0003 Turbo for Audi A4/A6 Volkswagen Passat TDI 110 PD 1.9L engine
Product Details
| Part Number | 454231-5007S |
| Previous Version | 454231-0001, 454231-0003, 454231-0004, 454231-0007, 454231-5005S, 454231-5012S, 454231-9012S, 454231-0007, 454231-7 |
| OE number | 028145702H, 028145702HV225, 028145702HV500, 028145702HX, 028145702HV |
| Year | 1997-04 |
| Description | Audi A4/A6 Volkswagen Passat |
| CHRA | 703890-0150 (433395-0039, 703890-0130, 433395-0010, 433395-0019)(1102015920) $350.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | GT1749V (S1), GT1749V(S2) |
| Engine | AVB, AHH/AFN, TDI 110 PD, TDI 115 PD, PD UI |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1900 ccm, 4 Cylinders |
| KW | 110/115 |
| RPM Max | 4250 |
| Fuel | Diesel |
| Angle α (compressor housing) | 90° |
| Angle β (turbine housing) | 230° |
| Bearing housing | 433145-0004 (433145-0005/722282-0002) (703880-0037/722282-0012/722282-0061) (1102017453) $89.00 NEW IN STOCK |
| Turbine Wheel | 434533-0002/434533-0037/434533-0039 (Ind. 43. mm, Exd. 35.9 mm, Trm 69, 9 Blades) (1102017441, 1102017438) NEW IN STOCK |
| Comp. Wheel | 434812-0001/434812-0002 (Ind. 49. mm, Exd. 32. mm, Trm 45, Extended back disc type 6 blades) (1102015400) NEW IN STOCK |
| Back plate | 700593-0006/703682-0023/703682-0045 (1102015306) (1102015300) NEW IN STOCK |
| Heat Shield | 433112-0001 (1102015342) NEW IN STOCK |
| Repair Kit | 732248-003/732245-0001 (1102015759) NEW IN STOCK |
| Nozzle Ring Assembly | 434596-0001 NEW IN STOCK |
| Turbine Housing | 701227-0001 |
| Compressor Cover | 434808-0002 |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0012 (1102017382) $79.00 |
| Gasket (turbine inlet) | 210293 (Inox Steel) |
| Gasket (outlet) | 210311(Inox Steel) |
| Gasket (oil outlet) | 210243 (Paper) $4.30 |
| Replaced By | 454231-0010 |
1997-04 Audi A4 TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Audi A6 TD with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Skoda Superb TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Volkswagen Passat TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-99 Audi A4 1.9L TDI (B5) Engine AHH / AFN
2000-04 Audi A4 1.9L TDI (B6) Engine AVB, BKE
1997-01 Audi A6 1.9L TDI (C5) Engine AHH / AFN
1997-00 Volkswagen Passat B5 1.9L TDI Engine AHH / AFN

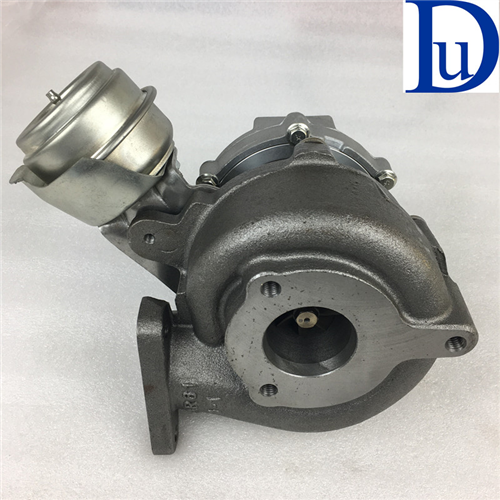

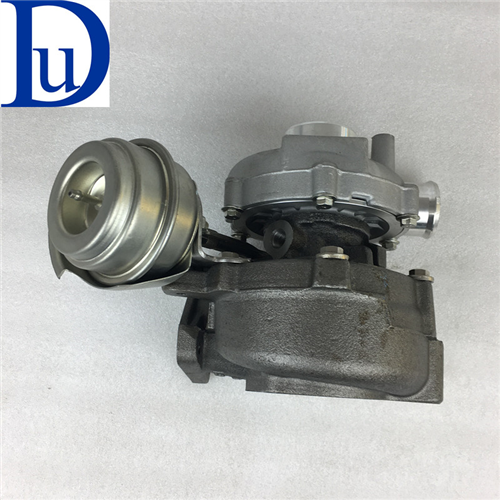

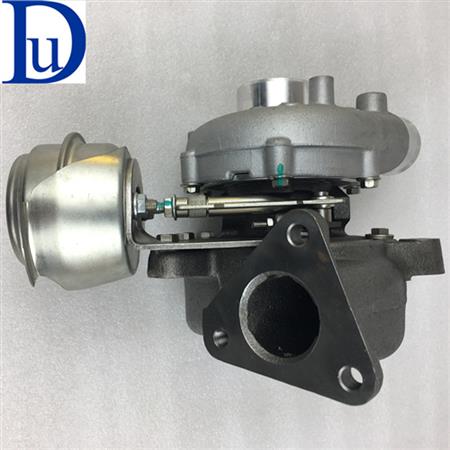

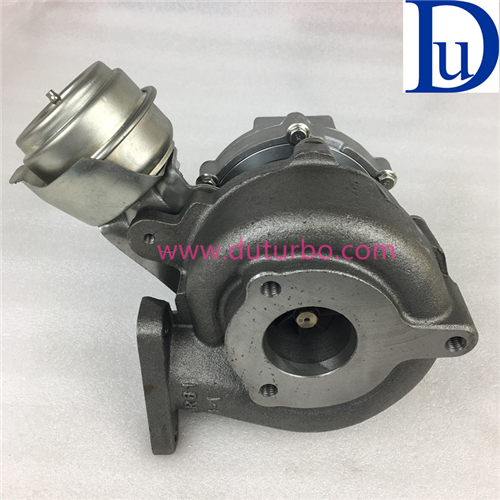

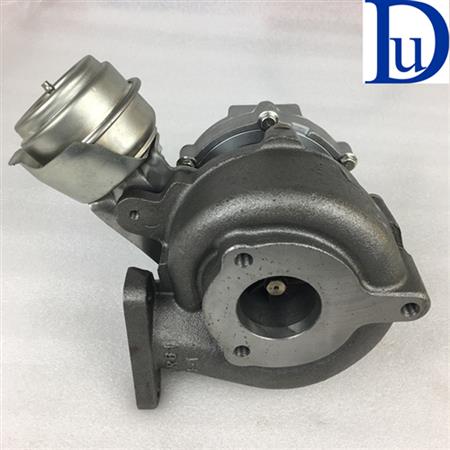

Product Show
