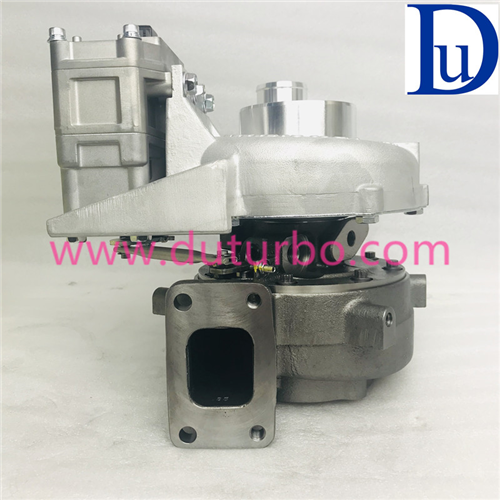

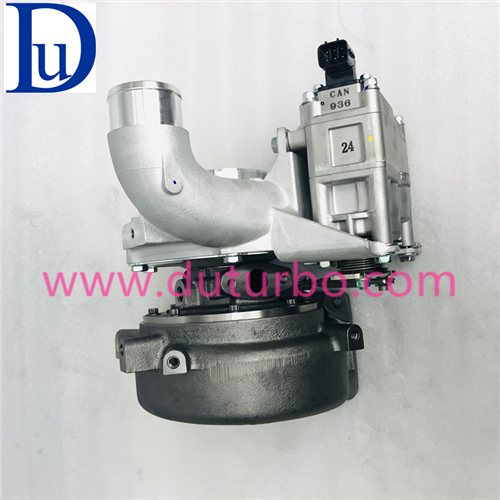

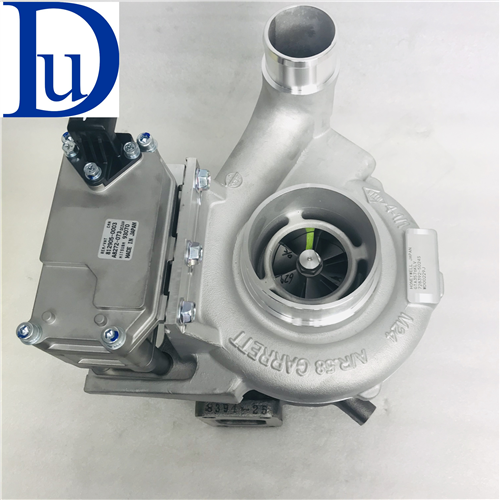

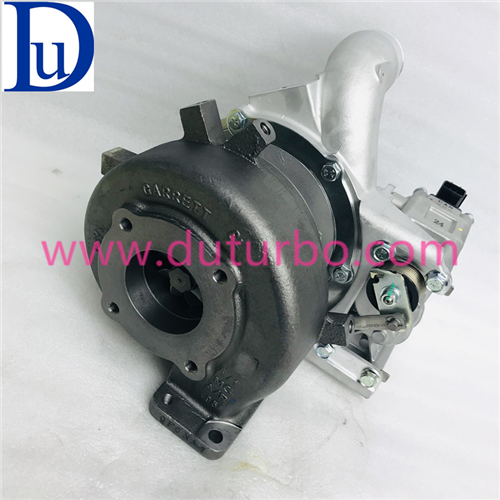

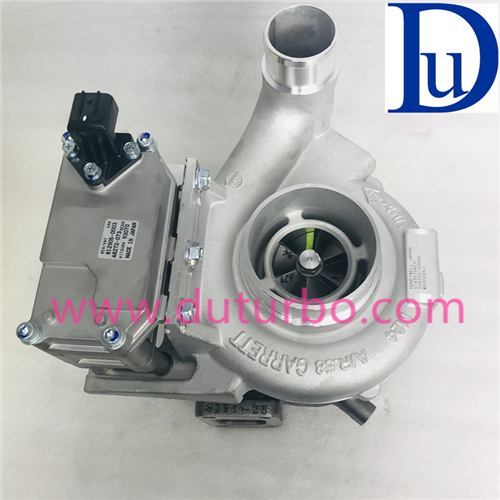

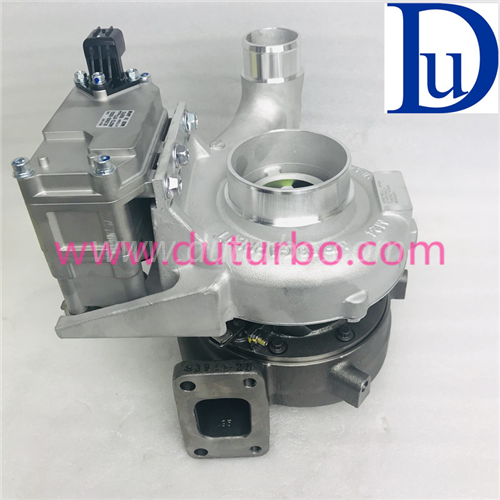

HINO 500 series JO7E RANGER garrett turbocharger GTA3576KLV 728392-5014S 728392-5024S 17201-E0311

728392-5024S
part number : 728392-5024S 728392-5020S 728392-5016S 728392-5014S
Previous Version: 728392-24 728392-0024 728392-20728392-0020 728392-0016 728392-16 728392-14 728392-0014
OEM: 241004290D, 241004570, 241004570A 17201E0314 17201E0314A 17201-E0314 17201-E0314A 17201-E0311 17201-E0311B 17201E0311 17201E0311B
Displacement 6.6L, 6600 ccm, 5 Cylinder
KW 165/221
Applications 2005- Hino Truck Ranger with JO7E Engine
ENGINE: JO7E J07E
Fuel Diesel
Manufacturer : GARRETT
Turbo Model GT3576KLV, GT3576KL

Product Detail

Part Number	728392-5020S
Previous Part Number	728392-0020, 728392-0010, 728392-0011, 728392-0014, 728392-0015, 728392-0016, 728392-0019, 728392-0021, 728392-0024
OE number	17201E0311, 17201-E0311, 241004290, 241004290D, 241004570, 241004570A, 17201E0310, 172010000, 17201E0190C, 17201E0311, 17201E0311B, 17201E0312, 17201E0313, 17201-E0314A
Year	2005-
Description	Truck, Ranger Truck
CHRA	N/A
Turbo Model	GT3576KLV, GT3576KL
Engine	JO7E
Engine Manufacturer	HINO
Displacement	6.6L, 6600 ccm, 5 Cylinder
KW	165/221
RPM Max	2700
Fuel	Diesel
Power (KW HP PS)	165 KW@ 2700 rpm
Torque (Nm LB/Ft)	699 Nm @ 1600 rpm
Bearing Housing	water cooled bearing housing
Turbine Wheel	35 Diameter in mm
Comp. Wheel	76 Diameter in mm
Turbine Housing AR	multi vane variable geometry turbine
Actuator	Actuator electric
NOTE	Dual Axle VNT With REA (Rotary Electronic Actuator), watercooled center housing
Manufacturer	Honeywell-Garrett
