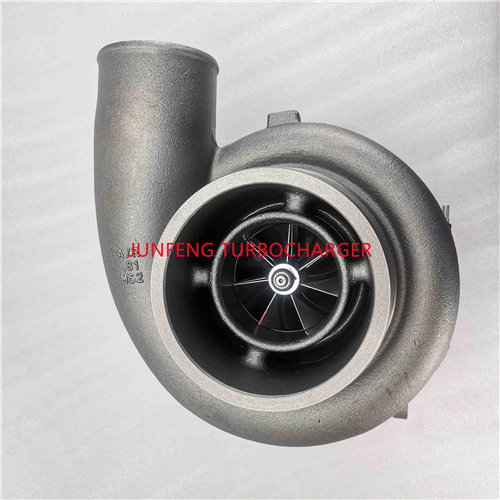

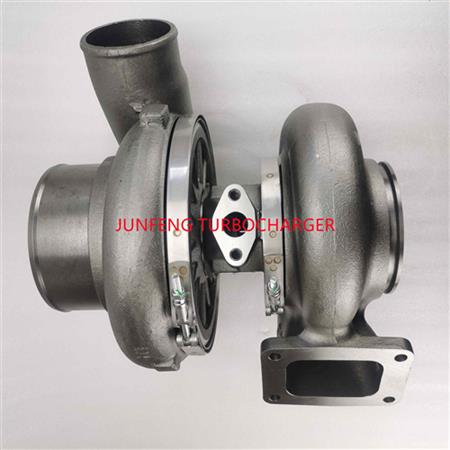

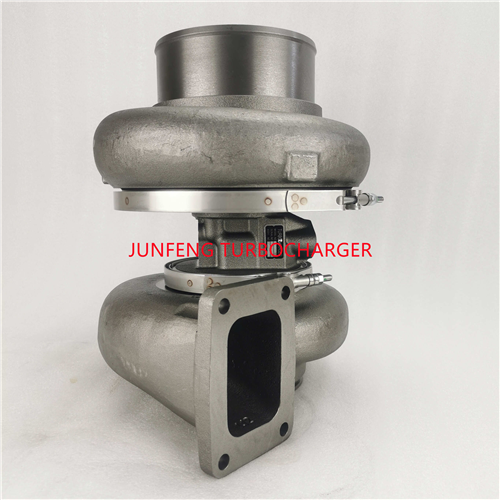

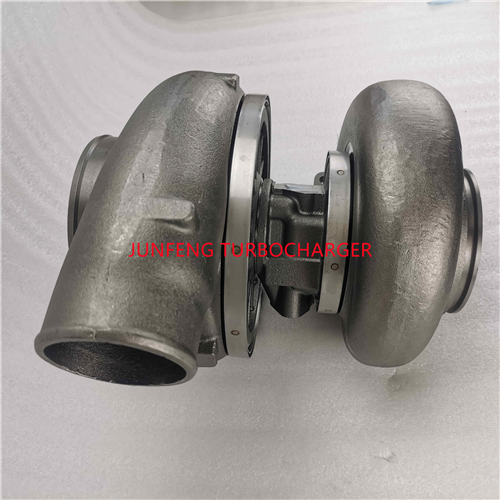

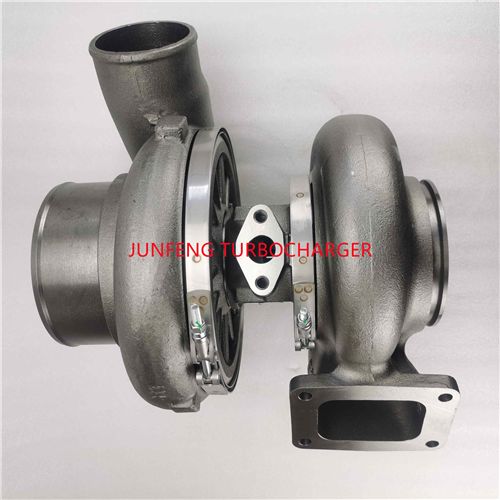

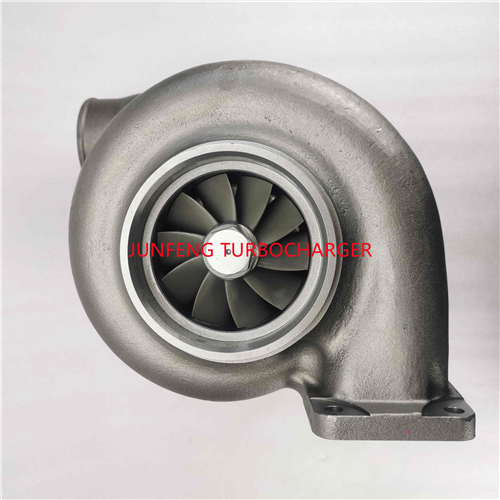

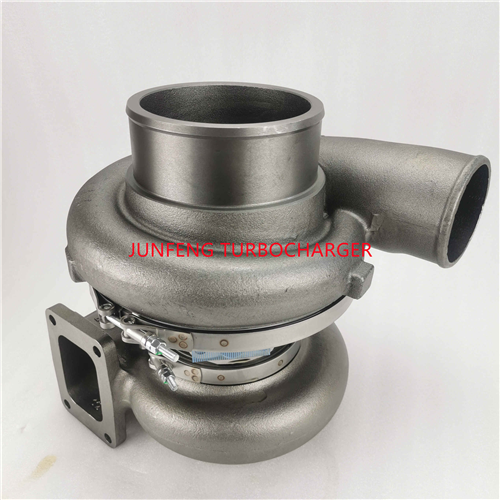

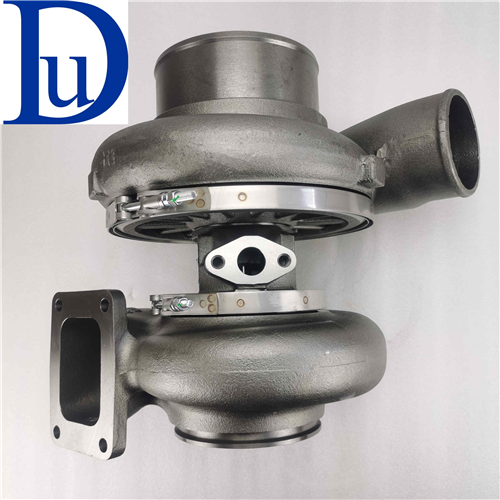

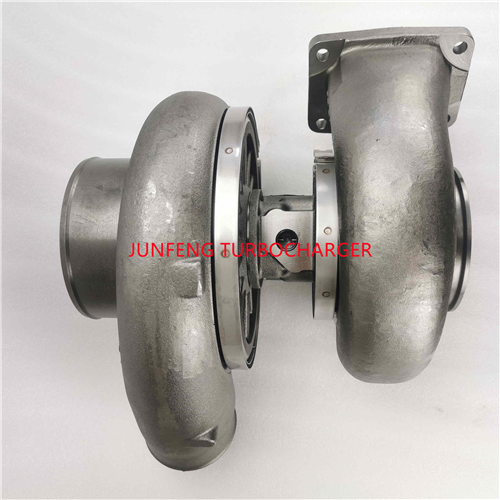

DETROIT DIESEL MINE TRUCK TURO 725732-5009S GTA5523BN 725732-0009 X52710100055

GTA5523BN 725732-0009
Model : GTA5523BN BTV8501
Previous Version 714323-0001, 714323-1, 725732-0002, 725732-0009, 725732-0013
Part Number 714323-5001S 725732-5009S 725732-9009S
Alternative Part Number - 725732-5009, 725732-0002, 725732-5002S, 725732-0009, 725732-2, 725732-9
OE Number 80965599, R80965599, RX52710100055, X52710100055, XT0210100167,E5240201205, 5240201205, R5240201205, 23540093
Year 2002 -
Engine 16V4000
Displacement 64.0L, 64000 ccm, V16 Cylinders
KW 2158/2976
Application 1979- turbocharger for MTU DDC Construction Equipment, Truck with 16V4000 Engine

Product Detail

Turbo Product Description

Part Number	714323-5001S
Previous Version	714323-0001, 714323-1, 725732-0002, 725732-0009, 725732-0013
OE Number	80965599, R80965599, RX52710100055, X52710100055, XT0210100167,E5240201205, 5240201205, R5240201205, 23540093
Year	1979-
Description	fits for MTU DDC Construction Equipment, Truck
CHRA	449073-0026 (449073-5026S)(5240200205)
Turbo Model	BTV8501
Engine	16V4000
Displacement	64.0L, 64000 ccm, V16 Cylinders
KW	2158/2976
Bearing Housing	449072-0011 (Oil Cooled)
Turbine Wheel	449236-0008
Comp. Wheel	449207-0001 (Ind. 88. mm, Exd. 117.6 mm, Trm 56*75, 7+7 Blades)
Back plate	448797-0011 (carbon seal)
Heat shield Number	407657-0014 NEW IN STOCK
Repair Kit	468267-0007 (468267-0006)
Turbine Housing	441882-0016 (5240810001)
Compressor Cover	706505-0001 (23540078)
Turbine Housing AR	1.23
Gasket (turbine inlet)	409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003)
Gasket (oil outlet)	210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)

Application

1979- turbocharger for MTU DDC Construction Equipment, Truck with 16V4000 Engine
