Product Detail

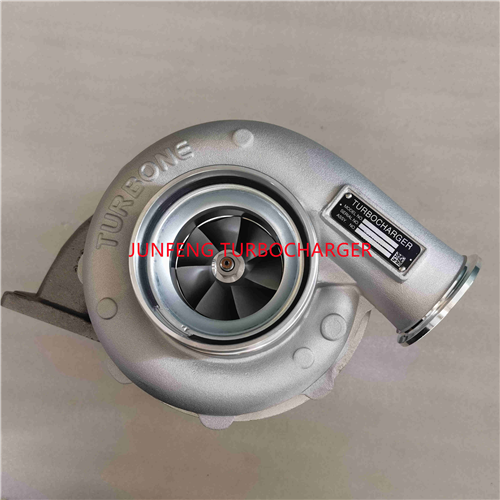

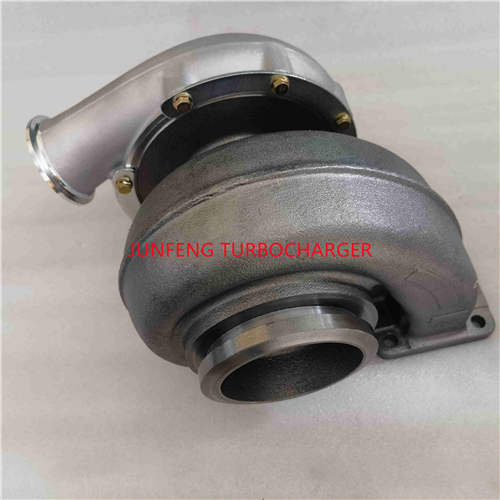

| Part Number | 3528639 |
| Previous Part Number | 3528553, 3528604, 3529436, 3529437, 3530768, 3803309, 3803309NX, 3803309RX, 3803378, 3803378NX, 380338900 |
| OE number | 3803389, 380338900, 3803389NX, 3803389RX |
| Year | 1991-08 |
| Description | Marine, Various |
| Manufacturer Part Number | 3529257, 3529257H |
| CHRA | 3575061 (3575061H, 3575061RX, 3535239) $750.00 NEW IN STOCK |

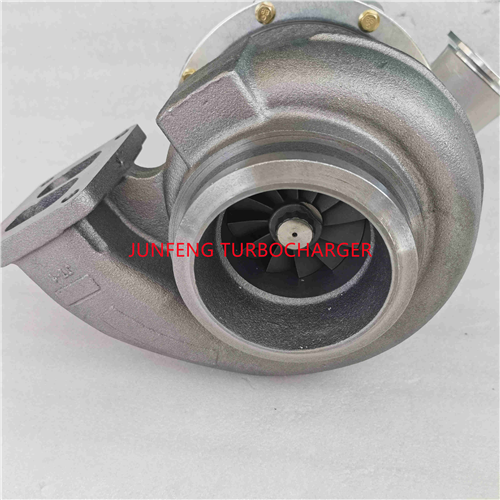

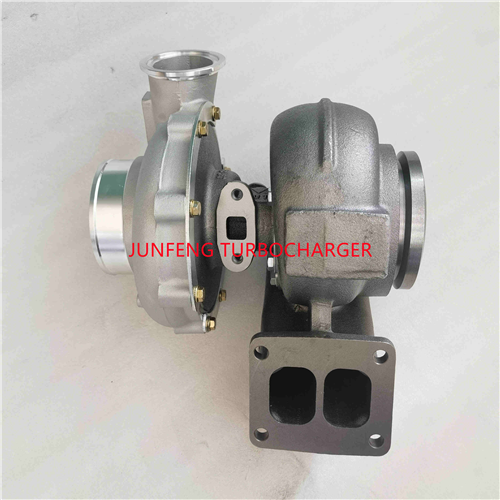

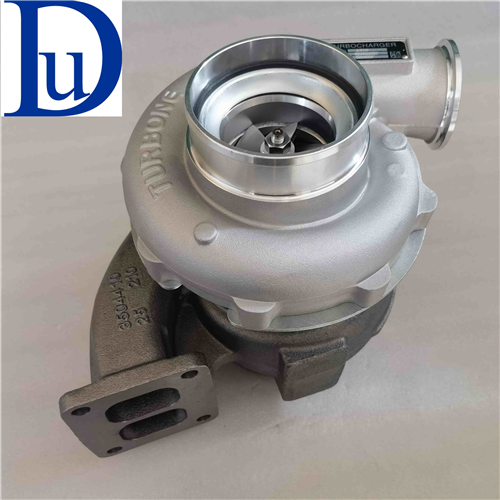

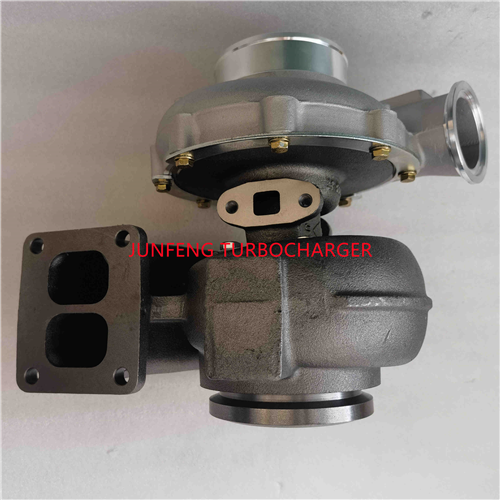

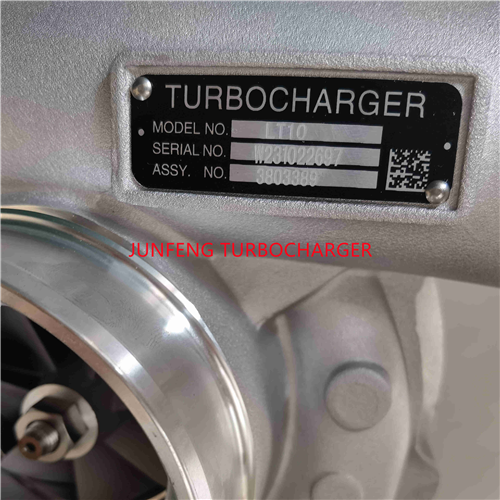

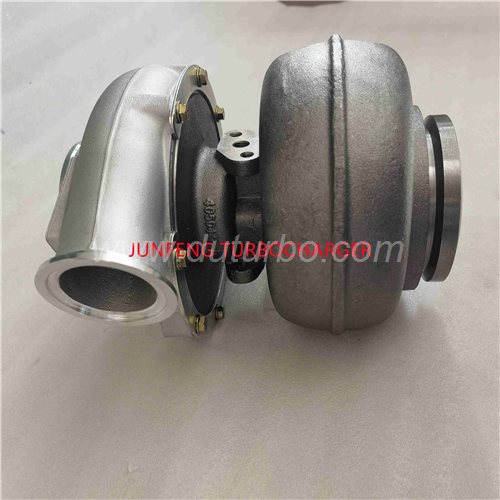

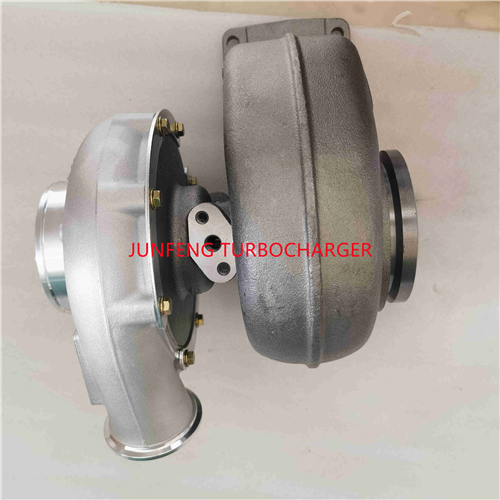

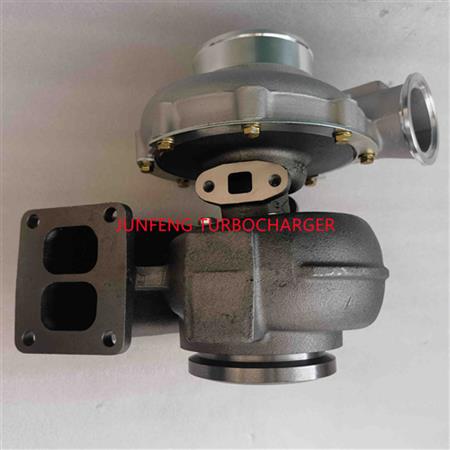

| Turbo Model | H2E-9351BH/X17Q3, H2E |
| Engine | L10, 91, L10 |
| Engine Manufacturer | Cummins |
| Displacement | 10.0L, 1000 ccm |
| Fuel | Diesel |
| Angle α (compressor housing) | 270° |
| Angle β (turbine housing) | 143.5° |
| Bearing Housing | 3533195 (3528136)(Oil Cooled) $186.63 NEW IN STOCK |
| Turbine Wheel | 3522232 (Ind. 72. mm, Exd. 86. mm, Trm 12.55, 11 Blades)(1152302435, 1100016086) |
| Comp. Wheel | 3528123 (Ind. 86. mm, Exd. 76.98 mm, 12 Blades) |
| Back plate | 3528096 (1153055300, 1800016024) |
| Heat shield Number | 3533038 (3529846)(1153055340, 2030016003) |
| Repair Kit | 3575015 (3545997)(1153050751, 5000020017) |
| Gasket (turbine inlet) | 409123-0002 (310694)(Inox Steel) |
| Gasket (oil outlet) | 311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021) |
| Gasket oil inlet | 210023 (409036-0000, 210023-0000, 55739, 147837) |
| Gasket Kit | 3800196 NEW IN STOCK |
| NOTE | can use 178017 turbo in place of this turbo |
1991-08 Cummins Marine, Various with L10 Engine
