Product Detail
Product Description
| Part Number | 5350775 |
| Previous Part Number | 3782467, 3788265, 3788266, 4309496, 4352254, 5350774, 5350775, 5500858, 5500859 |
| OE number | 5357389, 5357389RX, 5455781, 5455781RX |
| Year | 2010-18 |
| Description | Various, Industrial |
| CHRA | 3769917 (3769917H) |
| CPL | 3647, 3648, 3649 CM2350 |
| Turbo Model | HE300WG |
| Engine | ISX12G |
| Displacement | 6.7L, 6700 ccm |
| Engine Manufacturer | Cummins |
| Fuel | Natural Gas, Diesel |
| Angle α (compressor housing) | 145° |
| Angle β (turbine housing) | 165° |
| Bearing Housing | (Water Cooled) |
| Turbine Wheel | (Ind. 52.00 mm, Exd. 64.9 mm, 12 Blades) |
| Comp. Wheel | 4039431 (Ind. 57.98 mm, Exd. 86.00 mm, Trm 10.54, 7+7 Blades, Superback) |
| Back plate | 3530923 (1154351300) |
| Heat shield Number | 3519302 (1152301340) |
| Repair Kit | 3575169 (1153035750) |
| Turbine Housing | 3785367 |
| Actuator | 4030780 |
| Gasket Kit | 4032496 |
| Gasket (turbine outlet) | 3535001 (3922789)(Inox Steel) |

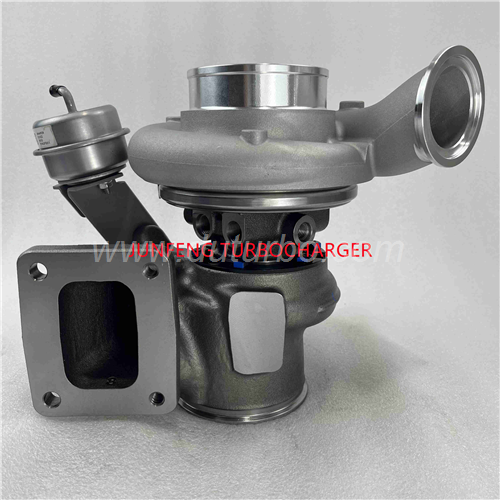

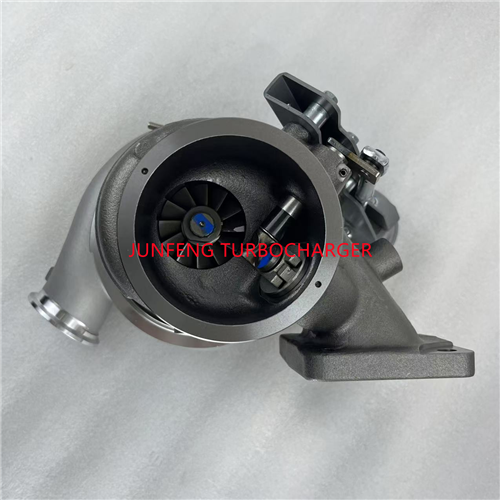

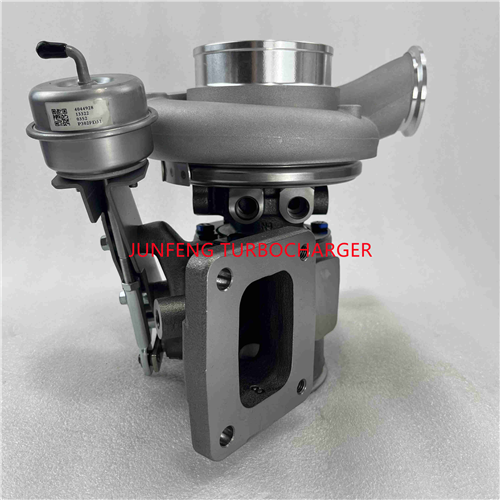

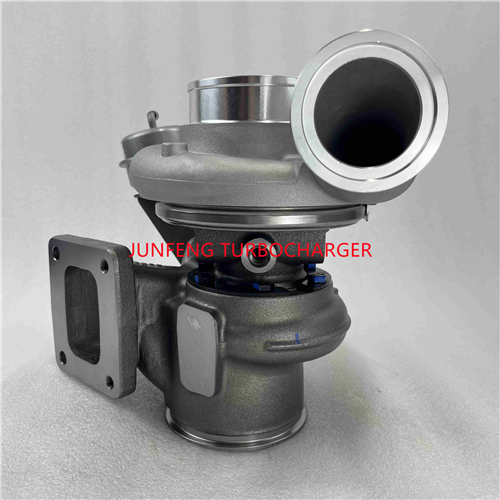

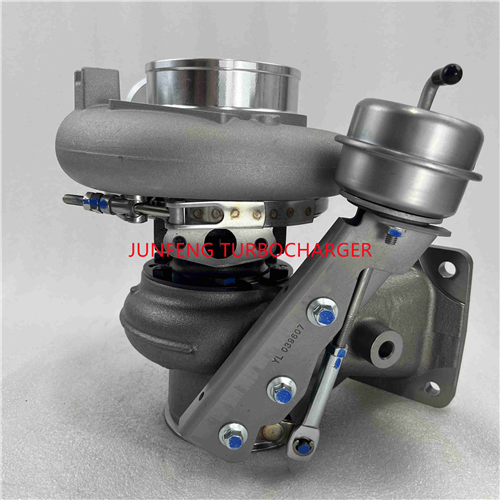

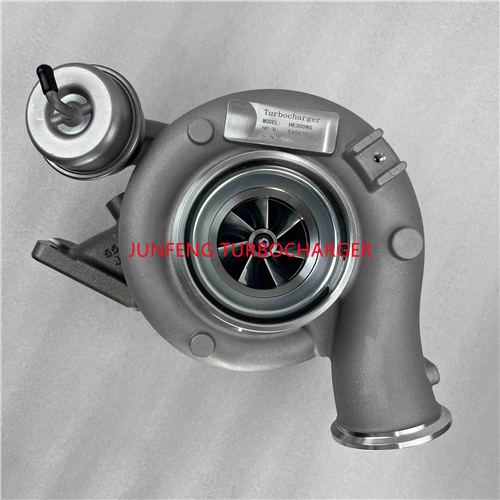

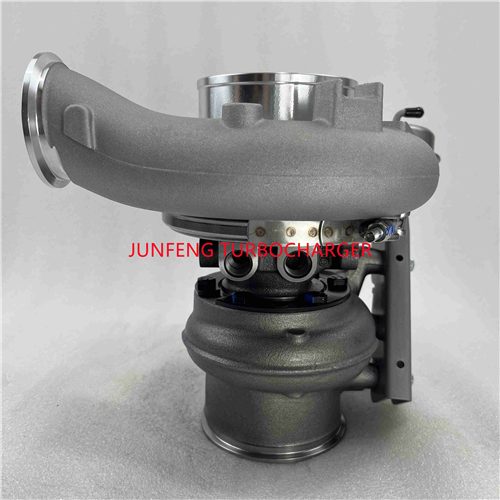

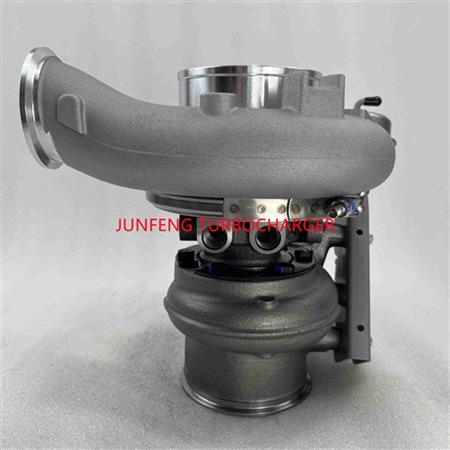

turbocharger fits for 2010-18 Cummins Industrial with ISX12G Engine
