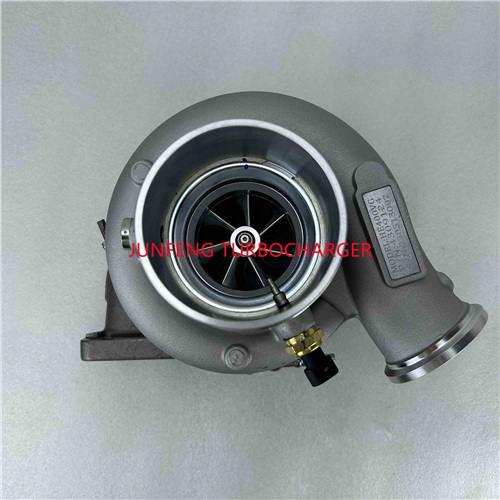

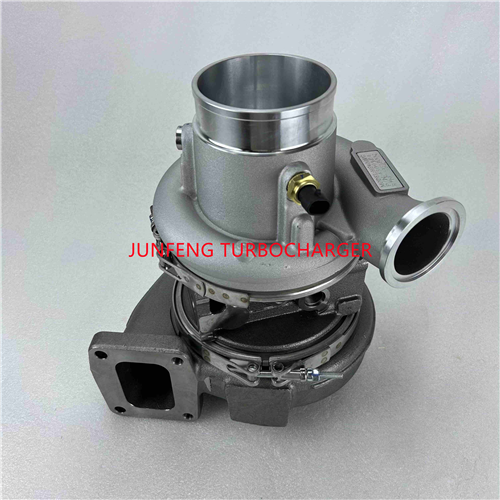

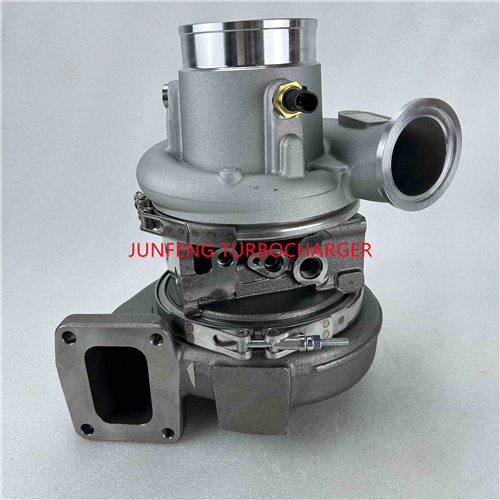

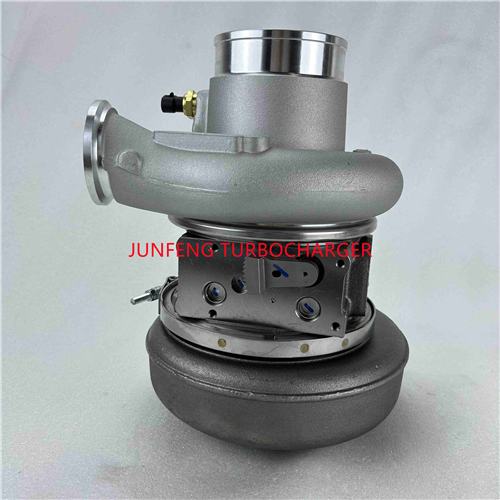

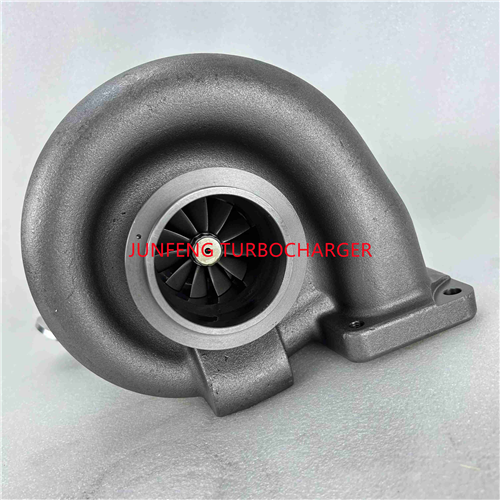

Cummins ISC ISL B3 B4 ISM Engine turbo HE451Ve HE400VG 5350607 4309124 3774354

HE451Ve HE400VG
Model : HE451Ve, HE400VG
Part Number: 19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548, 2840549, 2840550
Part NO.: 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355, 3774356, 3774358, 3774623
OEM: 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839, 3792242, 3792244, 3792246, 3792247, 3792247NX
PRE-VERSION PN: 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128, 3795150, 3795151, 3795152, 3797541, 3797542, 379754200
OEM numbers: 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428, 4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX
OE NUMBERS: 4309124, 430912400, 4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028
OE Number 4956C26, 4955428 5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669, 5456971,
Manufacturer Part Number : 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX, 5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX
Engine ISC, ISL, B3, B4, ISM

Product Detail

Product Description

Part Number	5350607
Previous Version	19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548, 2840549, 2840550, 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355, 3774356, 3774358, 3774623, 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839, 3792242, 3792244, 3792246, 3792247, 3792247NX, 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128, 3795150, 3795151, 3795152, 3797541, 3797542, 379754200, 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428, 4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX, 4309124, 430912400, 4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028
OE Number	4956C26, 4955428
Year	2006-14
Description	Industrial Crane
Manufacturer Part Number	5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669, 5456971, 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX, 5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX
Turbo Model	HE451Ve, HE400VG
CHRA	N/A
Engine	ISC, ISL, B3, B4, ISM
Displacement	320V
Fuel	Diesel
Angle α (compressor housing)	257º
Angle β (turbine housing)	158º
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Nozzle Ring Assemble	NEW IN STOCK
Repair Kit	NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Electronic Actuator	4034289H (12V) Reman $750.00 Exchange only
Electronic Actuator	4034290H (24V) Reman $750.00 Exchange only
Gasket (turbine inlet)	3088984
Gasket Kit	3685535
NOTE	Does not include actuator, Actuator it needs to be calibrated to the turbo

Applications

2006-14 turbocharger for Cummins (CTT) Industrial Crane with ISC, ISL, B3, B4, ISM Engine
