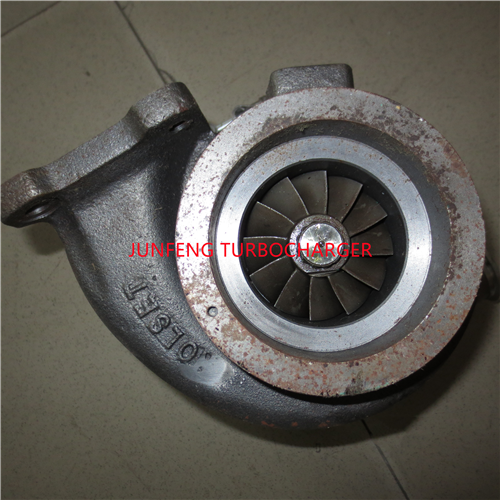

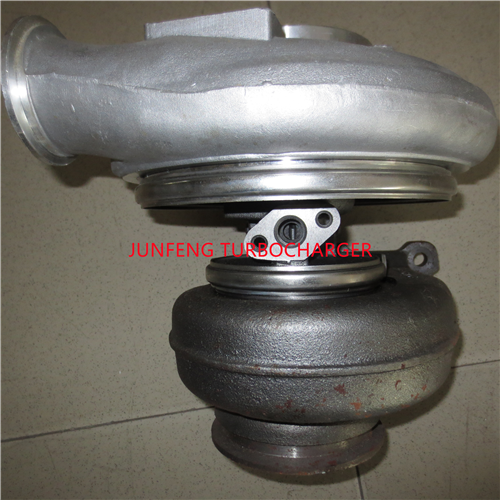

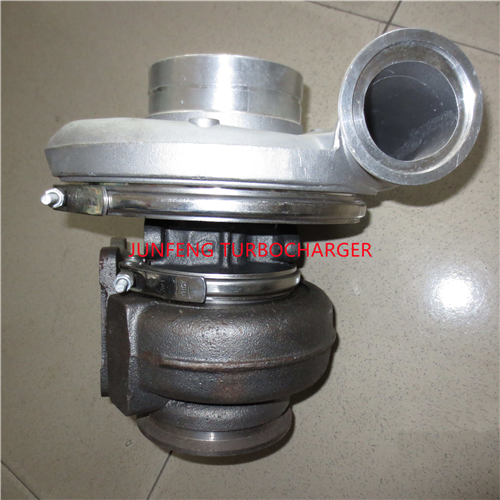

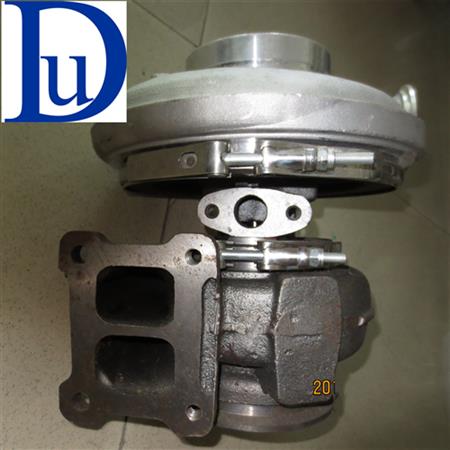

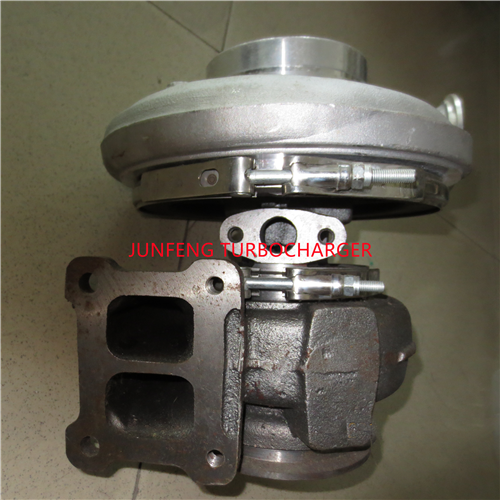

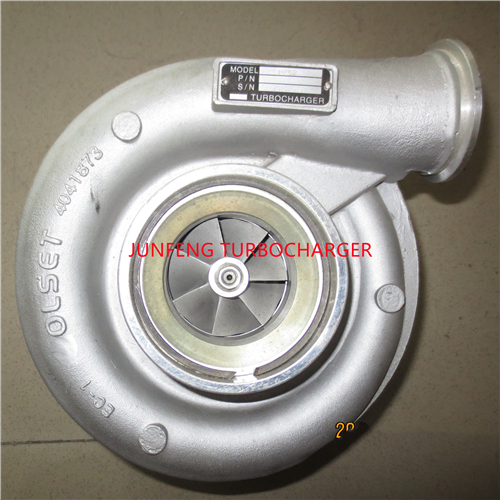

Scania Truck Bus DC12 HX55 Turbo 4038613 4038616D 4038616

4038617
Model : HX55-B98K68RV/A86J93NAE25NE, HX55
Part Number 4038616D 4038613D 4038617 4038613
Part NO.:3594236, 3594238, 3594239, 3597728, 3597729, 3597730, 4031122, 4031122H, 4031122HX
OEM: 570162, 570873, 571528, 608TN200112, 4038613-D
MOQ: 1PCS
condition: brand new
Fuel: diesel
OE number 10570162, 10571528, 10571548, 10571612, 1441521, 1443190, 1443191, 1484886, 1538372, 1538373, 1738373
CHRA 4031341 (4031341H)
Engine DC12 01/03/06, DC12-01, DC12-03, DC12-06, DC12-09, DC12-14

Product Detail

Product Description

Part Number	4038616D
Previous Version	3594236, 3594238, 3594239, 3597728, 3597729, 3597730, 4031122, 4031122H, 4031122HX, 4038613, 4038616, 4038617, 570162, 570873, 571528, 608TN200112, 4038613-D, 4038613D
OE number	10570162, 10571528, 10571548, 10571612, 1441521, 1443190, 1443191, 1484886, 1538372, 1538373, 1738373
Description	fits for Truck Bus, 124 Coach, Transit Bus, Truck (Class 3-8) Scania DC12
Manufacturer Part Number	3594239
CHRA	4031341 (4031341H)
Turbo Model	HX55-B98K68RV/A86J93NAE25NE, HX55
Engine	DC12 01/03/06, DC12-01, DC12-03, DC12-06, DC12-09, DC12-14
KW	309/420
Fuel	Diesel
Capacity	11700 ccm
Angle α (compressor housing)	177º
Angle β (turbine housing)	165º
Bearing Housing	4031479 (4038183)(Oil Cooled)(1900011276)
Turbine Wheel	3533543 (4038182)(Ind. 85.95 mm, Exd. 80.01 mm, Trm 12.92, 12 Blades)(1153055435, 1100016168)
Comp. Wheel	3593686 (Ind. 67. mm, Exd. 97.68 mm, Trm 6.3, 7+7 Blades, Superback)(1200016360)
Back plate	3528096 (1153055300, 1800016024)
Heat shield Number	3533038 (3529846)(1153055340, 2030016003)
Repair Kit	3575181 (3580762)(1153055750, 5000020023)
Gasket Kit	215496 (3545576, 201049, 3519763

Applications

1999-010 turbocharger for Scania Truck 124, Bus with DC12 01/03/06 Engine
