Product Detail
Product details
| Part Number | 53269886492 |
| Previous Version | 5326-988-6492, 5326 988 6492 |
| OE number | 845294, 3802033 |
| Year | 1980-03 |
| Description | Ship |
| Manufacturer Part Number | 5326-970-6492, 53269706492 |
| CHRA | 53267100021 (5326-710-0021) |
| Turbo Model | K26-2664GA12.71 |
| Engine | TAMD40, TAMD40A, TAMD40B, AQAD40A, AQAD40B |
| Displacement | 3.48L, 3480 ccm |
| KW | 120/163 HP |
| RPM Max | 3600 |
| Angle α (compressor housing) | 128° |
| Angle β (turbine housing) | 315° |
| Bearing Housing | 53261500014 |
| Turbine Wheel | 53261205002 (53261205001, 53261202107, 53261202119)(843998/845831/3581661)(Ind. 64.3 mm, Exd. 54.5 mm, 12 Blades)(1301026435) $192.00 NEW IN STOCK |
| Comp. Wheel | 53261232037 (53261232008, 53261232018) (Ind. 42. mm, Exd. 65.94 mm, 6+6 Blades) |
| Back plate | 53261515701 |
| Heat shield Number | 53261652001 |
| Repair Kit | 53267110001 (53267110039)(875632)(1301026751) |
| Turbine housing (water-cooled) | 53261006403 |
| Compressor Cover | 53261015020/53261015228 |
| Turbine Housing AR | 12 |
| Gasket (turbine inlet) | 210294 (Inox Steel) |
| Gasket oil inlet | 210023 (842943) Replaced by 859004 |
| Gasket (oil outlet) | 210060 (842986) |
| Gasket Kit | (1900100139) |
| NOTE | Inter cooler |

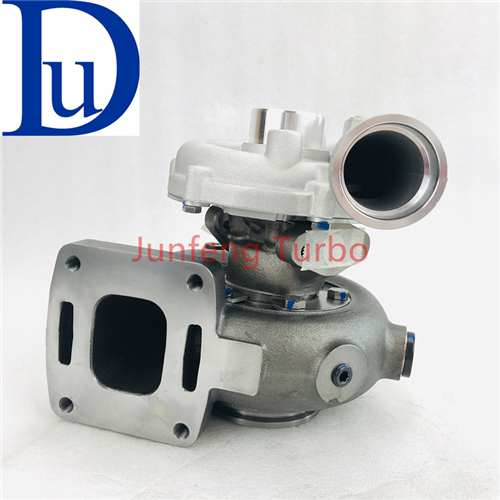

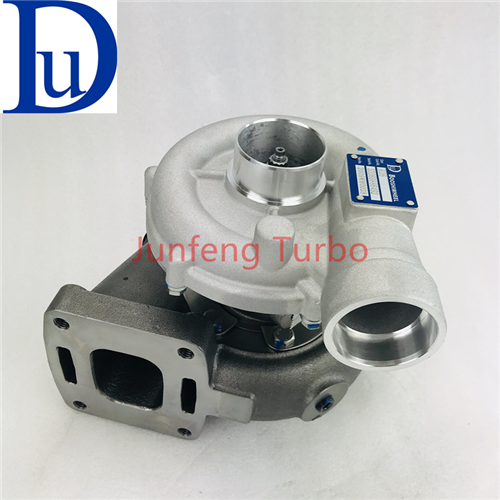

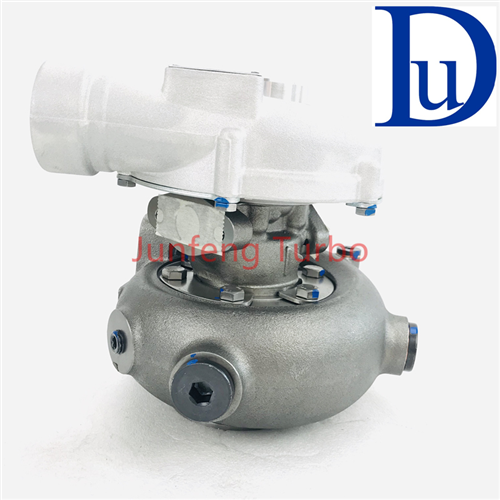

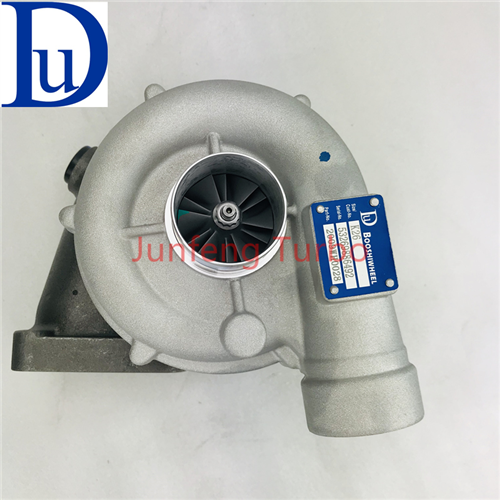

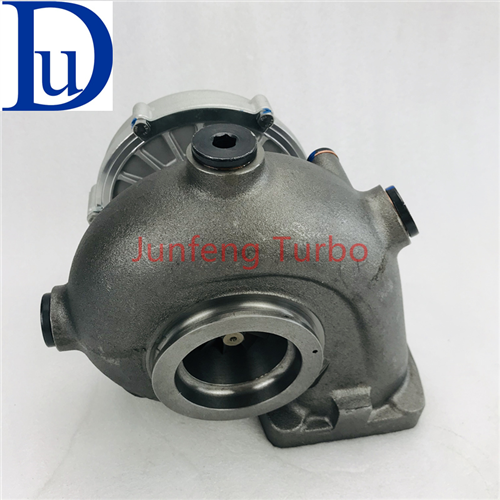

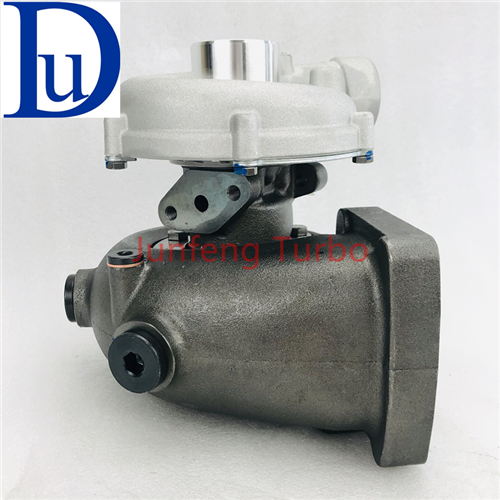

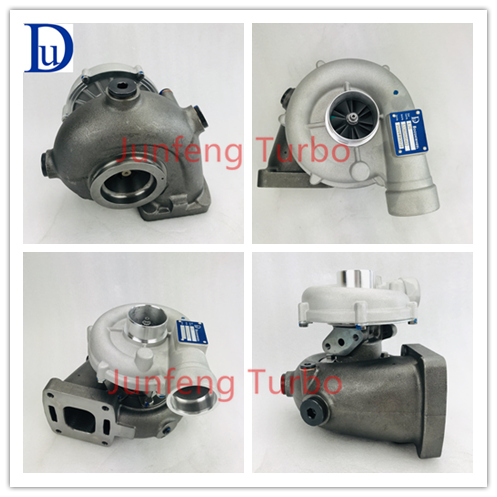

1980-03 turbocharger for Volvo Penta Ship with TAMD40 Engine
