Product Detail
Product Description
| Part Number | 53319886701 |
| Previous Version | 5331-988-6701, 5331 988 6701 |
| OE number | 51091007638, 51.09100-7579, 51.09100-75797, 51.09100-7396, 510910075797, 51091007396, 51.09100-7638 |
| Description | Ship |
| Manufacturer Part Number | 53319716701, 53319706701, 5331-971-6701, 5331-970-6701, 5331 970 6701 |
| CHRA | 53317100004 (5331-710-0004) |
| Turbo Model | K31-3767OOAKB9.71RYAXB |
| Engine | D0836LE401, D2848LE403 |
| Displacement | 6.87/14.62L, 6870/14620 ccm |
| KW | 331/450/588/800 |
| RPM | 2600 |
| Fuel | Diesel |
| Angle α (compressor housing) | 315° |
| Angle β (turbine housing) | 100° |
| Bearing Housing | 53311500004 (Oil cooled)(1900011255) |
| Turbine Wheel | 53311205015 (53311205005, 53311205025)(Ind. 71.96 mm, Exd. 85.73 mm, 12 Blades) |
| Comp. Wheel | 53311232004 (53311232014)(Ind. 63.6 mm, Exd. 94.92 mm, Trm 12.6, 7+7 Blades, Superback) |
| Back plate | 53291523001 (53291523003) |
| Heat shield Number | 53311652001 (206310001) |
| Repair Kit | 53317110005 (53317110003)(1301031750) |
| Turbine Housing (water-cooled) | 53311006400 |
| Compressor Cover | 53331013003 |
| Turbine Housing AR | 9 |
| Gasket (turbine inlet) | 210294 (Inox Steel) |
| Gasket (turbine Outlet) | 210652 (Inox Steel) |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 201048, 129120, 210018-0000, 210060-0000, 1S4810, 51914, 148062, 9738, 9988, 3519763, 3500682, 3709738, 311585)(1900000025) |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585, 860105) |
| NOTE | Intercooler, restricted to Daimler Chrysler |

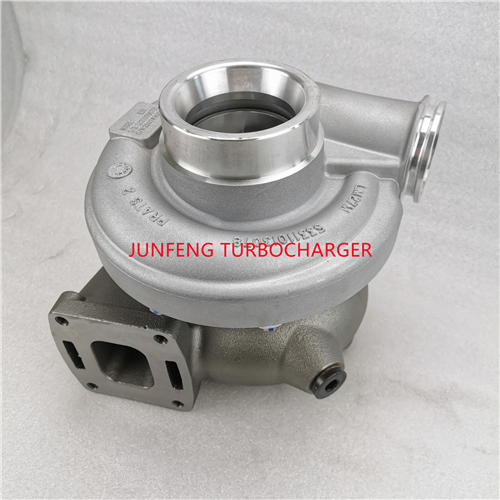

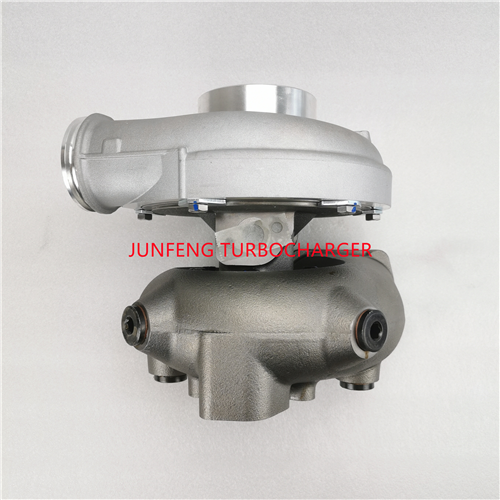

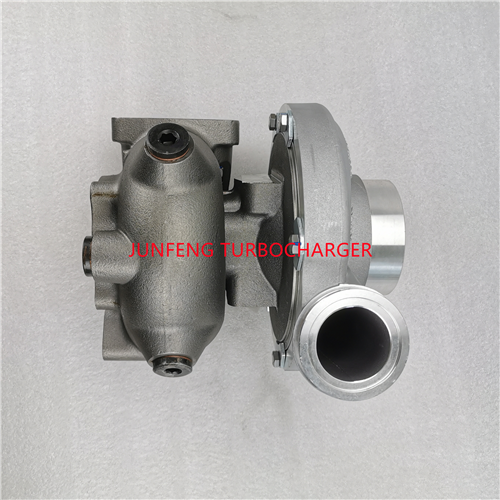

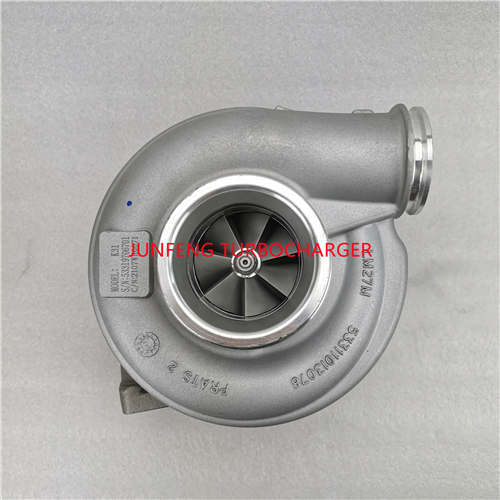

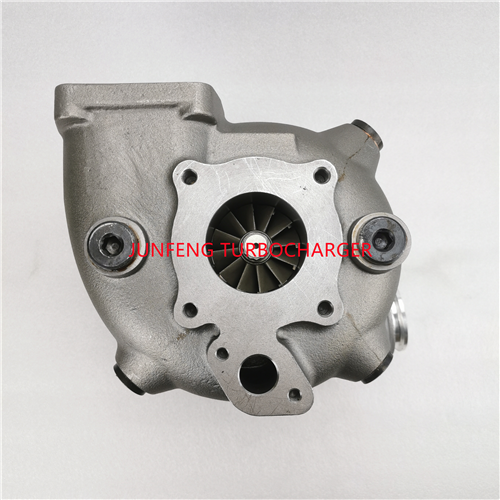

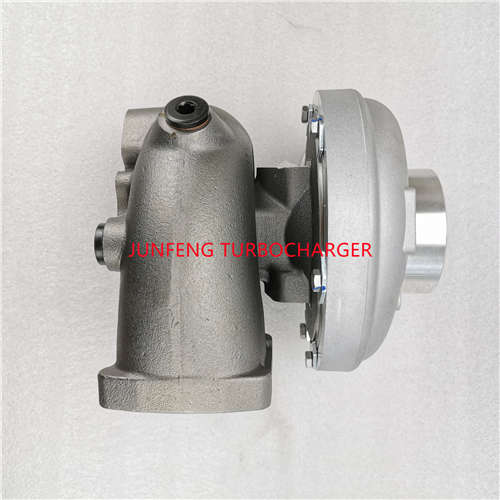

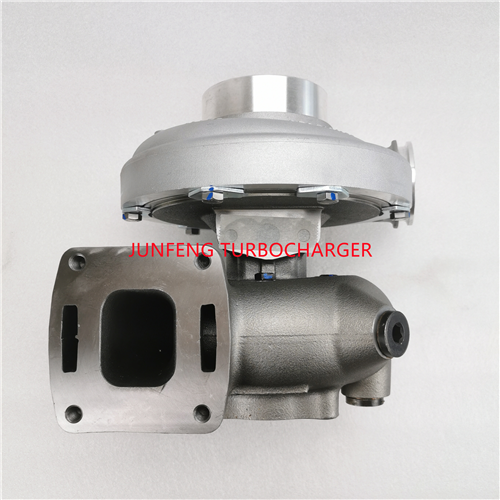

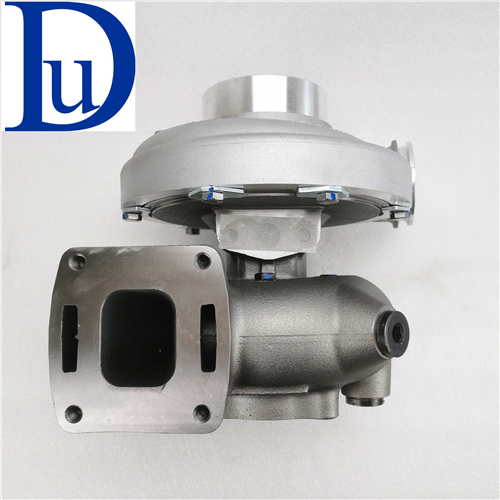

1998-12 turbocharger for MAN Ship with D0836LE401, D2848LE403 Engine
