Product Detail
| Part Number | 53339886422 |
| Previous Part Number | 5333-988-6422, 5333 988 6422, |
| Comparison Part Number | 53339886419, 53339886420, 53339886423, 53339886424, 53339886425, 53339886426, 53339886427 |
| OE number | 0060960799, 0050965499, 0050965599, 50965499, 50965599, 60960799, 20207300, 0020207300, 0020207400, 20207400, 60960899, 0060960899, 0060960999, 60960999, 0060961099, 60961099, 0060961099 |
| Description | Industrial Locomotive Engine |
| Manufacturer Part Number | 53339706422, 5333-970-6422, 5333 970 6422, 53339706419, 53339706420, 53339706423, 53339706424, 53339706425, 53339706426, 53339706427 |
| CHRA | 53337100026 (5333-710-0026) |
| Turbo Model | K33.2-4064MNAAA20.22GNAYD, K33.2-4064MNA20.22GNAYD |
| Engine | 12V183TD13 |
| Displacement | 21.96L, 21960 ccm |
| KW | 550/748 |
| Fuel | Diesel |
| Engine Speed | 2100 |
| Angle α (compressor housing) | 238.5° |
| Angle β (turbine housing) | 0° |
| Bearing Housing (water-cooled) | 53331500005 (53331500011)(Oil Cooled) |
| Turbine Wheel | 53331205004 (53331202112) |
| Comp. Wheel | 53361232021 (Ind. 63.9 mm, Exd. 102. mm, Trm 4064, 7+7 Blades) (1301033400) |
| Back plate | 53361515713 (53361515710) |
| Heat shield Number | 53331652000 (Cast)(1301036340) |
| Repair Kit | 53337110006 (1301033750)(Small Brg) |
| Turbine Housing | 53331016525 |
| Compressor Cover | 53361015206 |
| Turbine Housing AR | 20 |
| Gasket (oil inlet) | 52231586500 |
| NOTE | Intercooler |

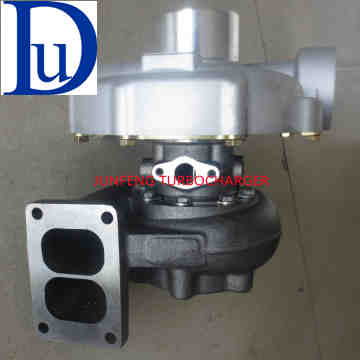

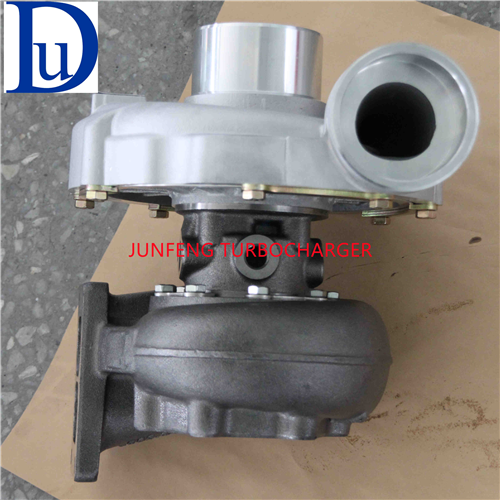

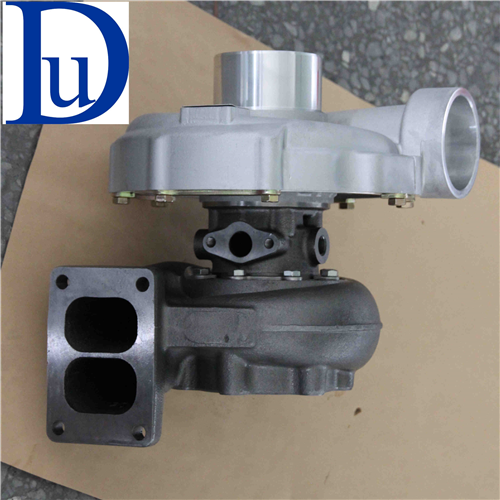

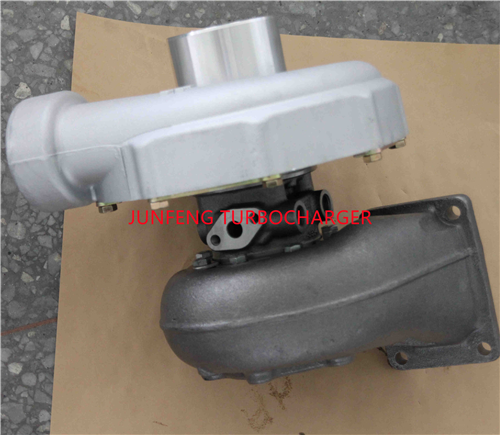

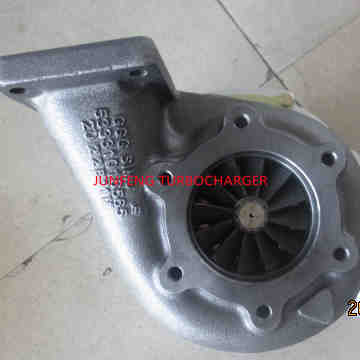

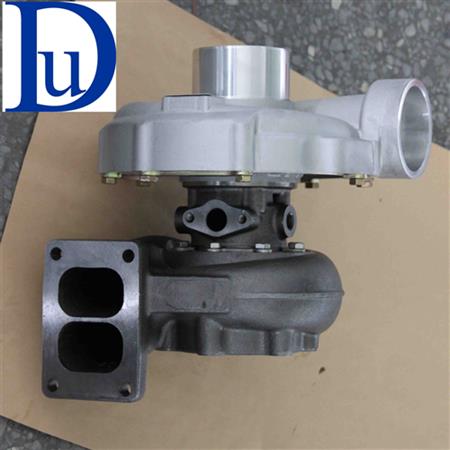

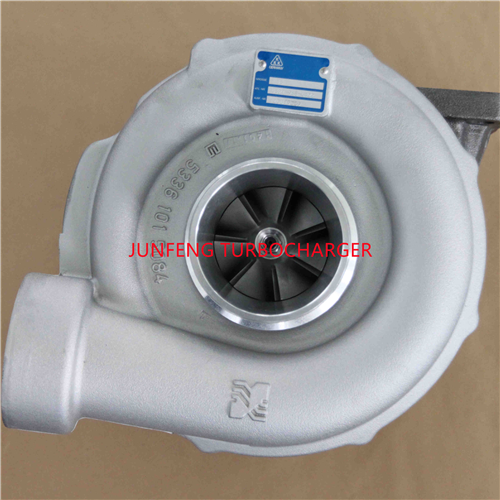

1993-07 turbocharger for MTU Industrial Locomotive with 12V183TD13 Engine
