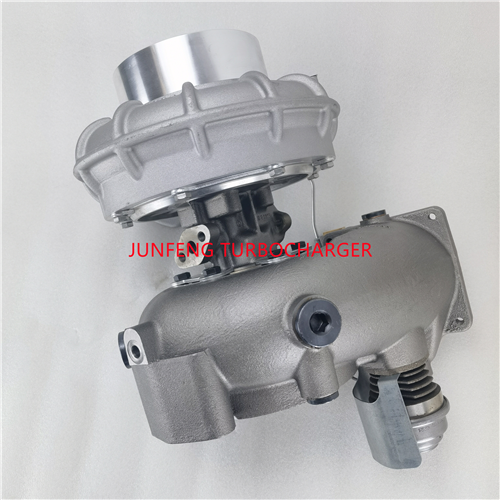

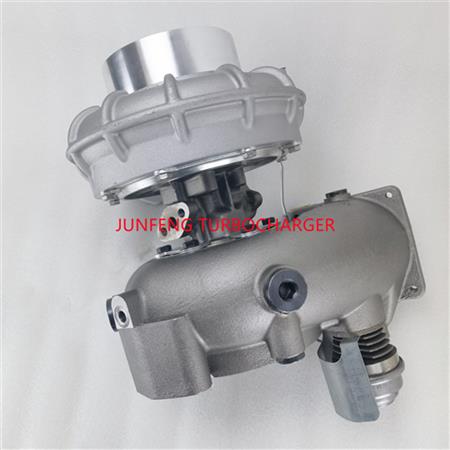

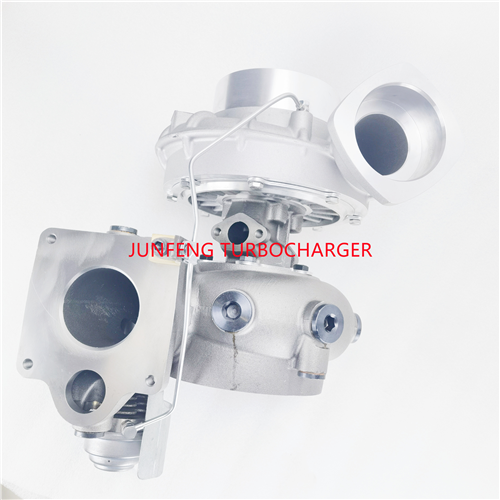

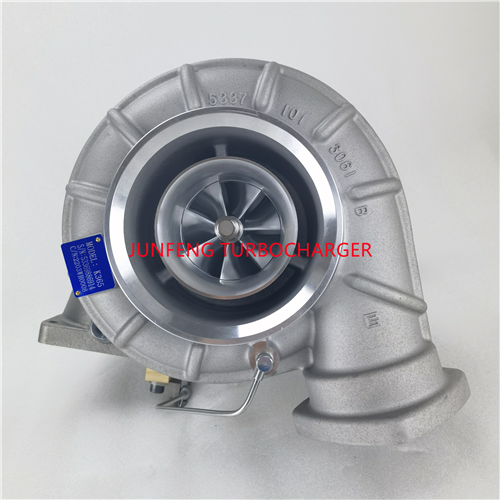

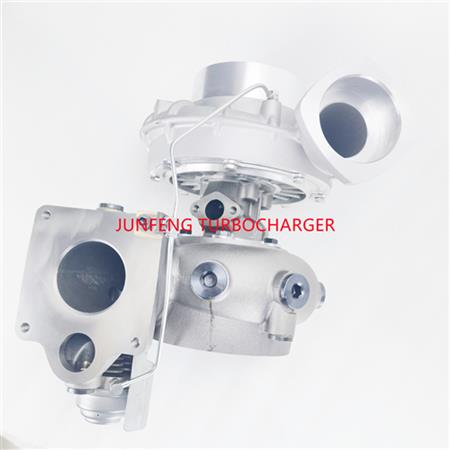

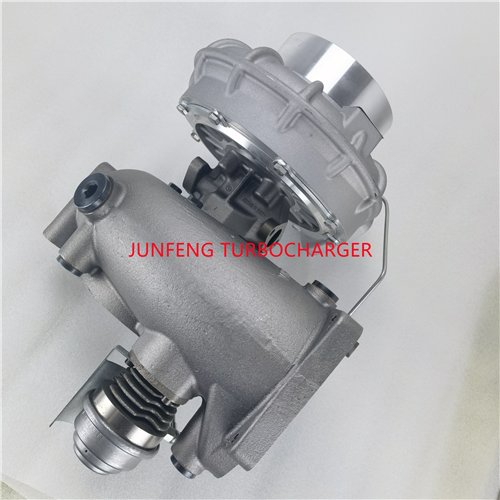

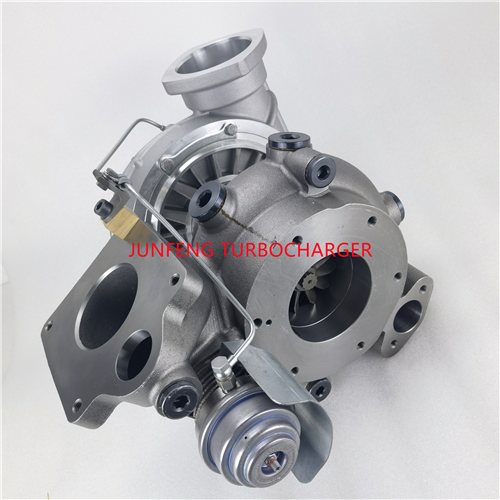

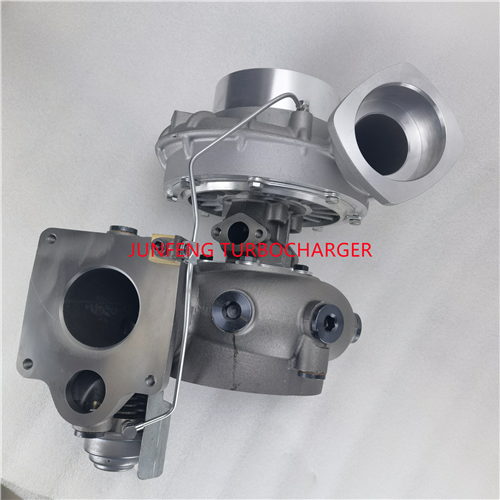

K365 53369706914 53369886914 0080960299 80960299 turbocharger for MTU Ship 24.0L 12V2000M91 engine

53369706914
MOQ : 1PCS
Model: K365
Part NO.: 53369706914 53369886914 53369706913 53369886913 53369706917 53369886917
Displacement 24.0L
PRE-VERSION PN; 5336-988-6914, 5336 988 6914 53369706918 53369886918
ENGINE: 12V2000M91 12V183TE94
YEAR: 2001-02
OEM: 0080960299, 80960299
KW 1119/1521
Condition: brand new

Product Detail

Turbo Details

Part Number	53369886914
Previous Version	5336-988-6914, 5336 988 6914
OE number	0080960299, 80960299
Year	2001-02
Manufacturer Part Number	53369706914, 5336-970-6914
CHRA	N/A
Turbo Model	K365-4669OODKB18.62GAAXB
Engine	12V2000M91
Displacement	24.0L, 2400 ccm
KW	1119/1521
RPM Max	2350
Fuel	Diesel
Angle α (compressor housing)	51°
Angle β (turbine housing)	18°
Bearing Housing	53361500008 $859.21
Turbine Wheel	53361205004
Comp. Wheel (milled aluminium)	53371232031
Back plate	53371515719
Heat shield Number	53361652003
Repair Kit	N/A
Turbine Housing	53361007405
Compressor Cover	53371003015
Turbine Housing AR	18
Waste gate valve	58061100221
Settings Waste gate (pressure)	2 65 bar
Settings Waste gate (lift shaft)	1.40 mm
NOTE	Inter-cooler
Manufacturer	Booshiwheel

Applications

2002-06 turbocharger used for MTU Ship with 12V183TE94 USA Engine

2001-02 turbocharger used for MTU-DDC Ship with 12V2000M91
