Product Detail

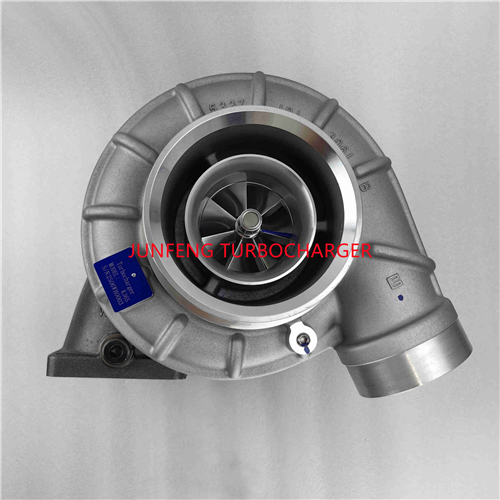

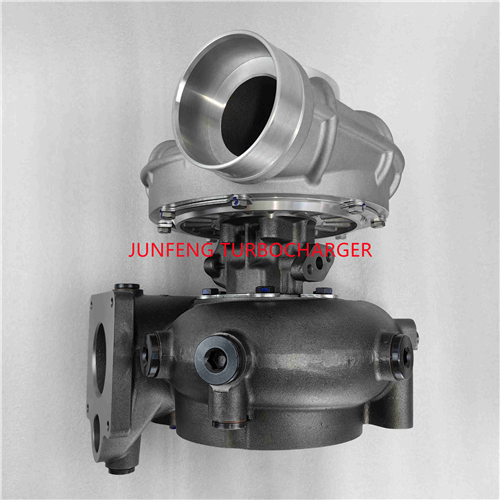

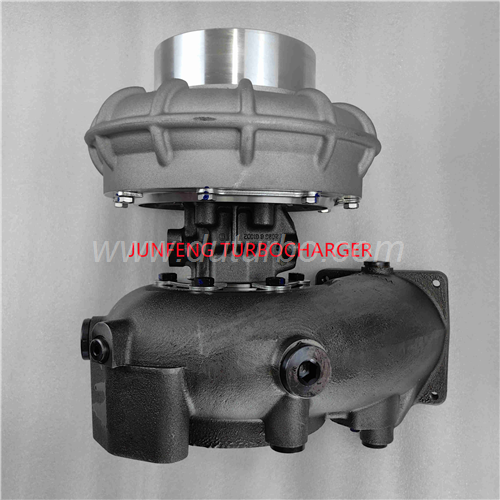

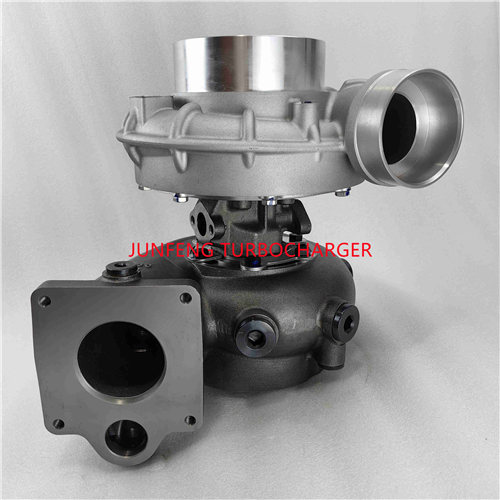

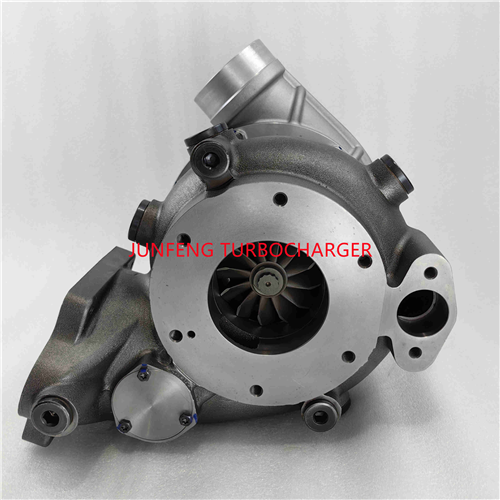

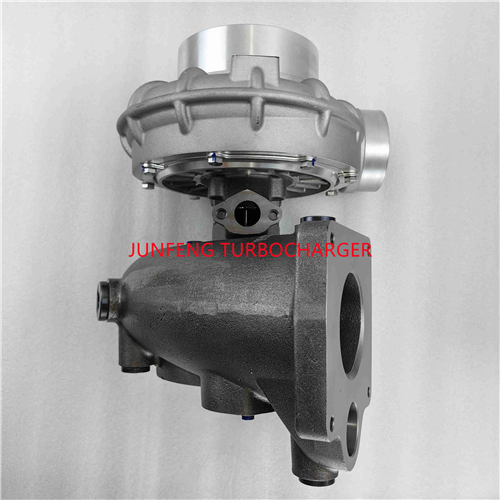

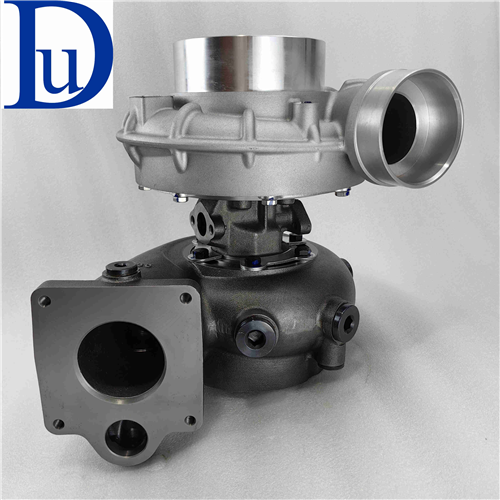

Turbo Details
| Part Number | 53369886916 |
| Previous Version | 5336-988-6916, 5336 988 6916 |
| OE number | 0080966299, 0080966399, 80966299, 80966399 |
| Year | 2002-06 |
| Description | MTU Ship |
| Manufacturer Part Number | 53369706916, 5336-970-6916 |
| CHRA | ORDER ACCEPTABLE |
| Turbo Model | K365-4669OOAKF18.72GAAXC |
| Engine | 12V183TE94 USA |
| Engine Manufacturer | MTU |
| Displacement | 21.93L, 21930 ccm |
| KW | 956/1300 |
| RPM Max | 2400 |
| Fuel | Diesel |
| Angle α (compressor housing) | 224° |
| Angle β (turbine housing) | 21° |
| Bearing Housing | 53361500008 (Oil Cooled) |
| Turbine Wheel | 53361205004 (Ind. 60.58 mm, Exd. 69.49 mm, Trm 11.88, 10 Blades) |
| Comp. Wheel | 53371232033 |
| Back plate | 53371515719 |
| Heat shield Number | 53421652002 |
| Repair Kit | 53337110015 |
| Turbine Housing | 53371003016 |
| NOTE | Inter-cooler, left side; with separate waste gate 58061101215 |
2002-06 turbocharger used for MTU Ship with 12V183TE94 USA Engine
