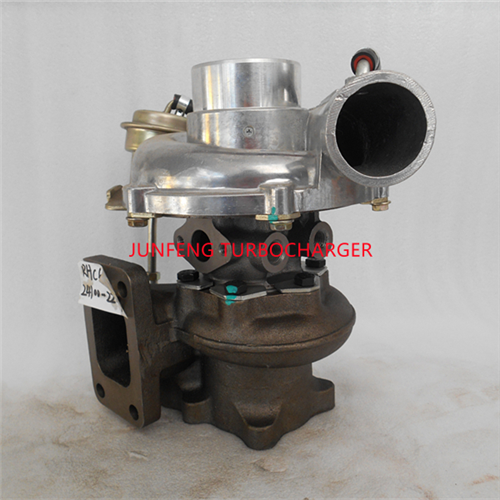

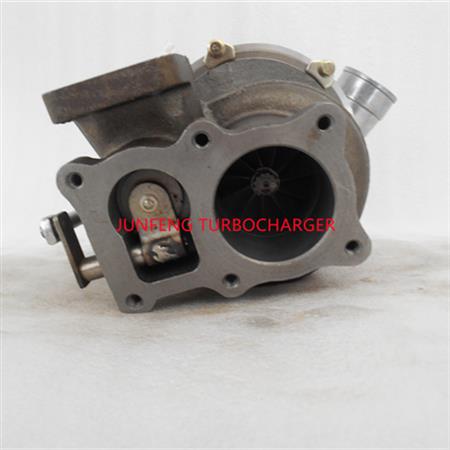

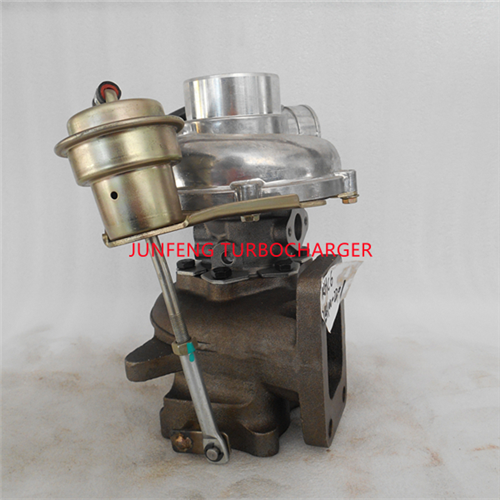

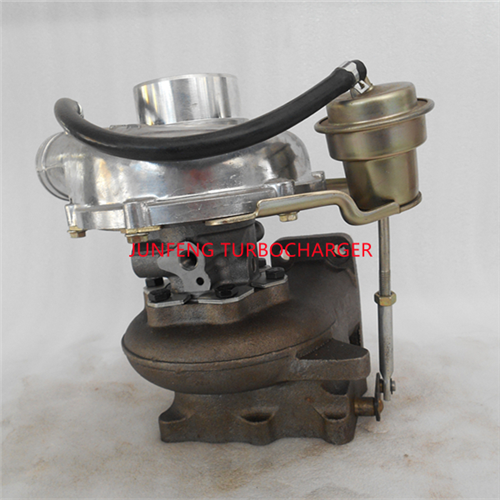

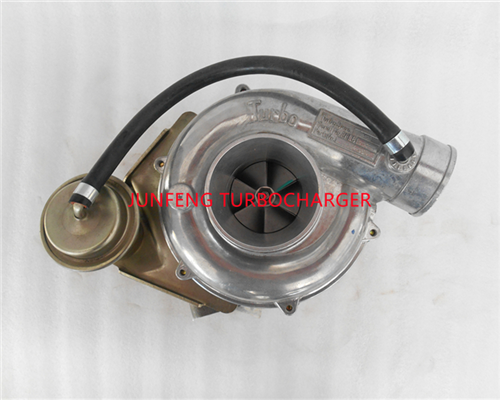

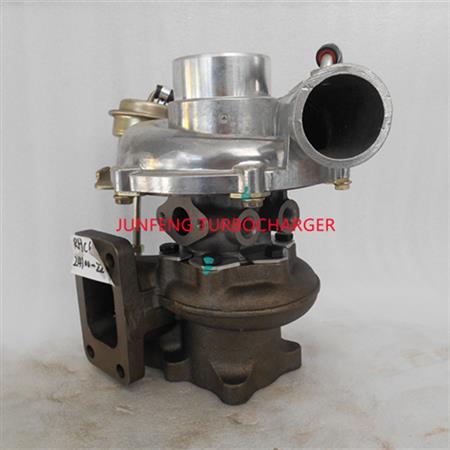

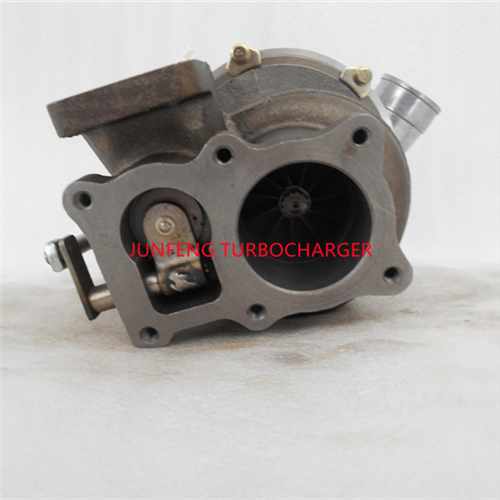

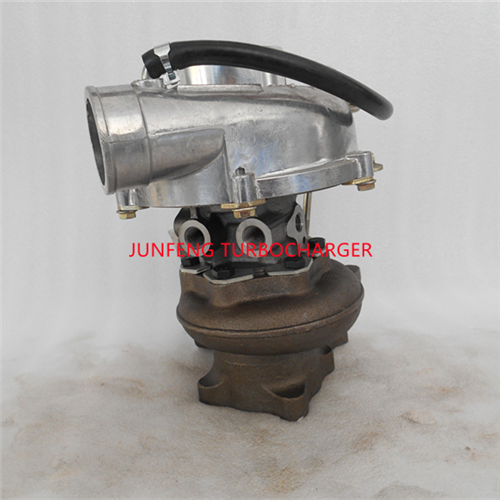

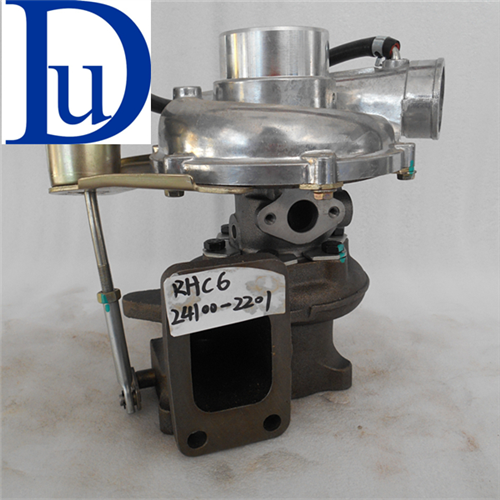

Hino Truck H07C-T(YF20) engine RHC62W Turbo VA240039 VX53 24100-2203A 24100-2201A

24100-2203A
Model : RHC6 RHC62W RHC62W-1183P20NABRLL5213CHBZ
part number : VA240039 VB240039, VC240039, VD240039, VG240039, VH240039
Previous Version C61CAD-S0039B, C61CAD-S0039G, C61CADS0039B, C61CADS0039G, S241002203
V-Spec. VX53, VX54
CHRA VA850013 (C61CAD-S0039C, C61CADS0039C)(1000040140)
OE number 241002203A, 24100-2203A, 6T-574, 6T574, 24100-2204A, 24100-2201A-B, 24100-2214A, 24100-2204A
ENGINE Model YF20 H07C-T(YF20), H07CT
Fuel Diesel
Applications Hino Truck H07CT with H07C-T(YF20) Engine

Product Detail

Product Description

Part Number	VA240039
Previous Version	VB240039, VC240039, VD240039, VG240039, VH240039
OE number	241002203A, 24100-2203A, 6T-574, 6T574, 24100-2204A, 24100-2201A-B, 24100-2214A, 24100-2204A, C61CAD-S0039B, C61CAD-S0039G, C61CADS0039B, C61CADS0039G, S241002203
V-Spec.	VX53, VX54
Description	Truck
CHRA	VA850013 (C61CAD-S0039C, C61CADS0039C)(1000040140)
Turbo Model	RHC62W-1183P20NABRLL5213CHBZ
Model	H07C-T(YF20), H07CT
Engine	YF20
Manufacturer	booshiwheel
Fuel	Diesel
Angle α (compressor housing)	115°
Angle β (turbine housing)	77°
Bearing Housing	(Water Cooled)(1900011329)
Turbine Wheel	(Ind. 61.97 mm, Exd. 57.27 mm, Trm 11.5, 11 Blades)(1100016315)
Comp. Wheel	NH265520 (170268)(NH2655207)(Ind. 51.3 mm, Exd. 69.97 mm, Trm 6.14, 6+6 Blades, Superback)(1200016129)
Back plate	(1800016042B)
Heat shield Number	(171056)(2030016093)
Repair Kit	NH169843 (509T-538)(5000080050)
Turbine Housing AR	17

Applications

turbocharger for Hino Truck H07CT with H07C-T(YF20) Engine
