  3. Yanmar Marine 6LYM-STE 6LY-STE 6LY-SIE engine MYBN MYAN MYBNE MYANE turbo 119593-18020 RHC7W 7T-547
  • Yanmar Marine 6LYM-STE turbocharger RHC7W 119593-18020 MYBN MYAN MYBNE

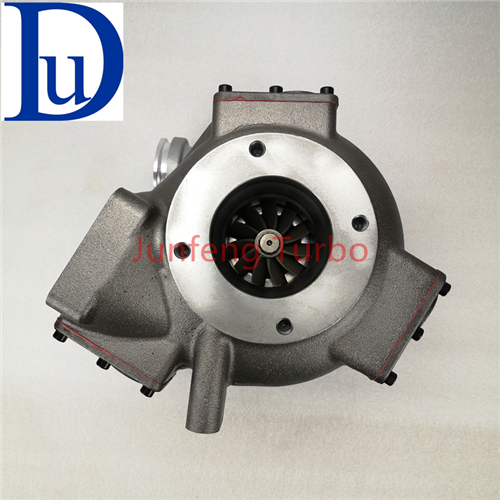

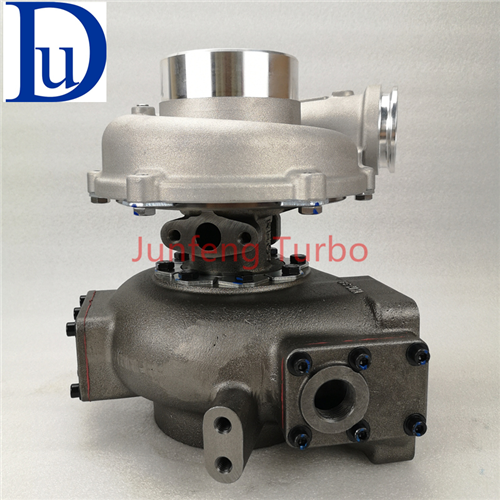

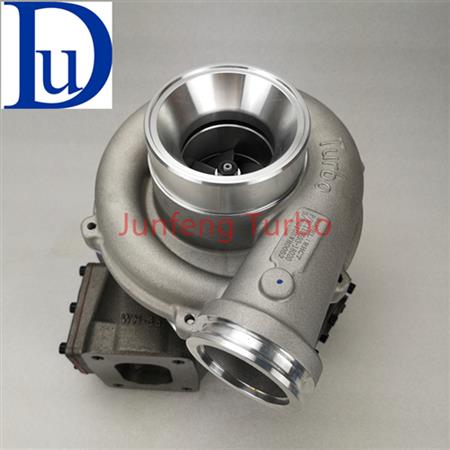

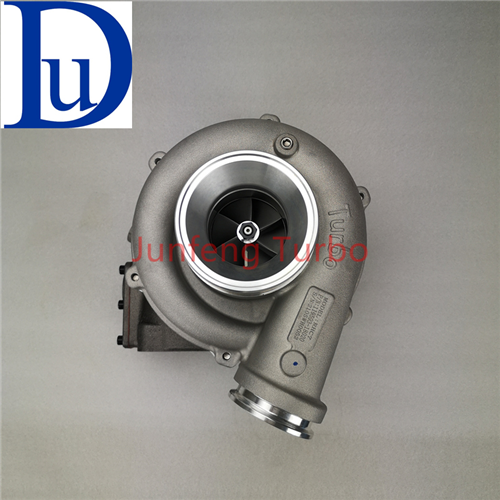

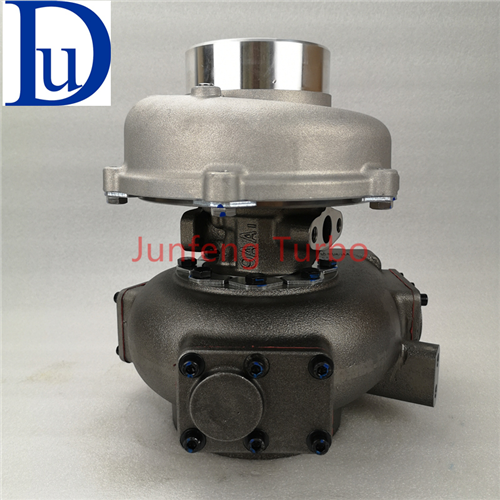

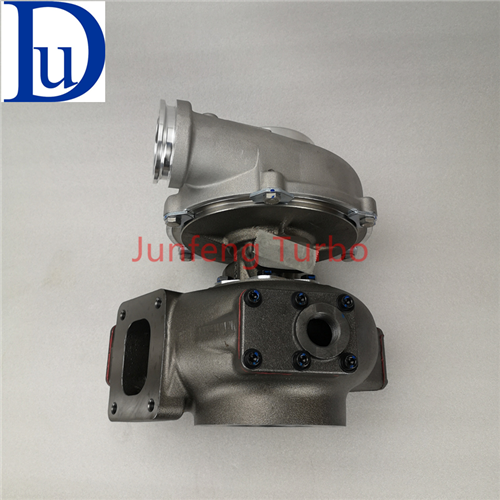

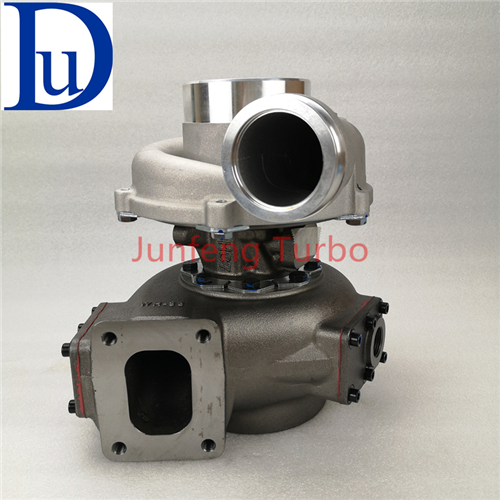

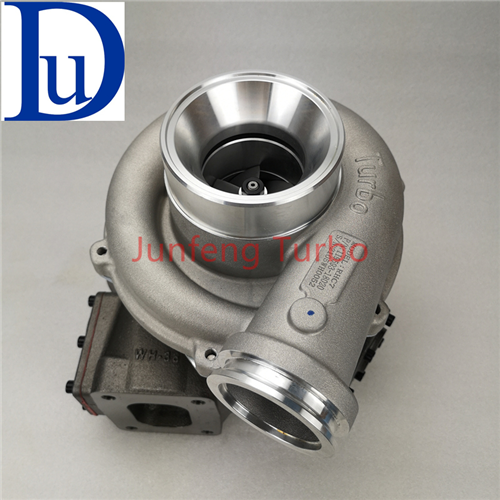

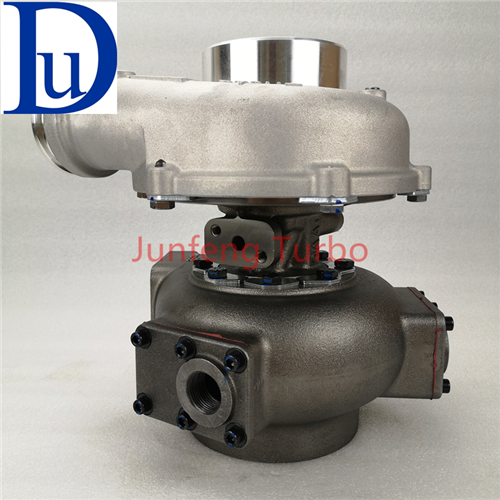

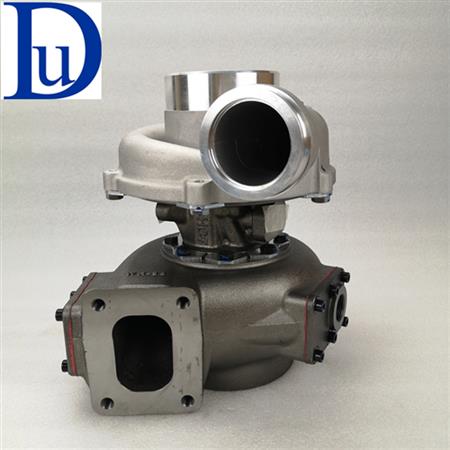

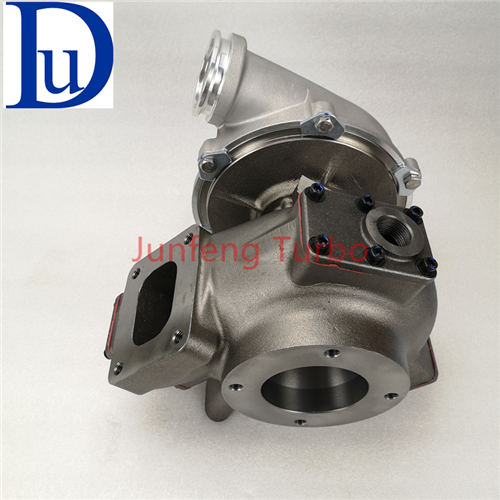

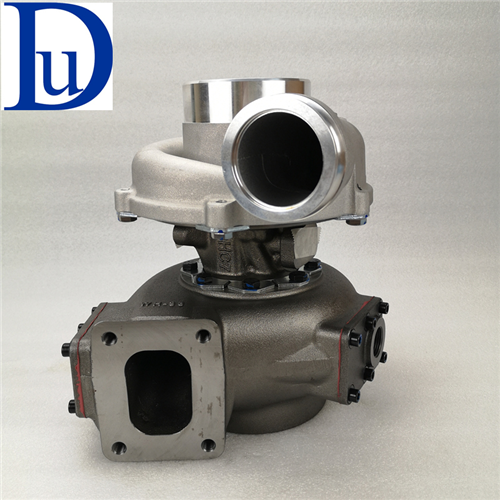

Yanmar Marine 6LYM-STE 6LY-STE 6LY-SIE engine MYBN MYAN MYBNE MYANE turbo 119593-18020 RHC7W 7T-547

  • 119593-18020 RHC7W
  • Model : RHC7W
  • part number :11959318023, 11959318022, 11959318021 11959318020 11959318024
  • Part NO.: 119593-18023, 119593-18022, 119593-18021 119593-18020 119593-18024
  • OE numbers:7T-547 7T547
  • v-spec. MYBN, MYAN, MYBNE
  • Turbo Model RHC7W-12507P22NWBRB6136SUC
  • Engine 6LYM-STE, 6LY-STE, 6LY-SIE
  • Displacement 5183 ccm , 4 Cylinders
  • Power 350 HP
  • Replaced By VA290024, MYANE VB290024 VC290024 VD290024

Product Detail

Product details

Part Number VD290024
Previous versions VB290024, VC290024, VD290024
OE number 11959318023, 11959318022, 11959318021 11959318020 11959318024, 119593-18023, 119593-18022, 119593-18021 119593-18020 119593-18024, 7T-547
IHI Part Number 7T-547
IHI Short spec. MYBN, MYAN, MYBNE
Description Marine
CHRA N/A
Turbo Model RHC7W-12507P22NWBRB6136SUC
Engine 6LYM-STE, 6LY-STE, 6LY-SIE
Displacement 5183 ccm , 4 Cylinders
Power 350 HP
Fuel Diesel
Angle α (compressor housing) 90°
Angle β (turbine housing) 65°
Bearing Housing NH173425
Turbine Wheel NH271343
Comp. Wheel NH175902
Repair Kit NH179874 (509T-533, 509T-534, NN179810)
Turbine Housing (Water-Cooled) NH178390
Compressor Cover NH174825
Turbine Housing AR 22
Silencer 119593-18870/119593-18871
Compressor Cover 119593-18070
Gasket (turbine inlet) 119593-18080
Gasket (turbine inlet) 119593-18110
Gasket (turbine outlet) 119593-13250
Replaced By VA290024, MYANE


Applications

1994-97 turbocharger for Yanmar Marine with 6LYM-STE, 6LY-STE Engine
