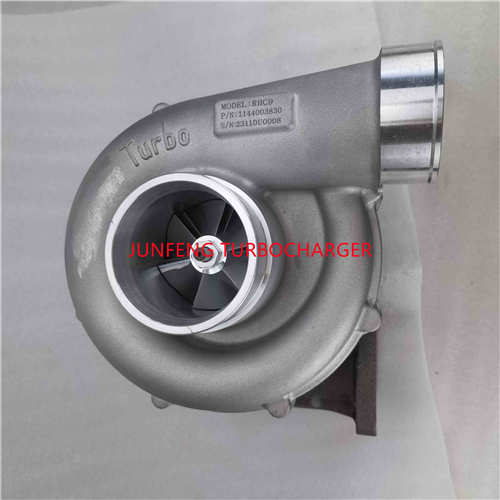

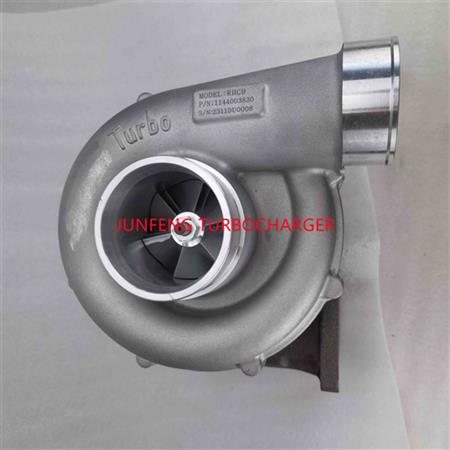

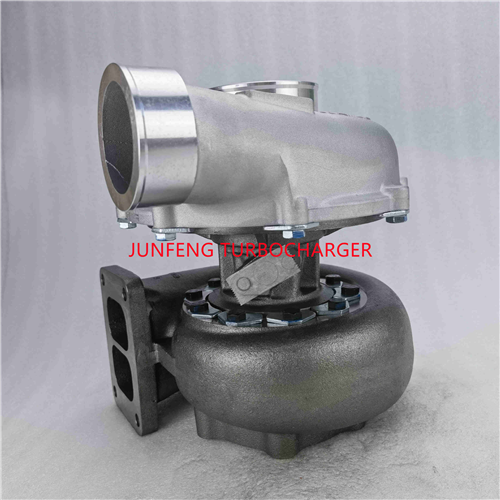

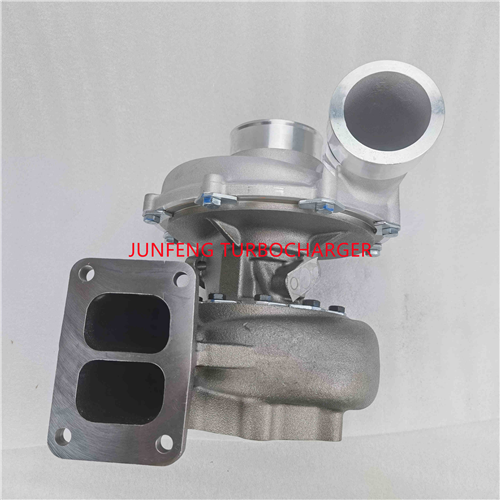

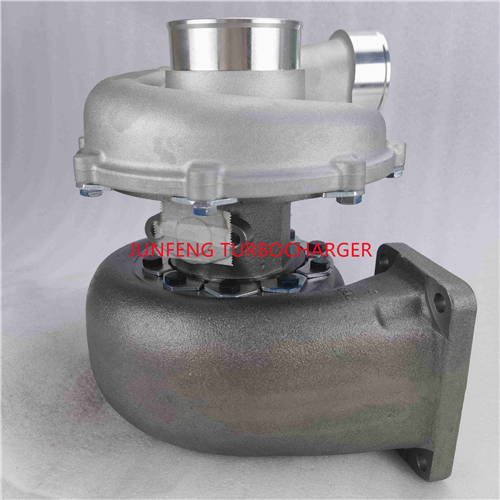

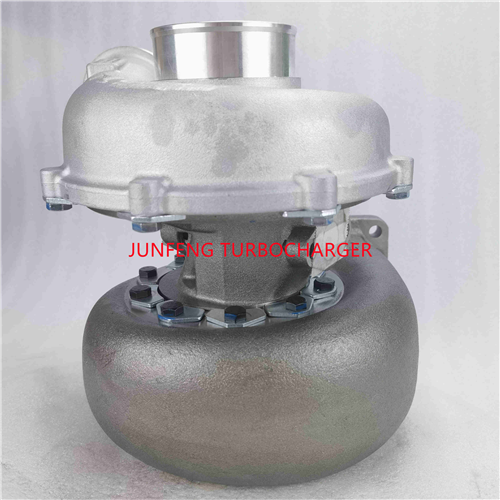

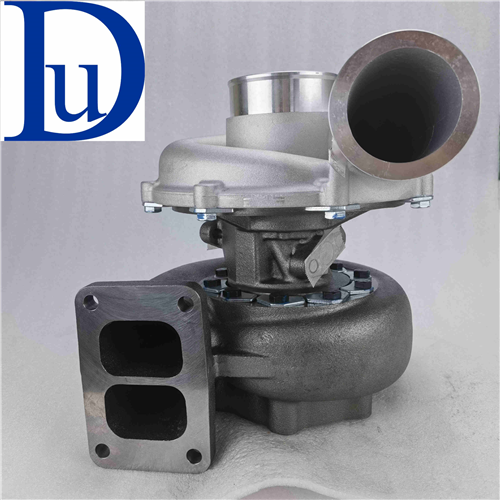

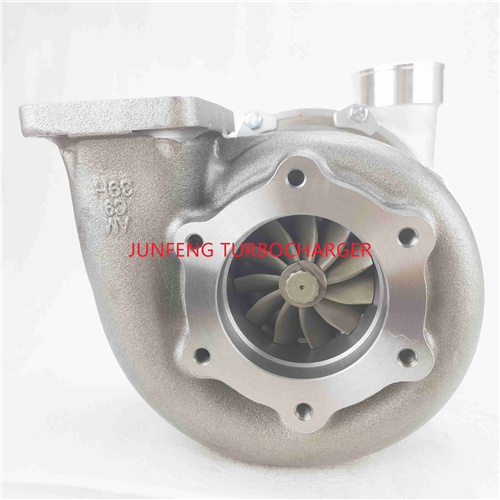

2001- Isuzu Offway Excavator RHC92 Turbo VA300018 CIDD 114400-3830 1-14400-383-0 C92CND-S0018B

114400-3830
Model : RHC92 RHC92-175Q39NHBRL7515CC
Part Number V-300018, V300018, VA300018, VB300018, VC300018, VD300018
OE number 114400-3830, 1144003830, 11440-03830, 1-14400-3830, 1-14400-383-0, C92CND-S0018B, C92CND-S0018G, C92CNDS0018B, C92CNDS0018G
V-Spec. CIDD
CHRA VAX300018
Engine 6WG1T
Fuel Diesel
Application Hitachi ZX450, Zaxis Excavator with 6WG1T Engine
Applications 2001- Isuzu Off-way Excavator, Earth Moving with 6WG1T Engine
Repair Kit NH199814 (NH299805)(509T548)(2445298, 2445049) $

Product Detail

Part Number	VA300018
Previous Part Number	V-300018, V300018, VA300018, VB300018, VC300018, VD300018
OE number	114400-3830, 1144003830, 11440-03830, 1-14400-3830, 1-14400-383-0, C92CND-S0018B, C92CND-S0018G, C92CNDS0018B, C92CNDS0018G
V-Spec.	CIDD
Application	Isuzu, Hitachi ZAXIS 450 Off way Excavator
Description	Earth Moving, Off way Excavator
CHRA	VAX300018
Turbo Model	RHC92-175Q39NHBRL7515CC
Engine	6WG1T
Fuel	Diesel
Engine Manufacturer	Isuzu
Angle α (compressor housing)	52°
Angle β (turbine housing)	41°
Bearing Housing	NH293444 (Oil Cooled)
Turbine Wheel	NH291291
Comp. Wheel	NH295535 (Ind. 73.9 mm, Exd. 102.5 mm, 6+6 Blades, Super Back)
Back plate	NH292501
Heat shield Number	NH293307
Repair Kit	NH199814 (NH299805)(509T548)(2445298, 2445049)
Turbine Housing	NH198705
Compressor Cover	NH194836
Turbine Housing AR	39
Gasket (turbine inlet)	132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003)
Gasket (oil outlet)	129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
Gasket (oil outlet)	210018 (129120, 157602, 201048, 3037537, 3519763, 210018-0000)(1900000025)
